Dr-11A: Code 41, Testing Fuel Injectors

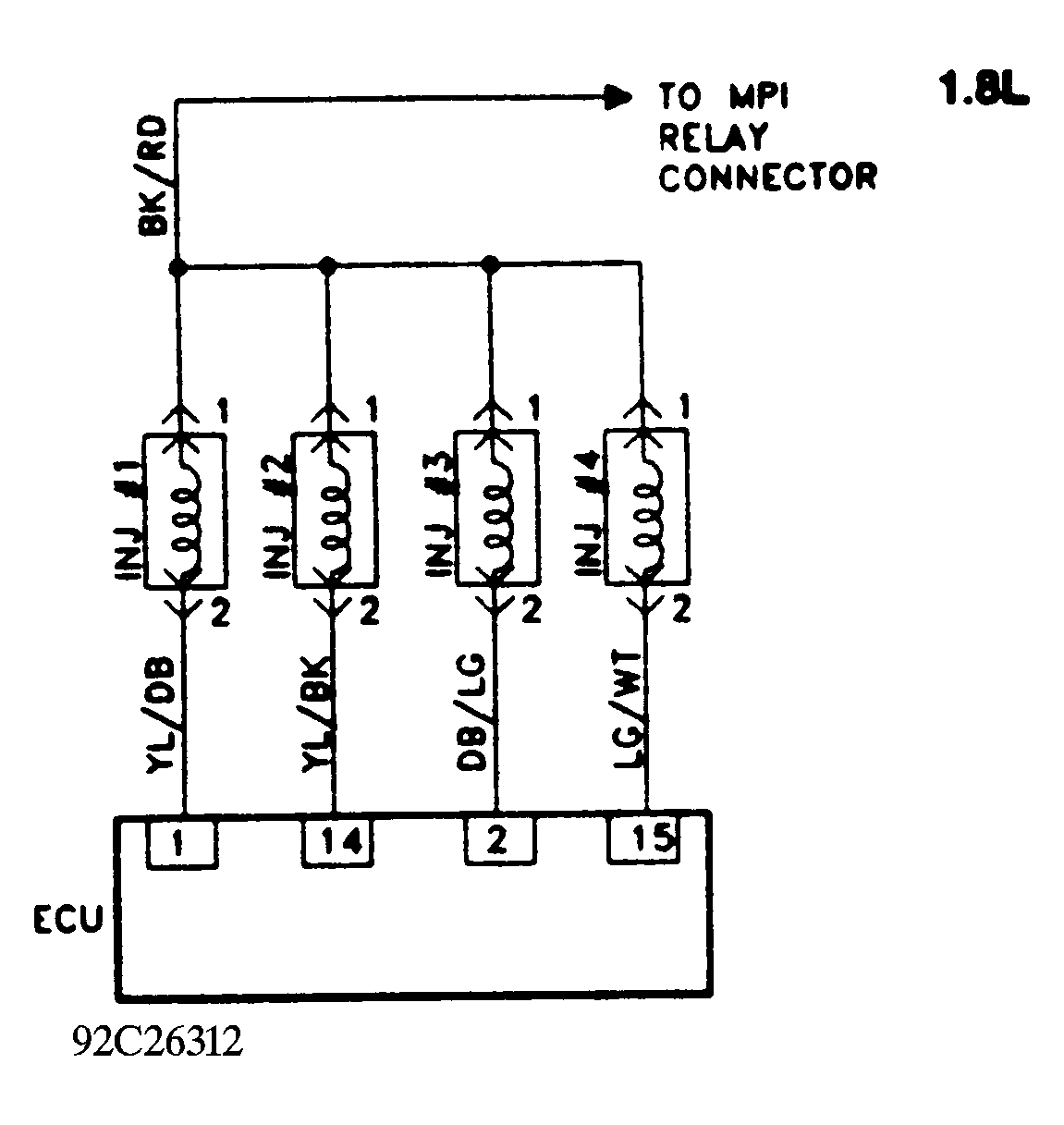

Fig 1: Test DR-11A Schematic (1.8L) - Code 41 Testing Fuel Injectors

Fig 2: Test DR-11A Schematic (2.4L) - Code 41 Testing Fuel Injectors

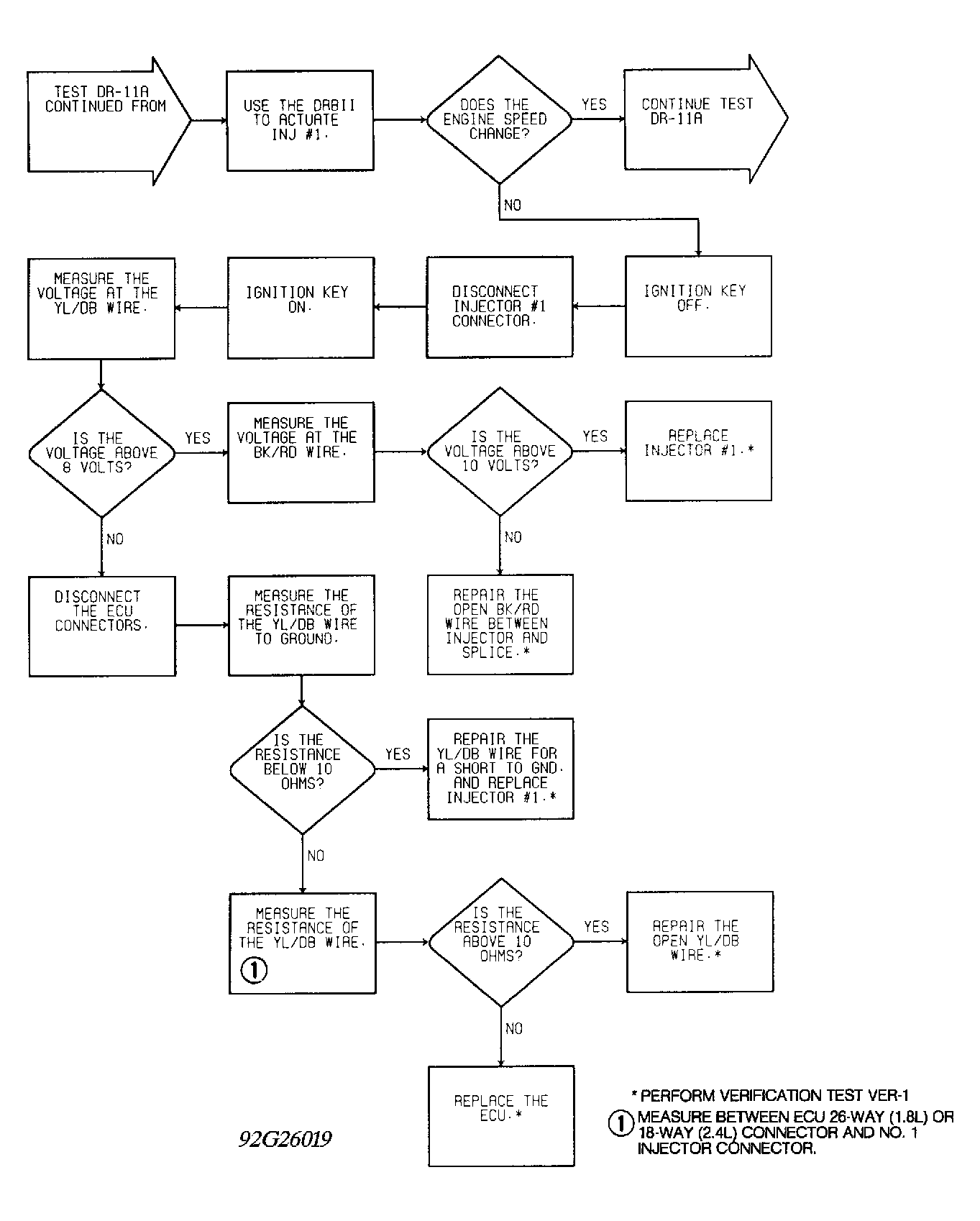

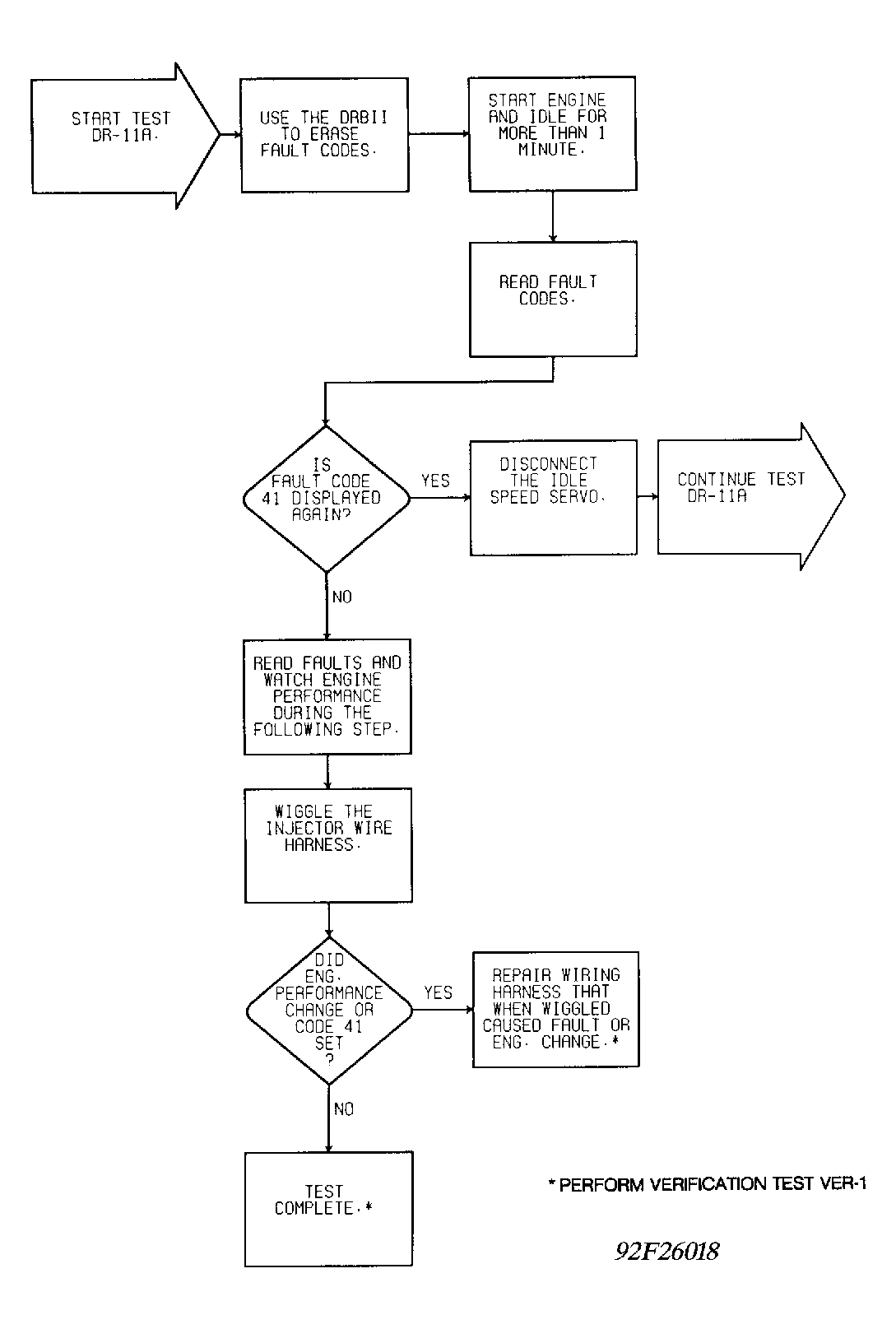

Fig 3: Test DR-11A Flow Chart - Code 41 (1 Of 5) Testing Fuel Injectors

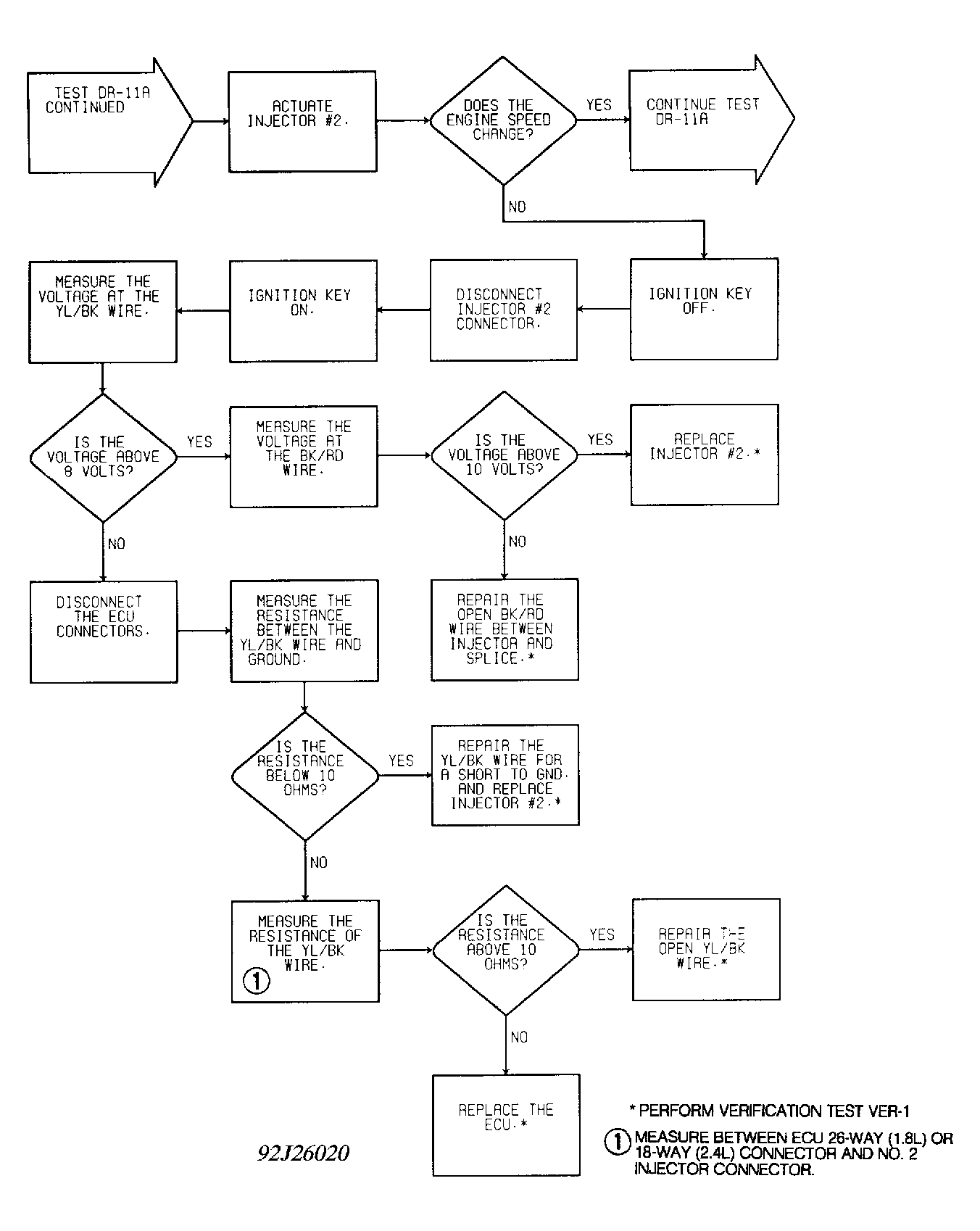

Fig 4: Test DR-11A Flow Chart - Code 41 (2 Of 5) Testing Fuel Injectors

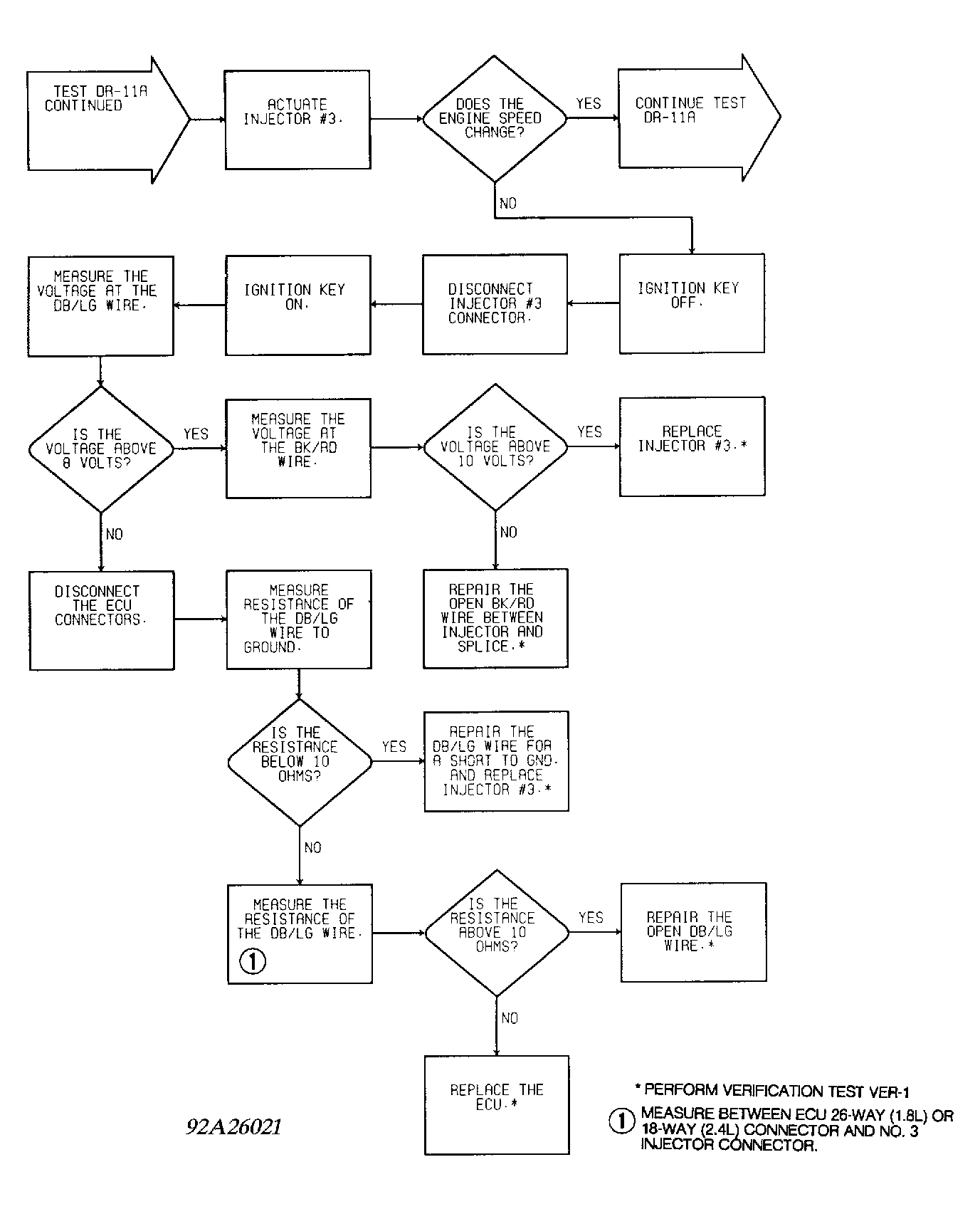

Fig 5: Test DR-11A Flow Chart - Code 41 (3 Of 5) Testing Fuel Injectors

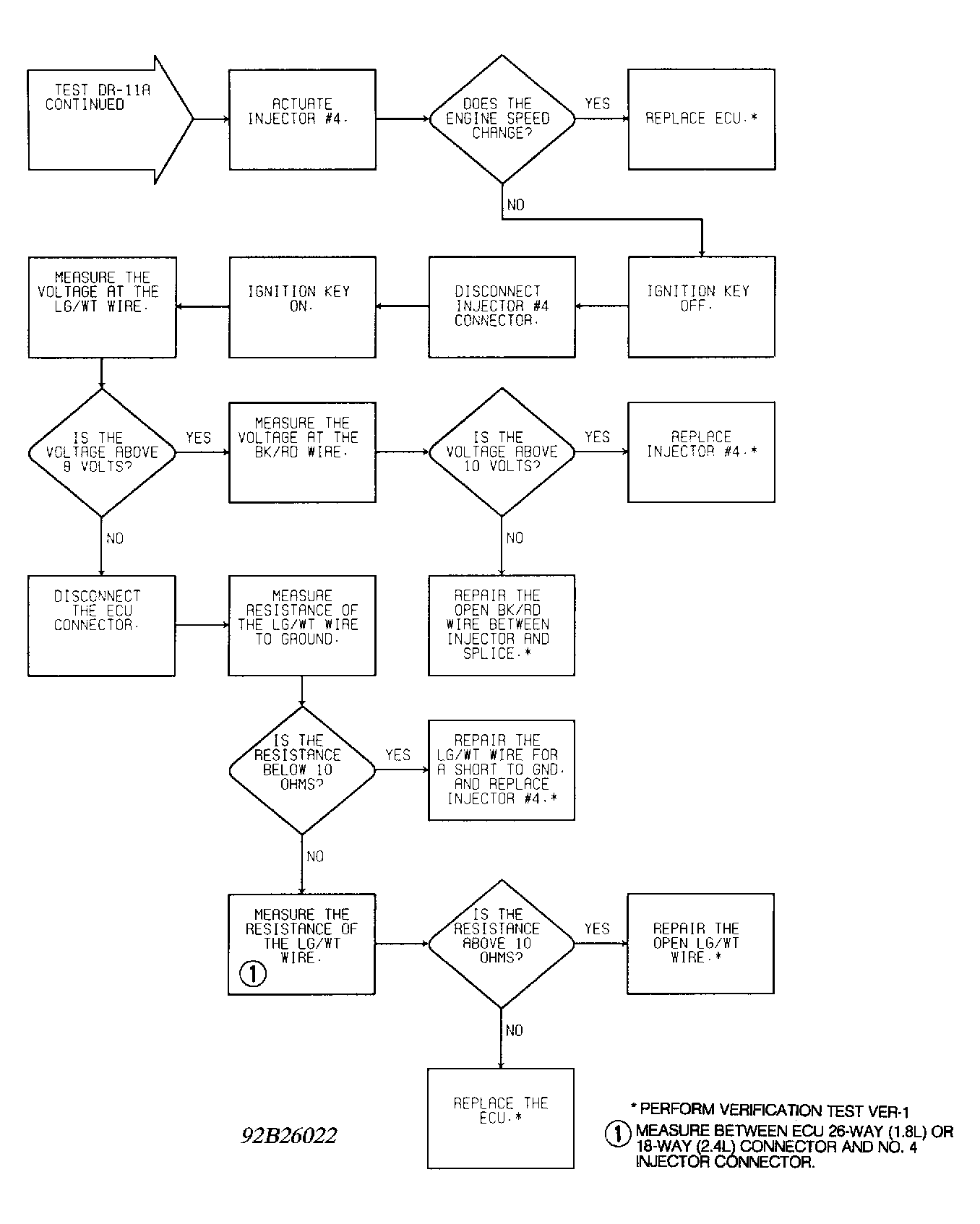

Fig 6: Test DR-11A Flow Chart - Code 41 (4 Of 5) Testing Fuel Injectors

Fig 7: Test DR-11A Flow Chart - Code 41 (5 Of 5) Testing Fuel Injectors
