Dr-17A: Testing Fuel Pressure
Dr-17A: Testing Fuel Pressure

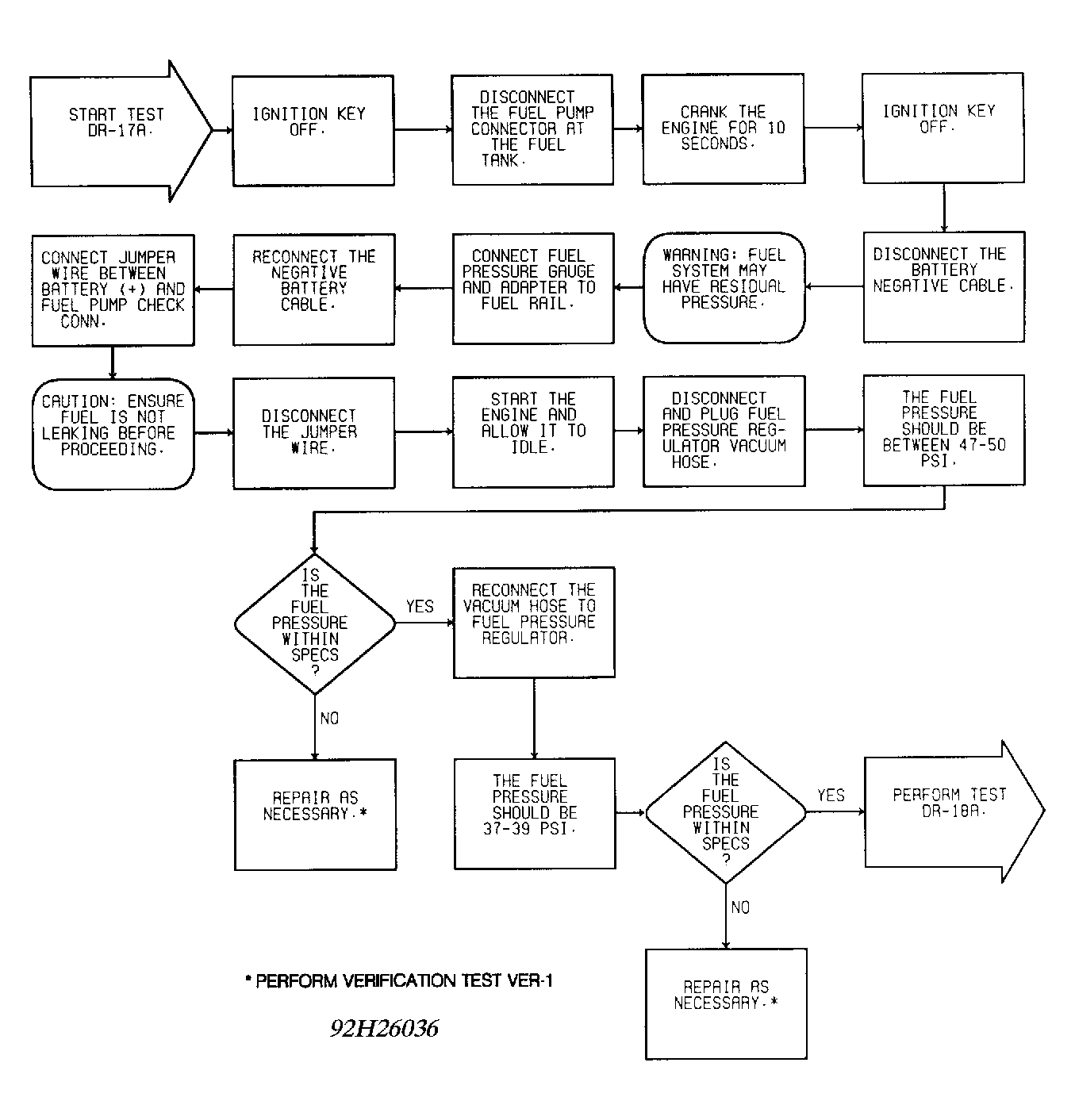

Fig 1: Test DR-17A Flow Chart Testing Fuel Pressure
