Dr-19A: Testing EGR System
Dr-19A: Testing EGR System

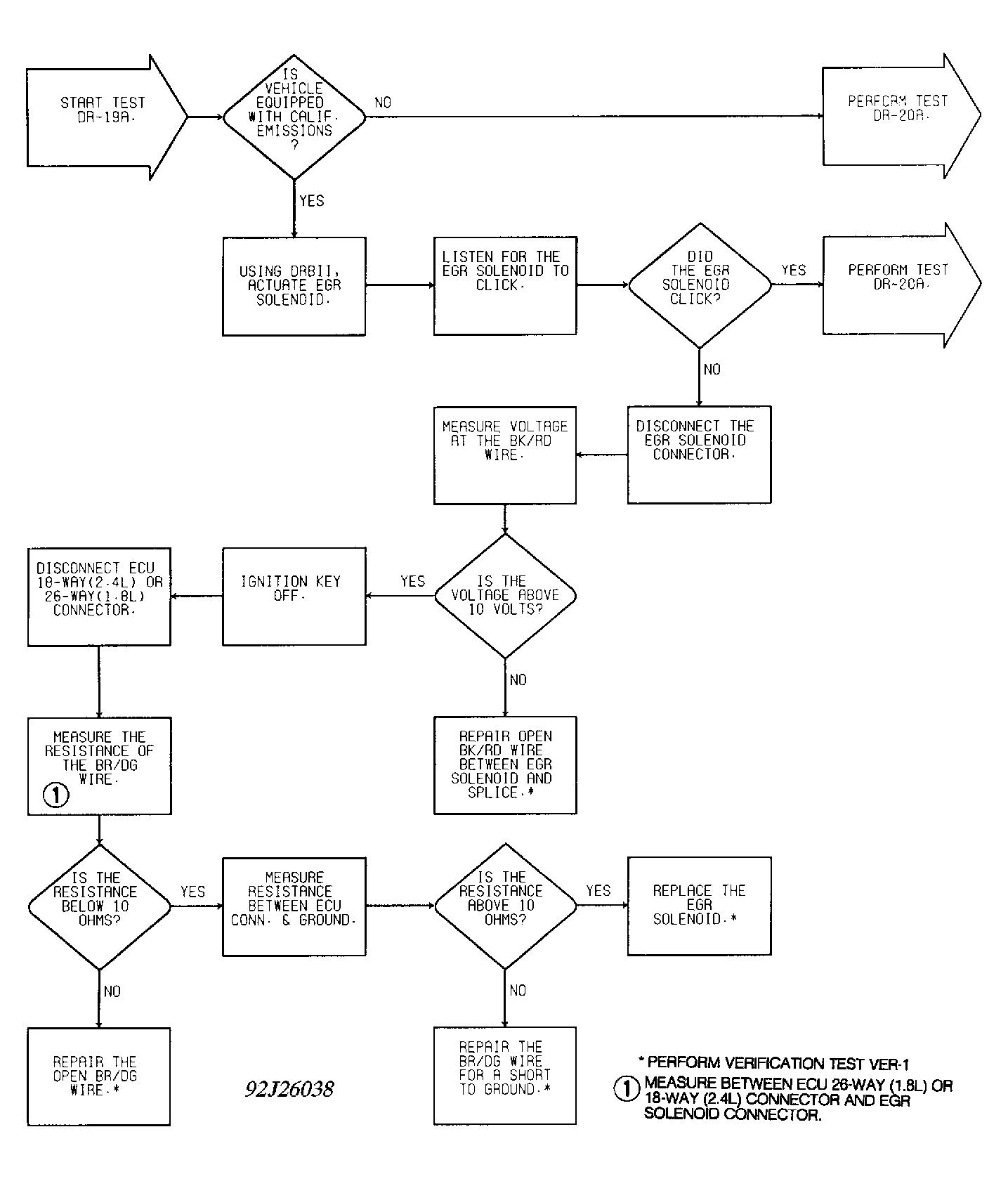

Fig 1: Test DR-19A Flow Chart Testing EGR System
