NS-2A: Checking Fuel System

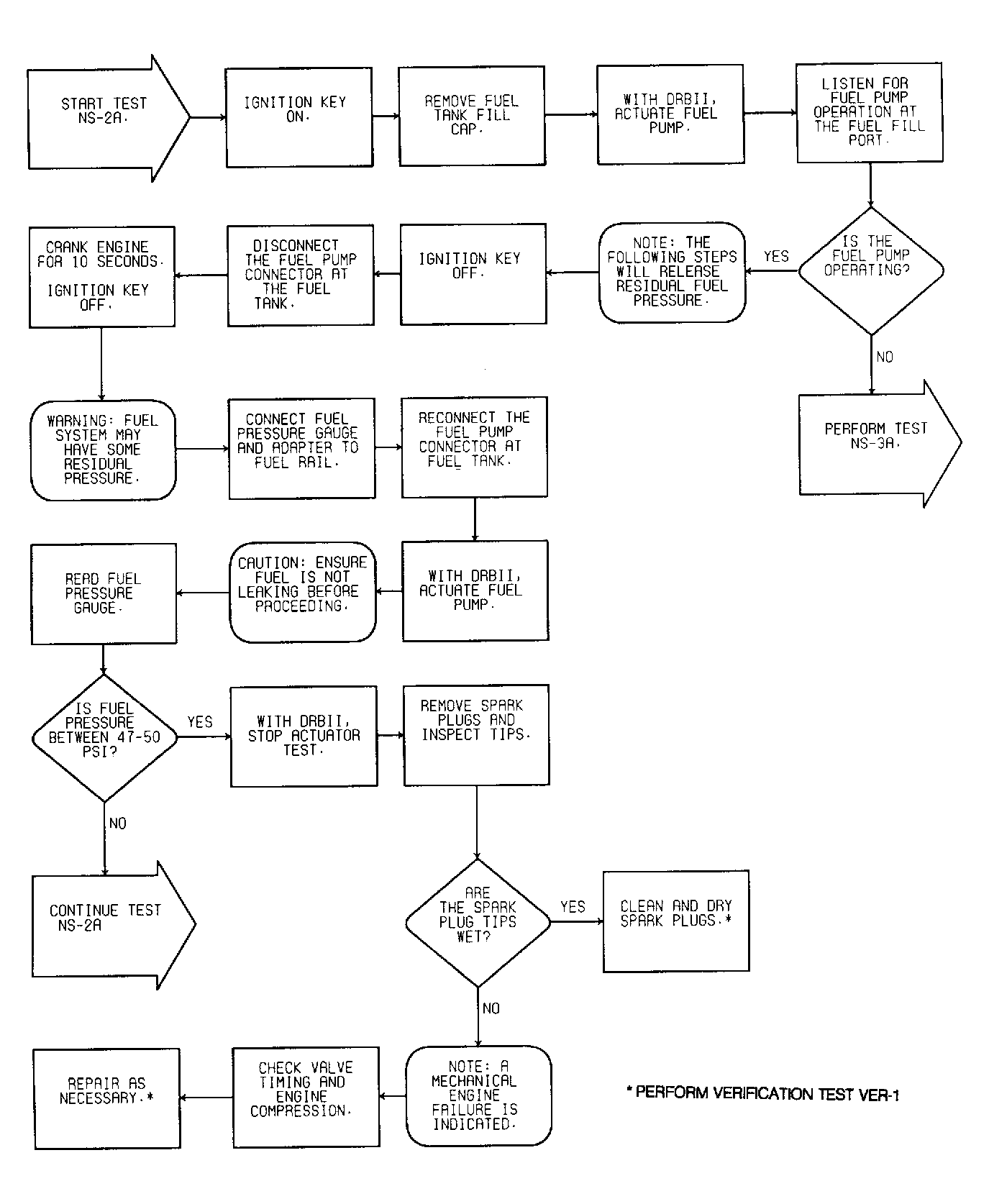

Fig 1: Test NS-2A Flow Chart (1 Of 2) Checking Fuel System

G92C25967

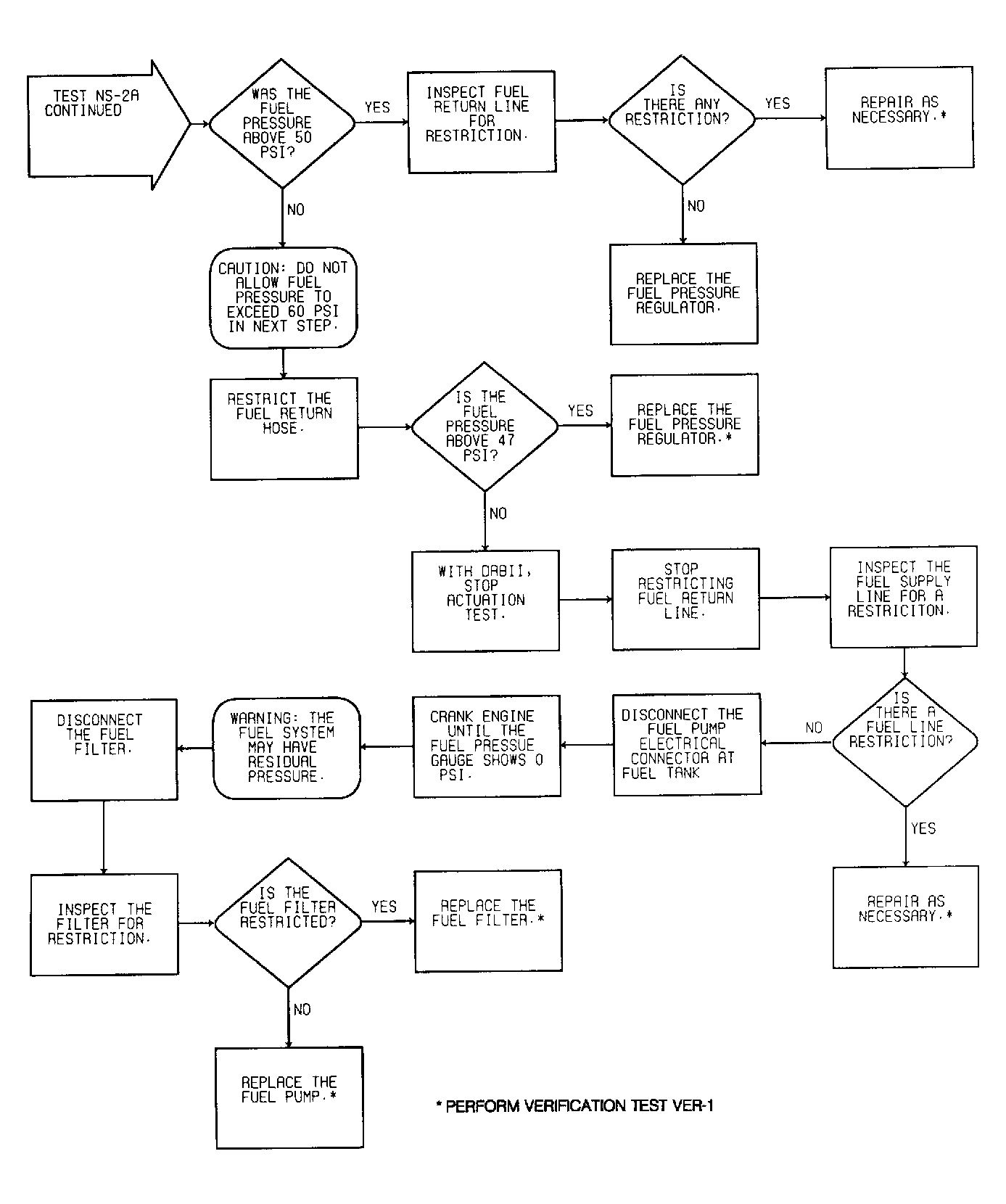

Fig 2: Test NS-2A Flow Chart (2 Of 2) Checking Fuel System

G92D25968
