NS-5A: Repairing Fuel System
NS-5A: Repairing Fuel System

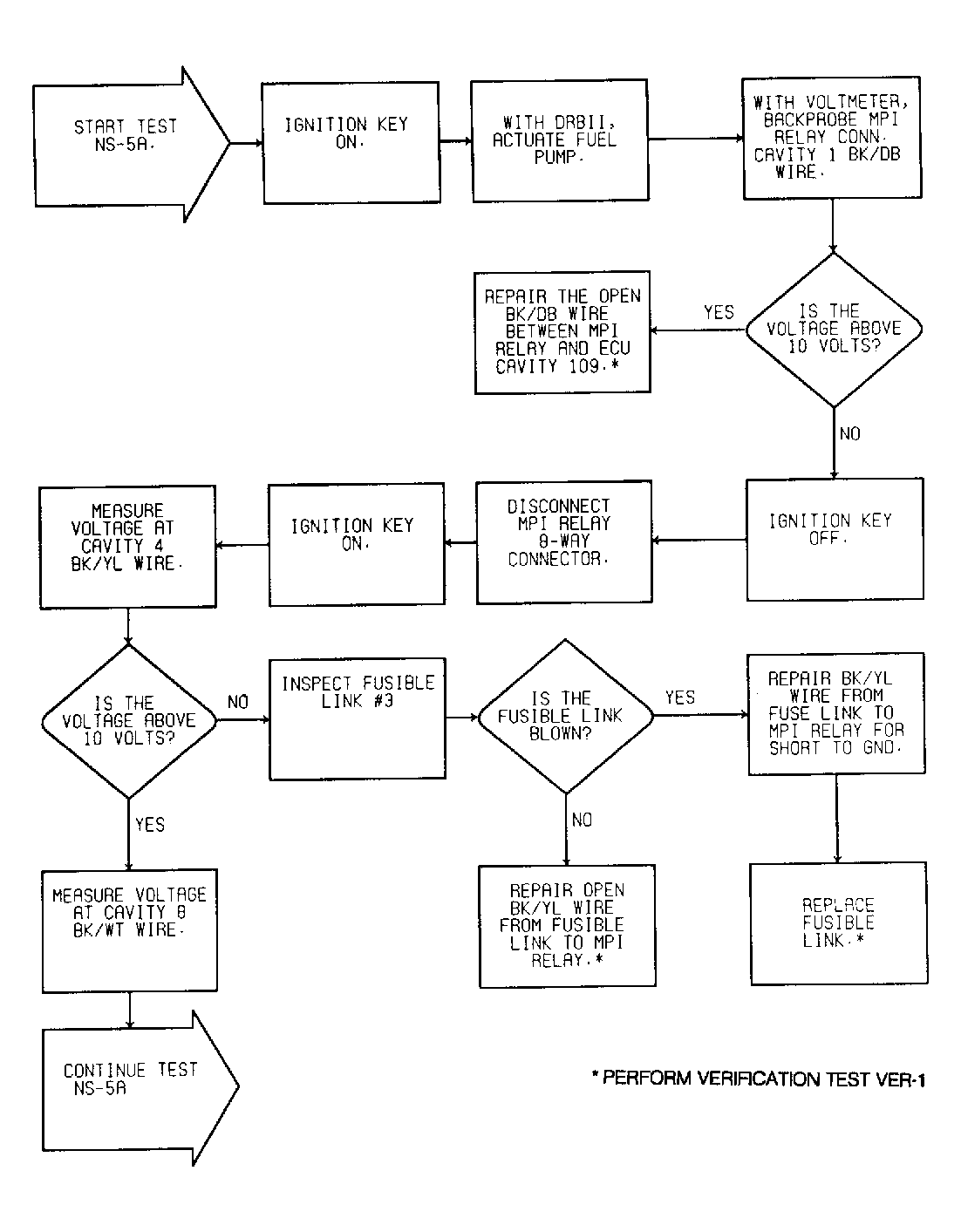

Fig 1: Test NS-5A Flow Chart (1 Of 2) Repairing Fuel System

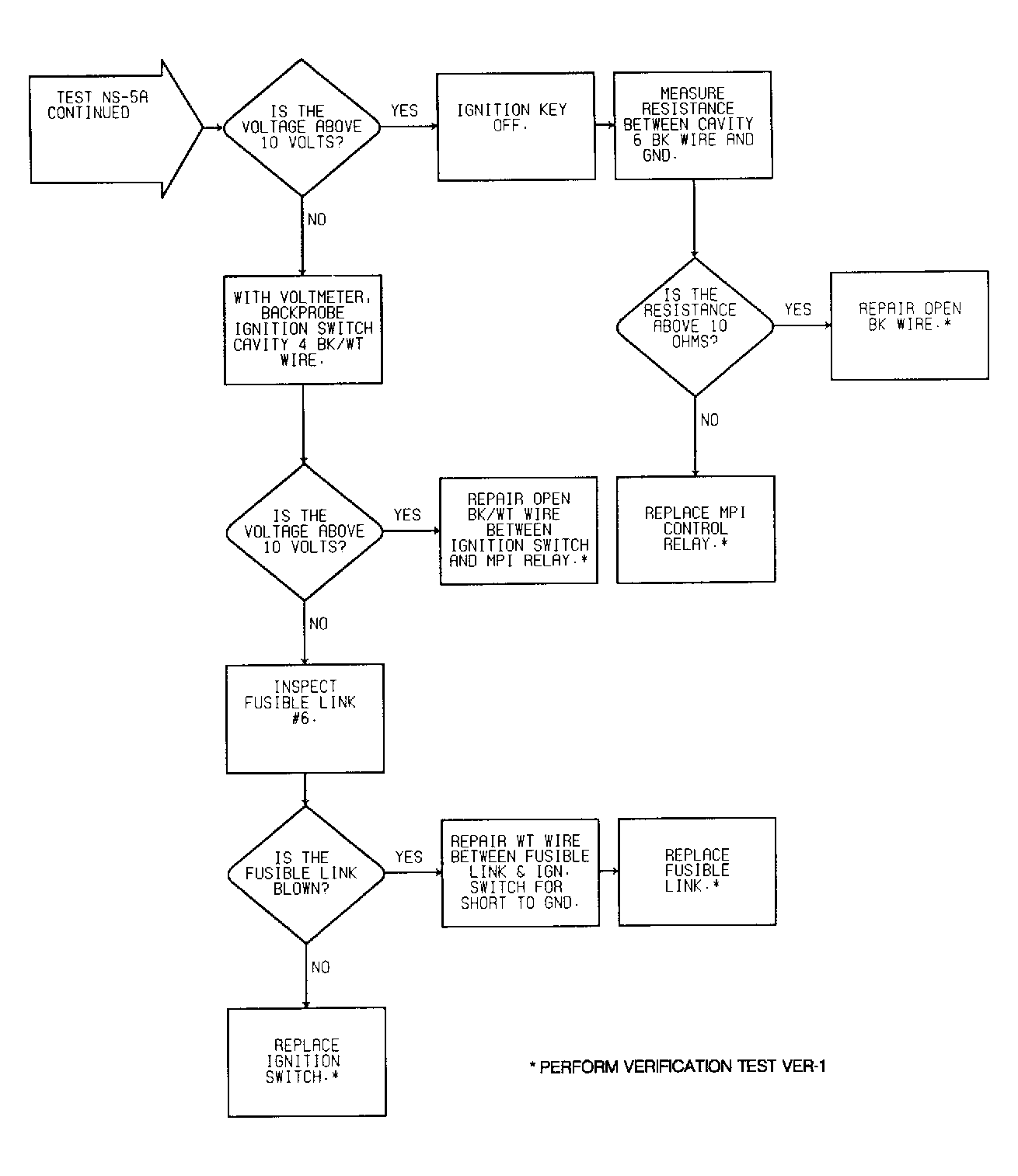

Fig 2: Test NS-5A Flow Chart (2 Of 2) Repairing Fuel System
