Fuses & Circuit Breakers: Notes

The fuse panel is located under the instrument panel on the driver's side. In the event of a blown fuse, locate the cause before replacing the fuse. Spare fuses are contained in the fuse cover.

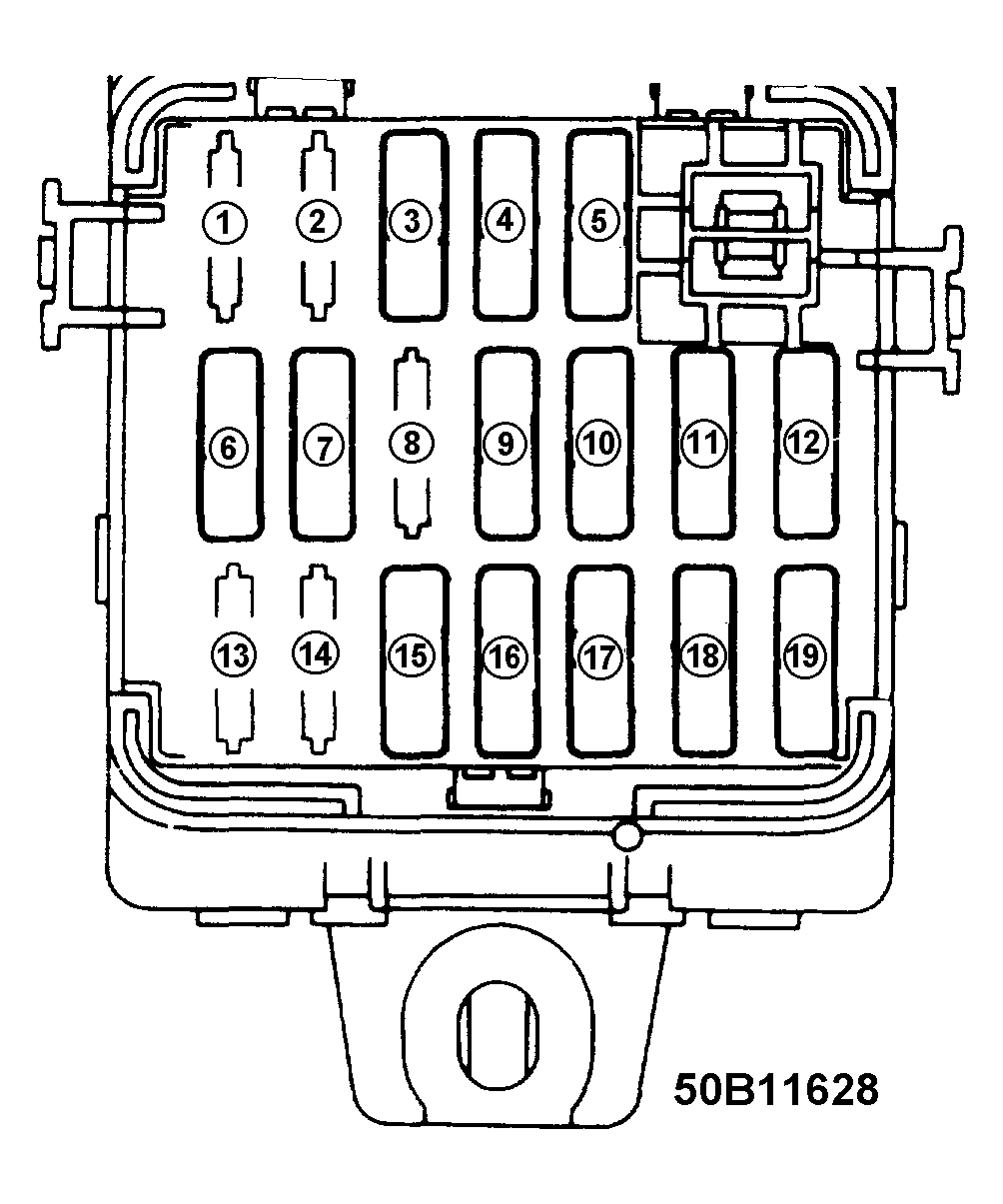

Fig 1: Fuse Panel Identification
G50B11628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
