System Input Tests

System input tests should be performed if no trouble codes are stored when performing SELF-DIAGNOSTICS.

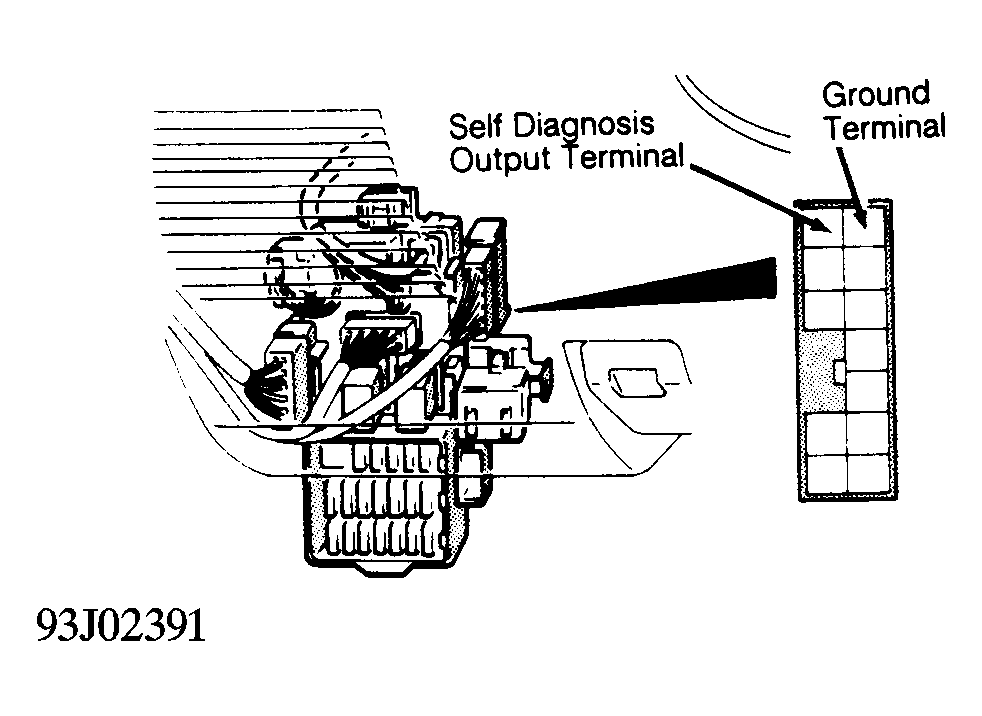

System input tests cycle each cruise control switch and sensor. On Summit Wagon and Colt Vista, use analog voltmeter for system input check. On Expo, use analog voltmeter or Scan Tool (MB991341) for system input check. Connect leads of analog voltmeter or scan tool to diagnostic connector. See Figure .
Turn ignition on. Move set switch to ON position. Turn main cruise control switch to ON position. Within one second turn resume switch to ON position.
NOTE: Cruise control system cannot be set during input test.
Perform each input operation according to INPUT CODE CHART and read codes. See Fig 1 or Fig 2 . Each code will be displayed in order of priority starting with No. 1. If no display is present, a malfunction may exist in the cruise control unit power supply circuit or the set and/or resume switch. Check for malfunction according to TEST NO. 1 or TEST NO. 2 under CIRCUIT TESTS.

Fig 1: Input Code Chart

Courtesy of MITSUBISHI MOTOR CO.

Fig 2: Check Results Chart

Courtesy of MITSUBISHI MOTOR CO.

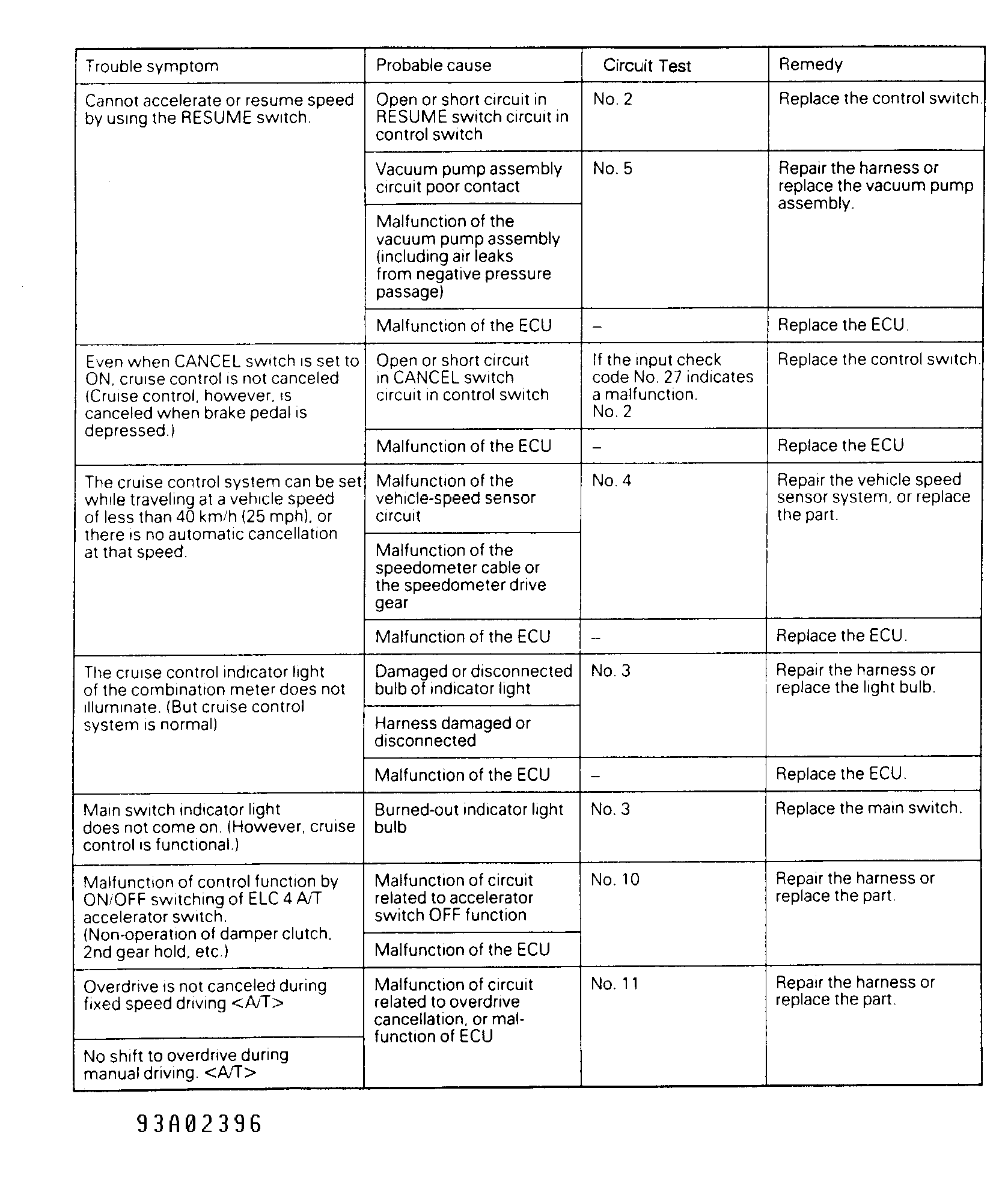

Fig 3: Symptom Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR CO.

Fig 4: Symptom Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR CO.
