Door Lock Control Unit
Door Lock Control Unit

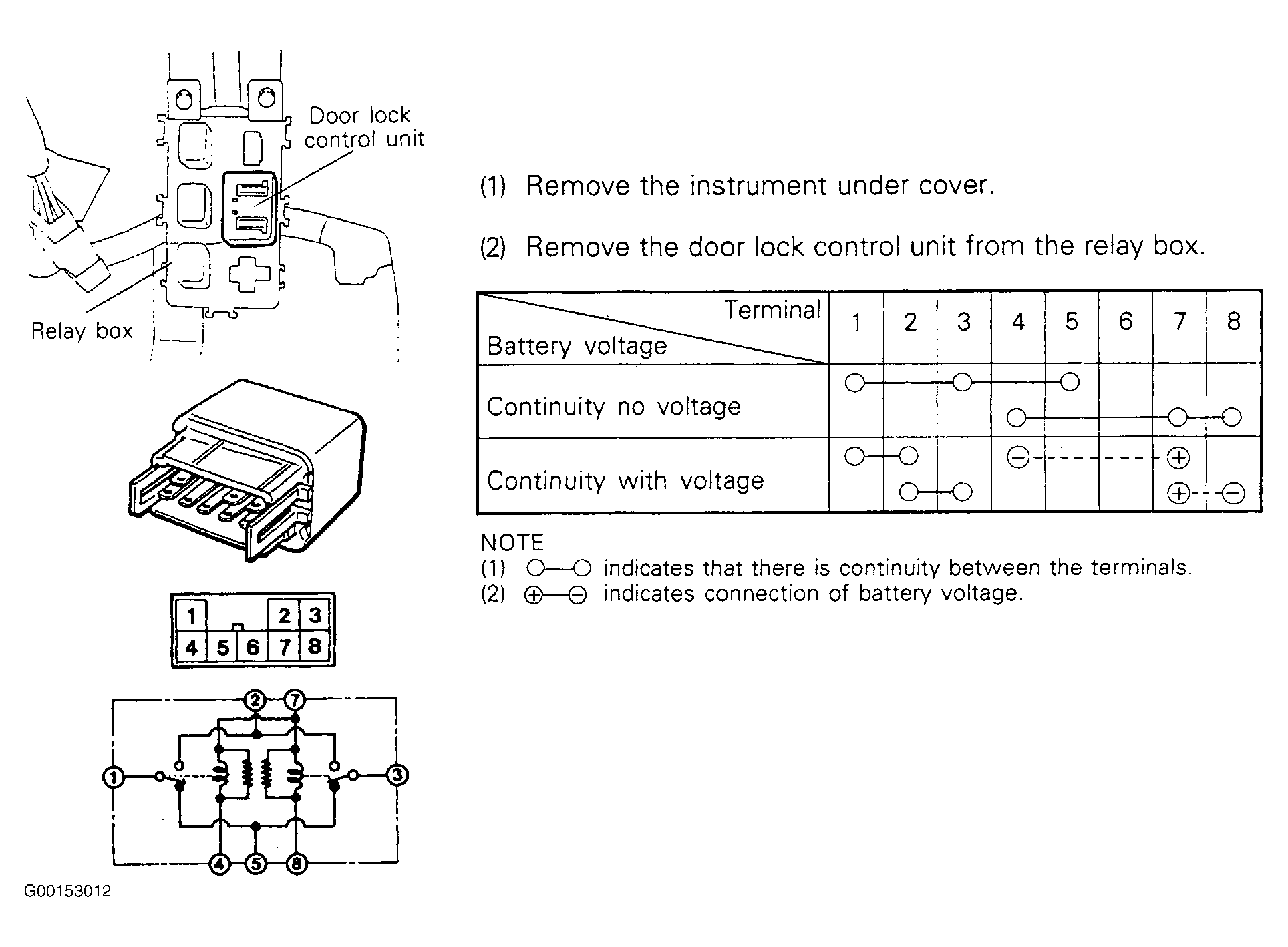

Fig 1: Testing Door Lock Control Unit Continuity
Courtesy of MITSUBISHI MOTORS OF AMERICA, INC.
Courtesy of MITSUBISHI MOTORS OF AMERICA, INC.
