Component Locations

COMPONENT LOCATIONS

Component	Location
Body Ground	Behind far left side of instrument panel, above kick panel.
No. 5 (15A) Power Window Fuse	In fuse panel under lower left side of instrument panel.

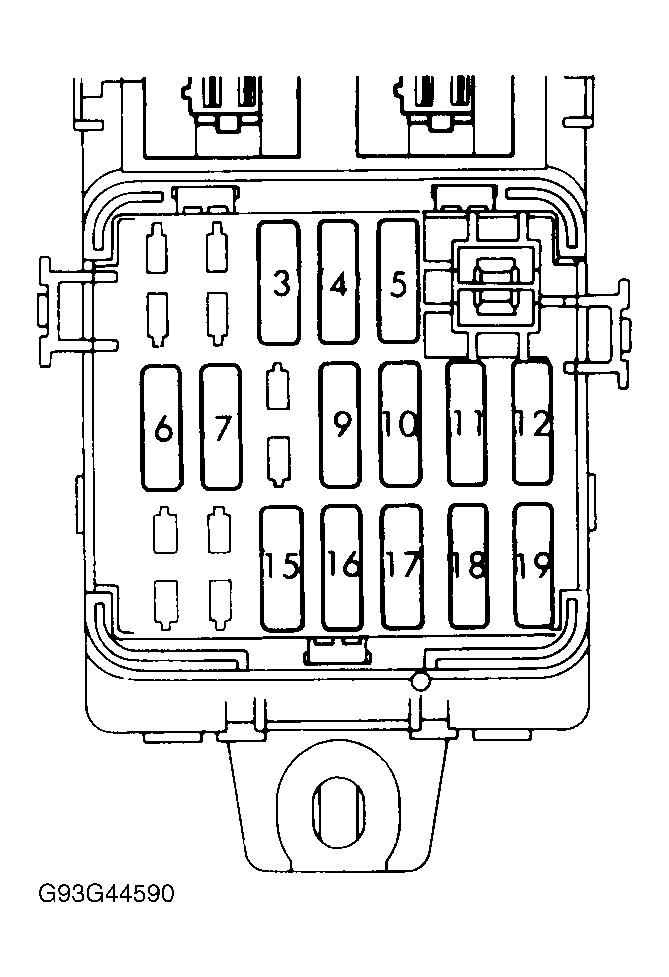

Fig 1: Fuse Panel Identification (1992)

Courtesy of CHRYSLER CORP.
