NS-1A: Reading Fault Codes & Checking For Spark

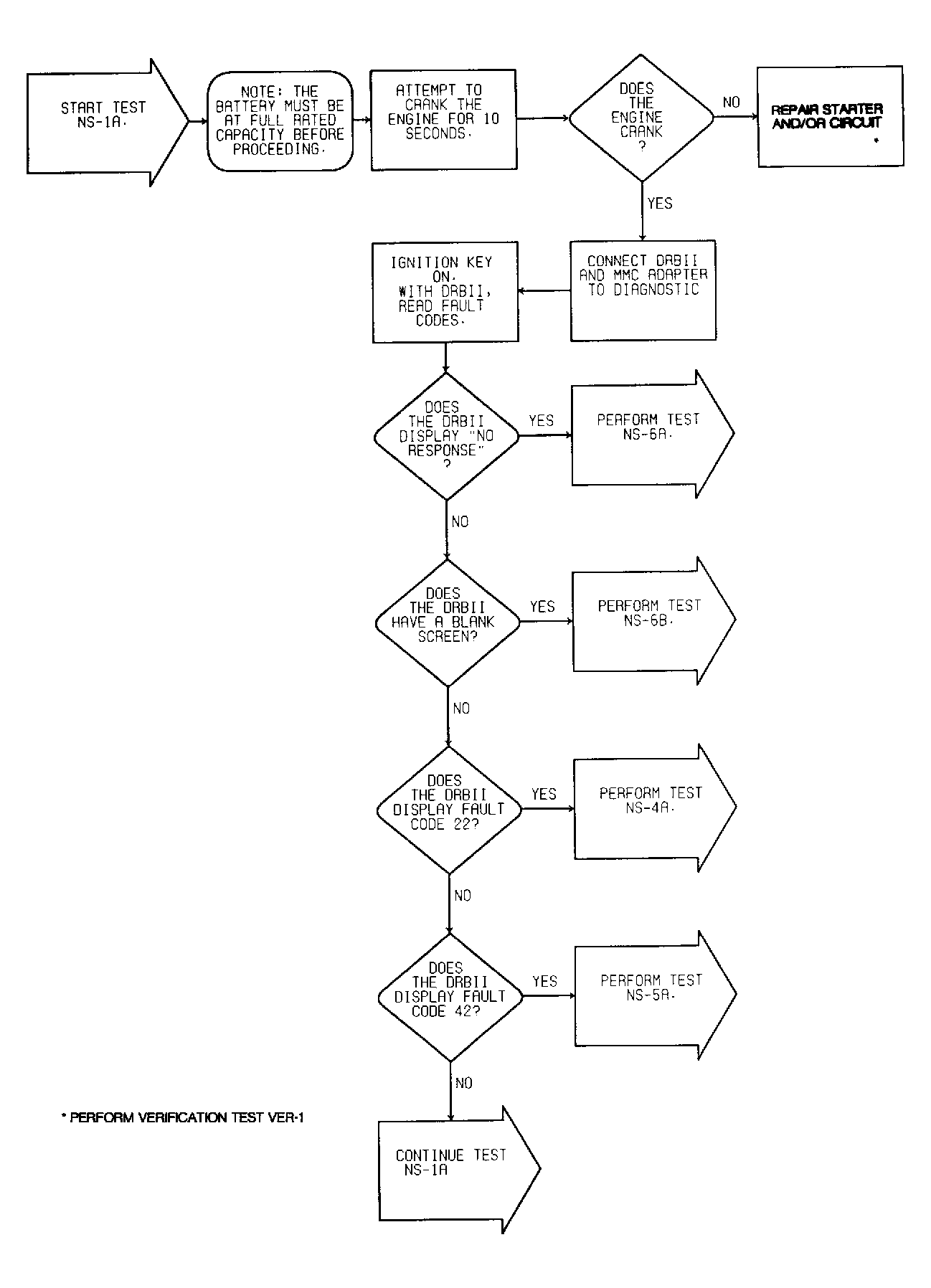

Fig 1: Test NS-1A Flow Chart (1 Of 4) Reading Fault Codes & Checking For Spark

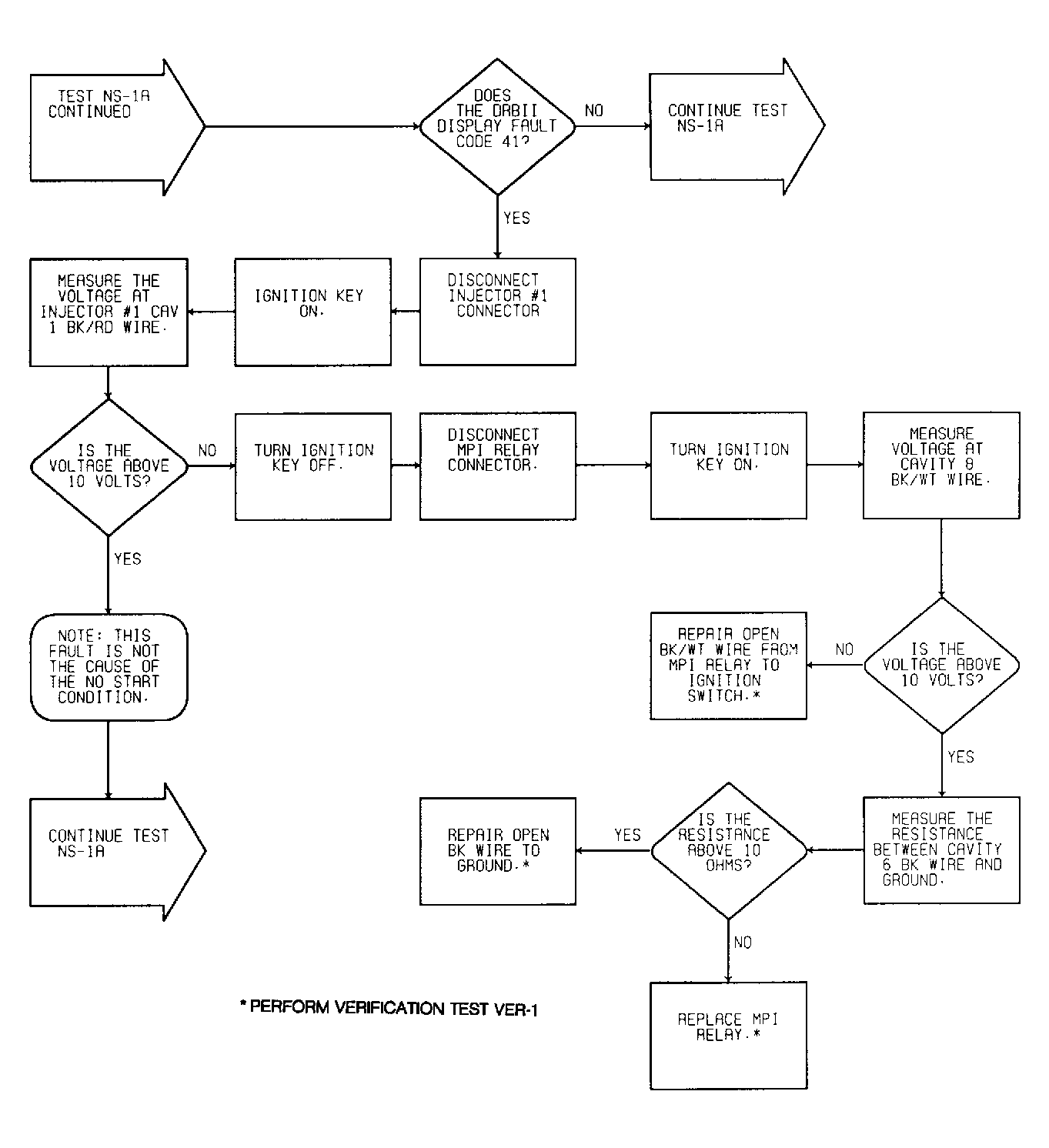

Fig 2: Test NS-1A Flow Chart (2 Of 4) Reading Fault Codes & Checking For Spark

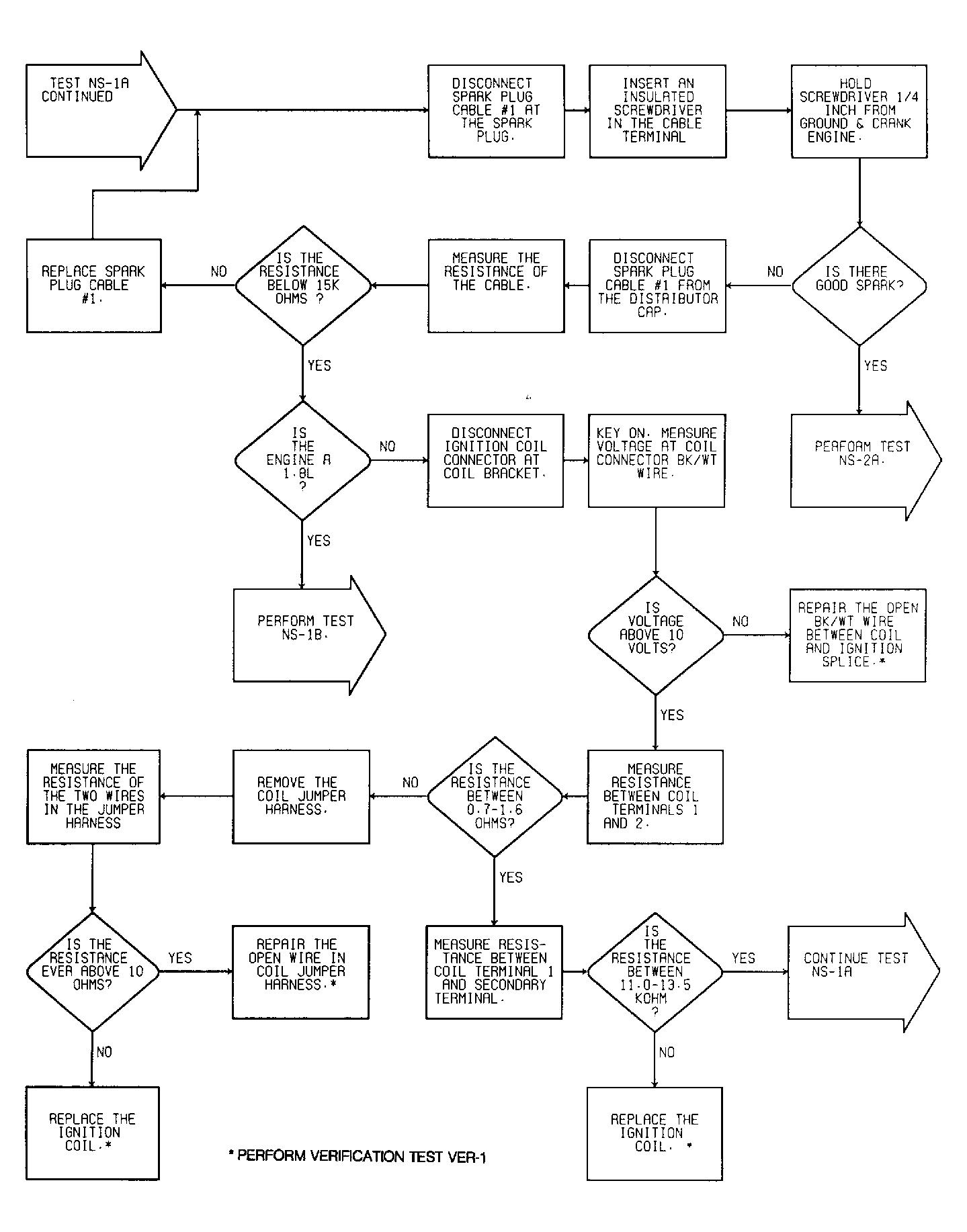

Fig 3: Test NS-1A Flow Chart (3 Of 4) Reading Fault Codes & Checking For Spark

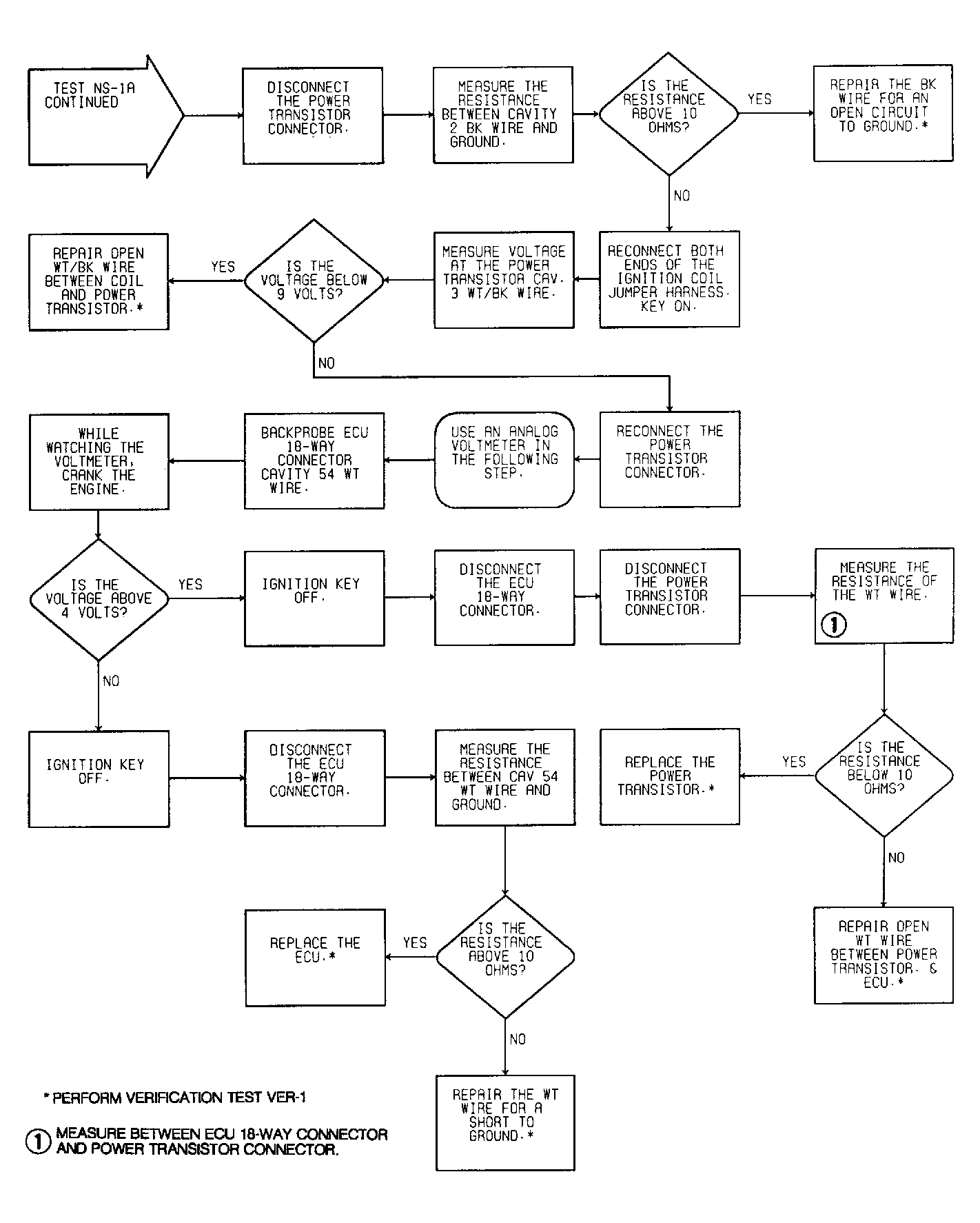

Fig 4: Test NS-1A Flow Chart (4 Of 4) Reading Fault Codes & Checking For Spark
