Remote Control Mirror Assembly (With Heated Mirrors)
Remote Control Mirror Assembly (With Heated Mirrors)

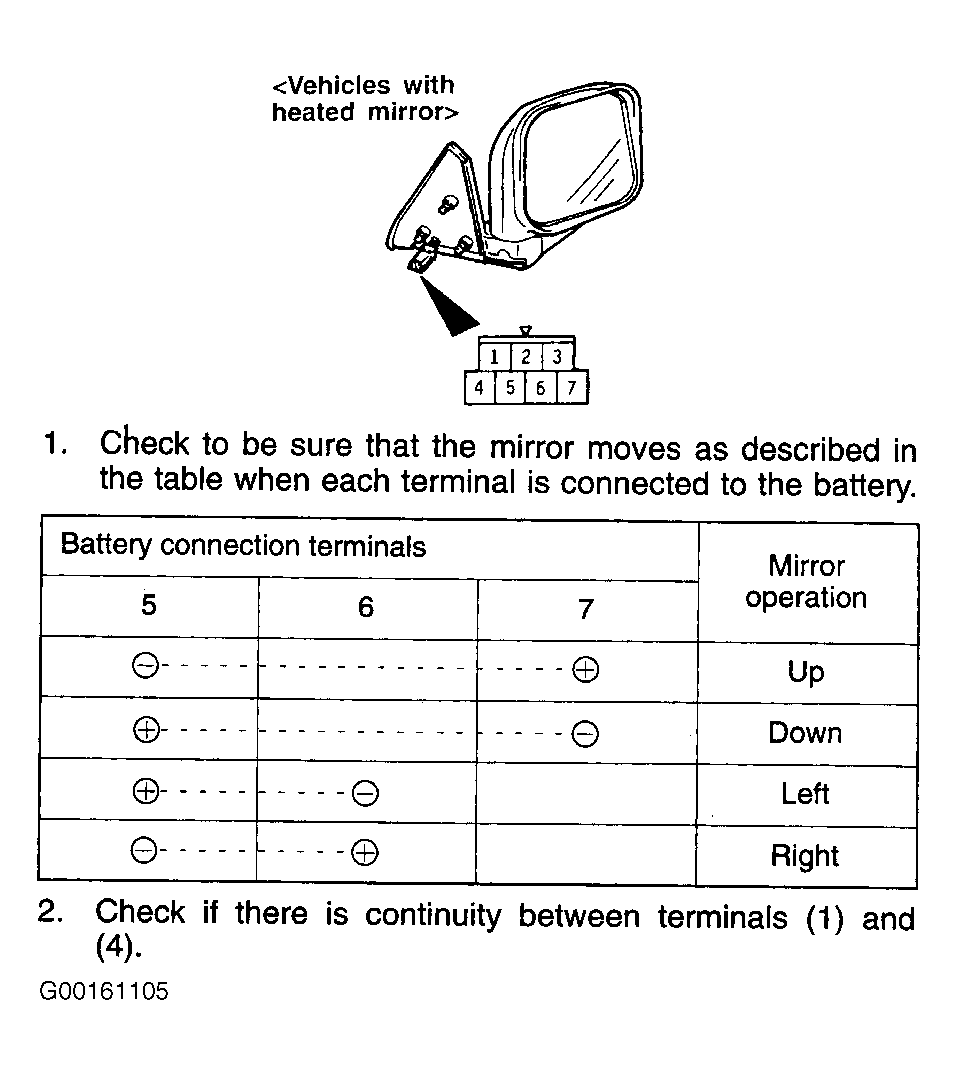

Fig 1: Testing Remote Control Mirror Assembly (With
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
