NS-2: Checking For Fuel
NS-2: Checking For Fuel
Fig 1: NS-2 Test Schematic - 3.0L Fuel Check

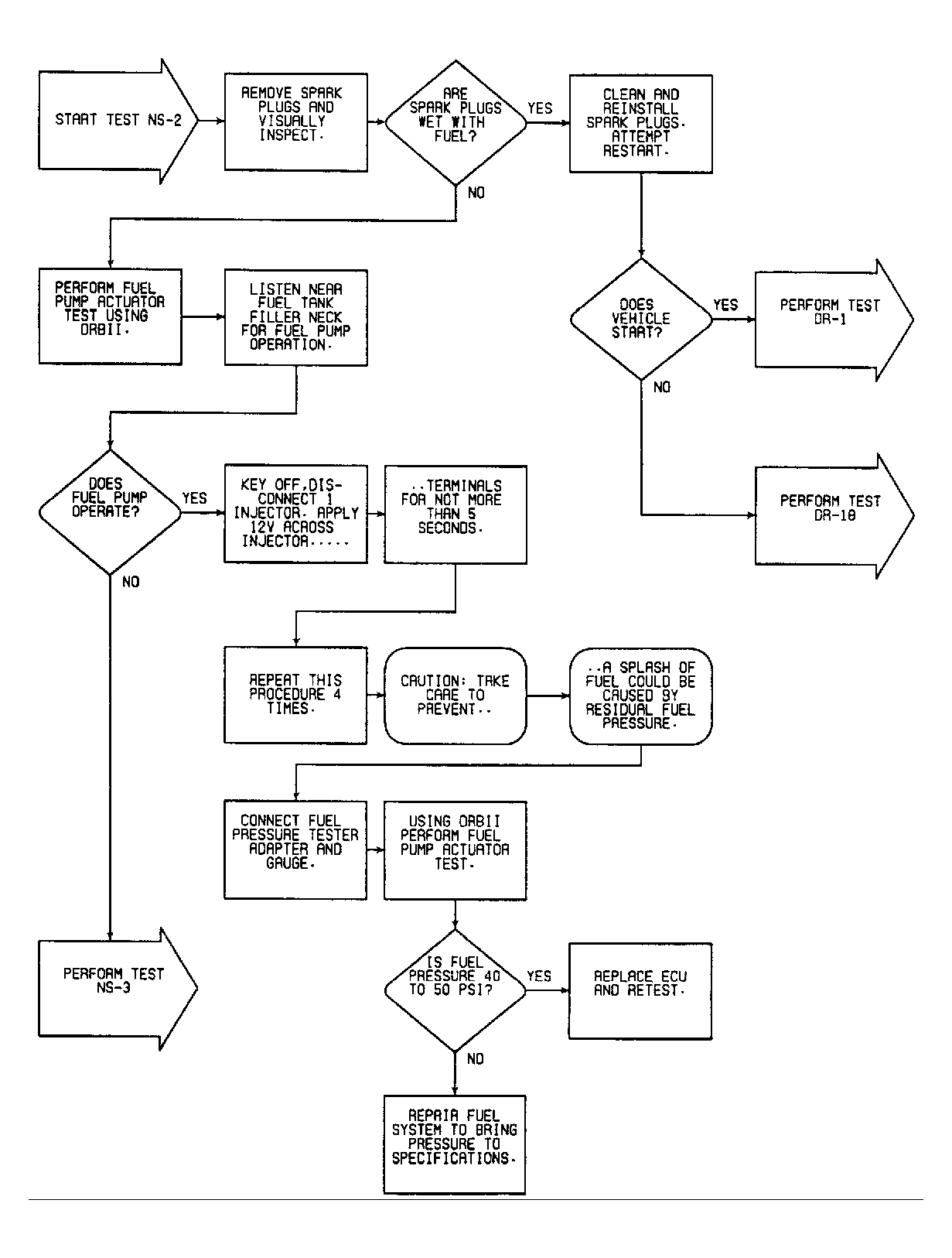

Fig 2: NS-2 Test Flow Chart - 3.0L Fuel Check
