Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Blocks | ||

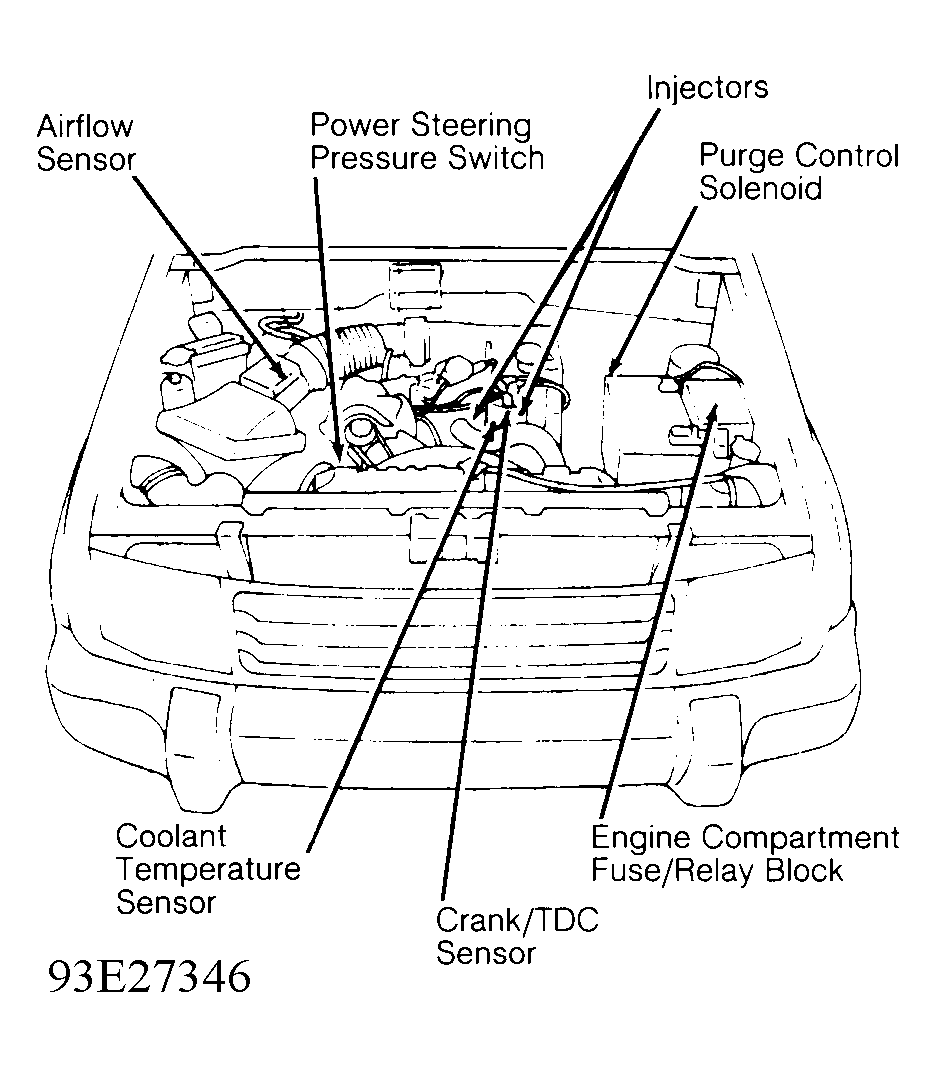

| Engine Compartment | On left inner fender panel, behind battery. See Figure . | |

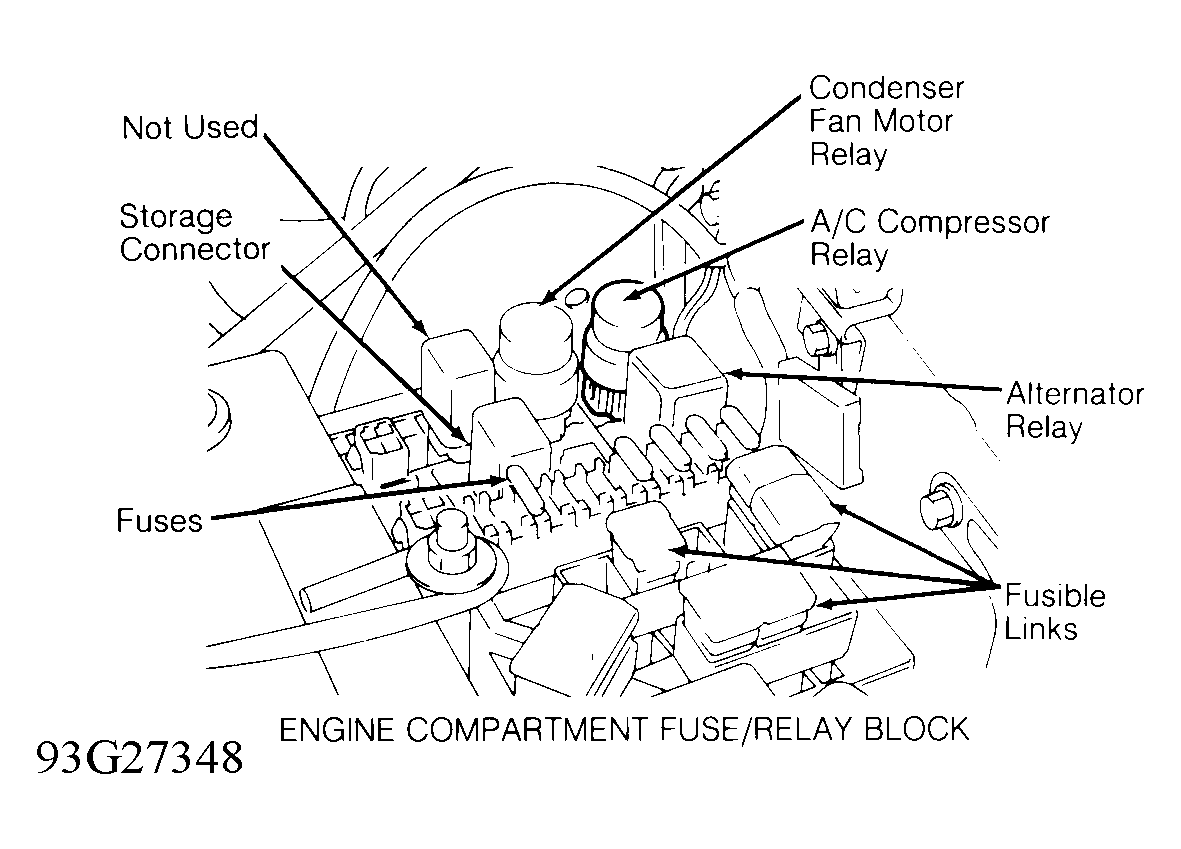

| Engine Compartment Relay Block | On left inner fender panel, behind battery. See Figure . | |

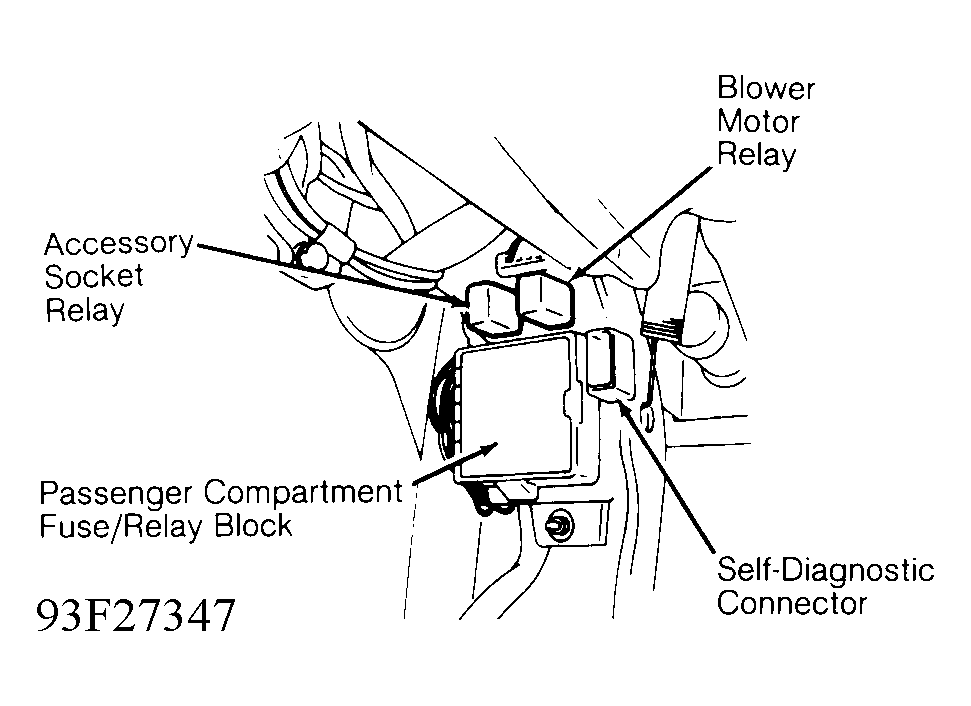

| Passenger Compartment | Behind left side of dash. See Figure . | |
| Fusible Links | In engine compartment fuse/relay block. See Figure . | |
