Repair and Diagnosis
›
Body & Frame
›
Power Mirrors
›
Component Testing
›
Remote Controlled Mirror Switch
Remote Controlled Mirror Switch

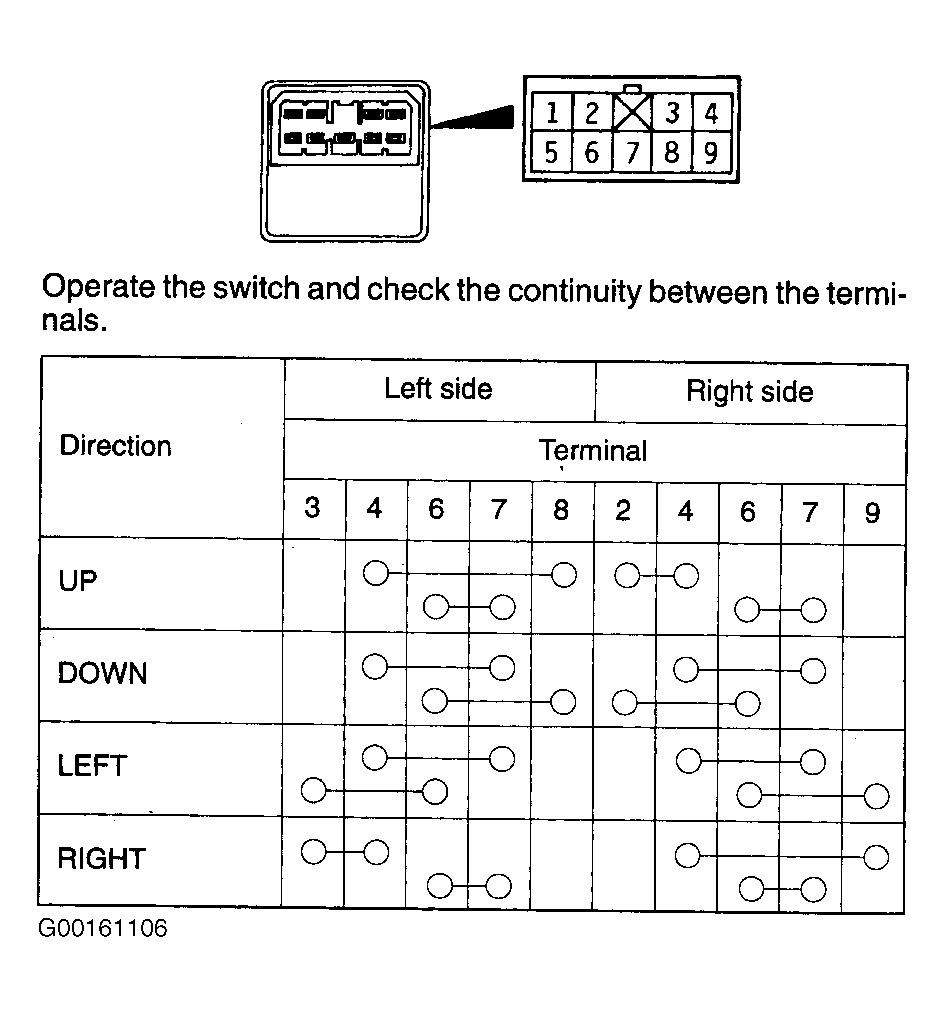

Fig 1: Testing Remote Controlled Mirror Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
