Dr-15: Code 43, EGR Temperature Sensor

Fig 1: Test DR-15 Code 43 Schematic - 2.4L EGR Temperature Sensor

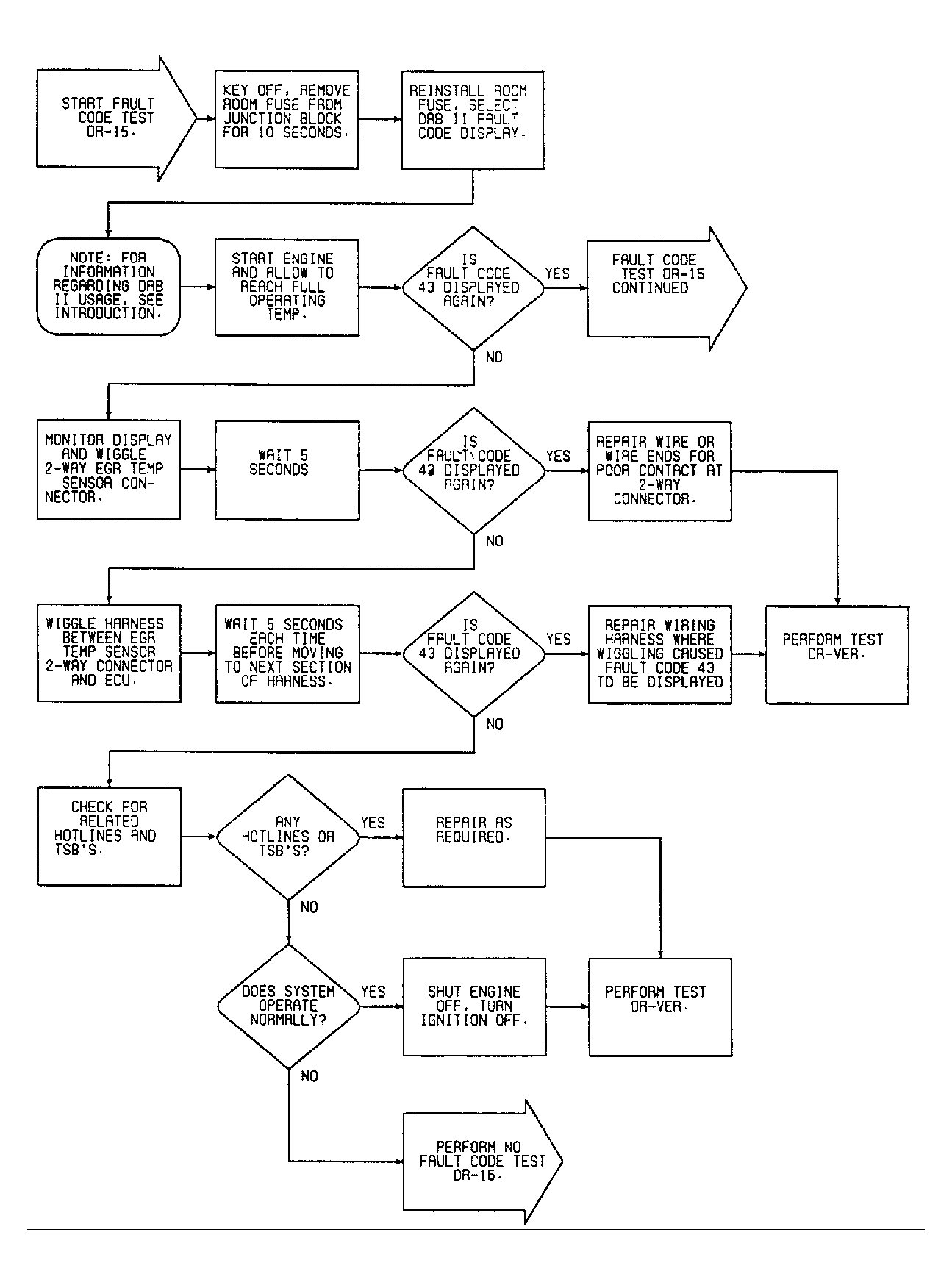

Fig 2: Test DR-15 Code 43 Flow Chart - 2.4L (1 of 2) EGR Temperature Sensor

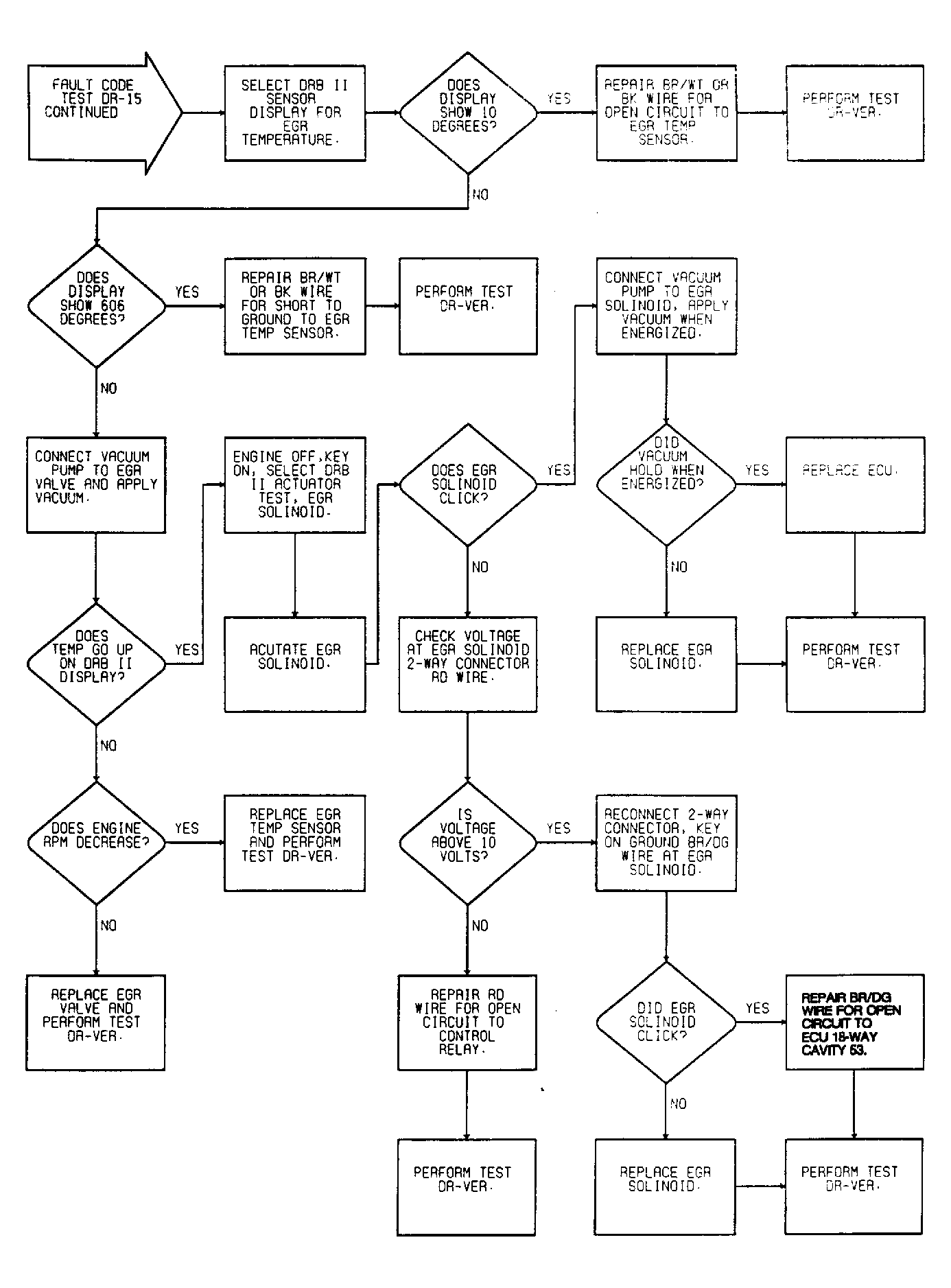

Fig 3: Test DR-15 Code 43 Flow Chart - 2.4L (2 of 2) EGR Temperature Sensor
