Dr-7: Code 15, Motor Position Sensor

Fig 1: Test DR-7 Code 15 Schematic - 2.4L Motor Position Sensor

Fig 2: Test DR-7 Code 15 Flow Chart - 2.4L (1 of 3) Motor Position Sensor

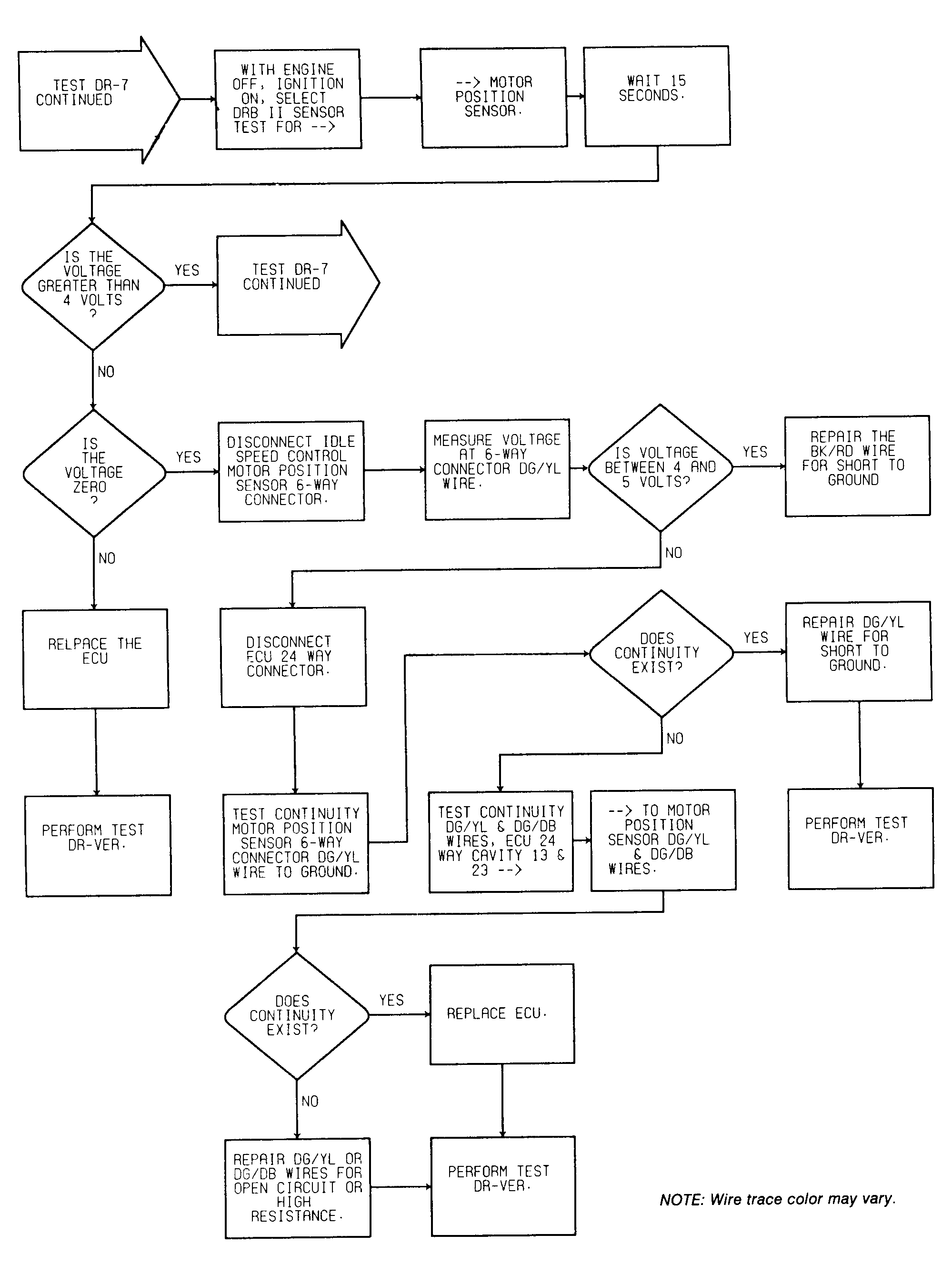

Fig 3: Test DR-7 Code 15 Flow Chart - 2.4L (2 of 3) Motor Position Sensor

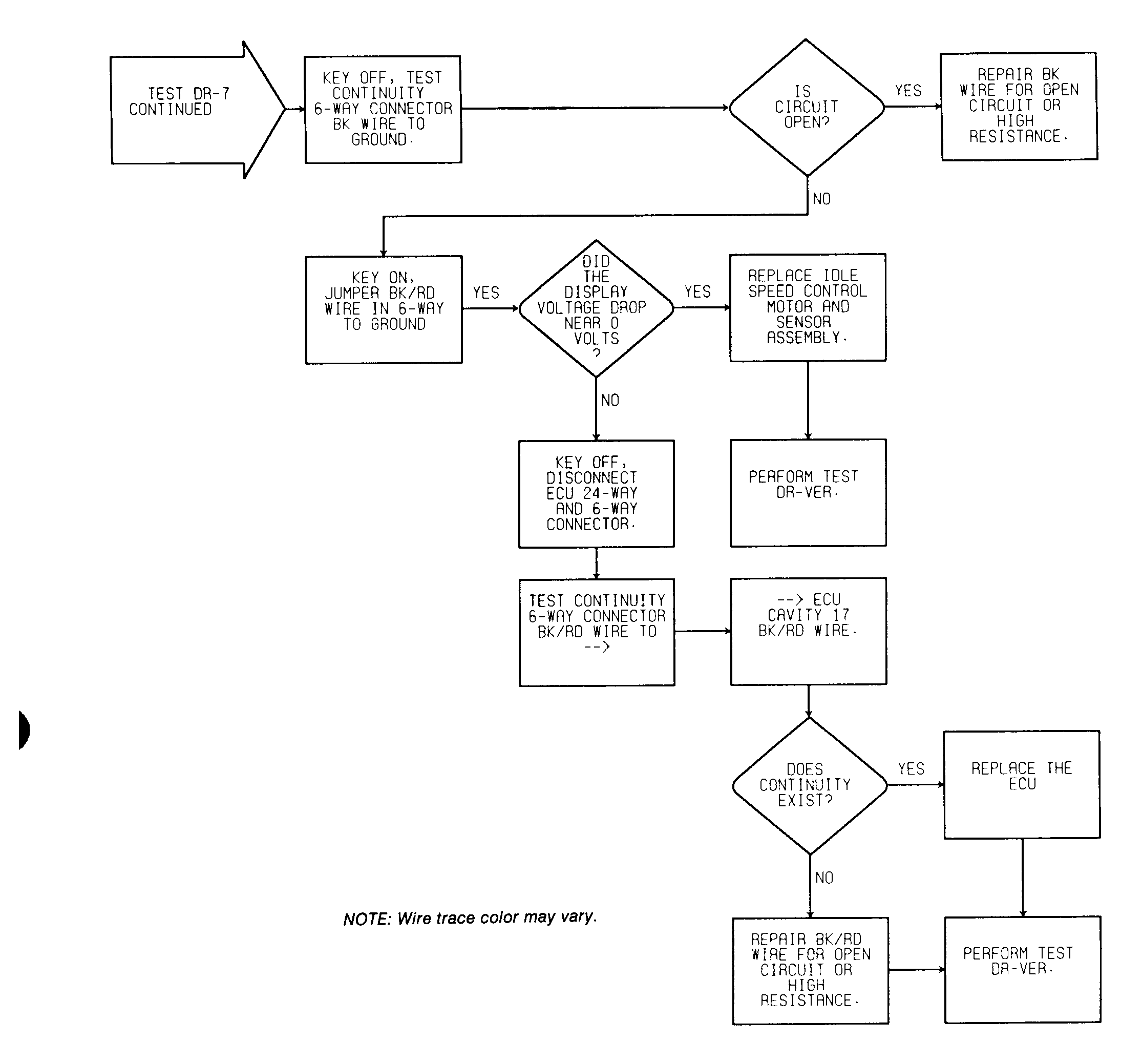

Fig 4: Test DR-7 Code 15 Flow Chart - 2.4L (3 of 3) Motor Position Sensor
