Dr-5: Code 13, Intake Air Temperature Sensor

Fig 1: Test DR-5 Code 13 Schematic - 2.4L Intake Air Temperature Sensor

Fig 2: Test DR-5 Code 13 Flow Chart - 2.4L (1 of 2) Intake Air Temperature Sensor

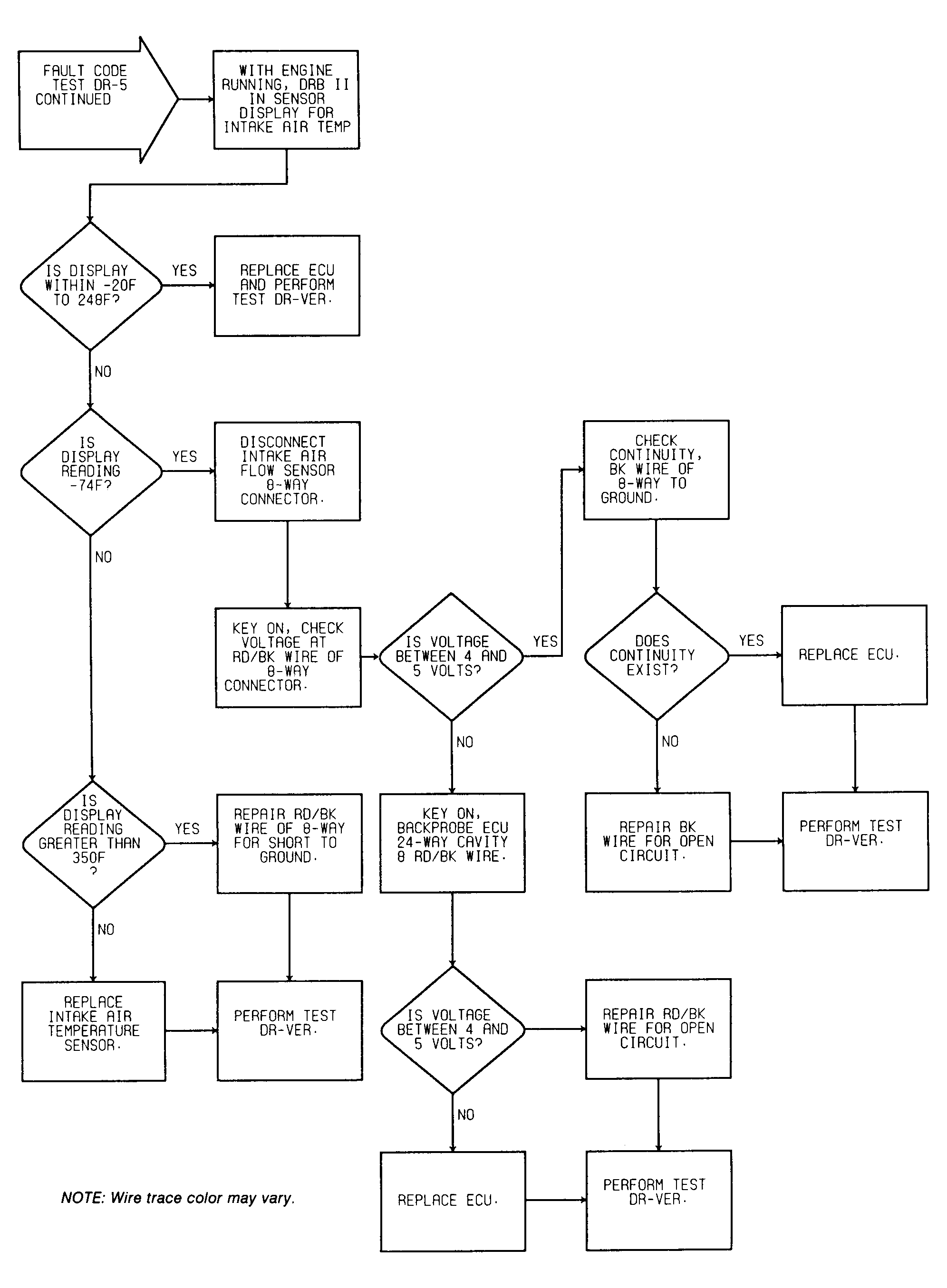

Fig 3: Test DR-5 Code 13 Flow Chart - 2.4L (2 of 2) Intake Air Temperature Sensor
