Firing Order

WARNING: On many models, improper arrangement of spark plug wires will cause miss firing and surge during high-speed operation. Ensure spark plug wires are routed as shown.

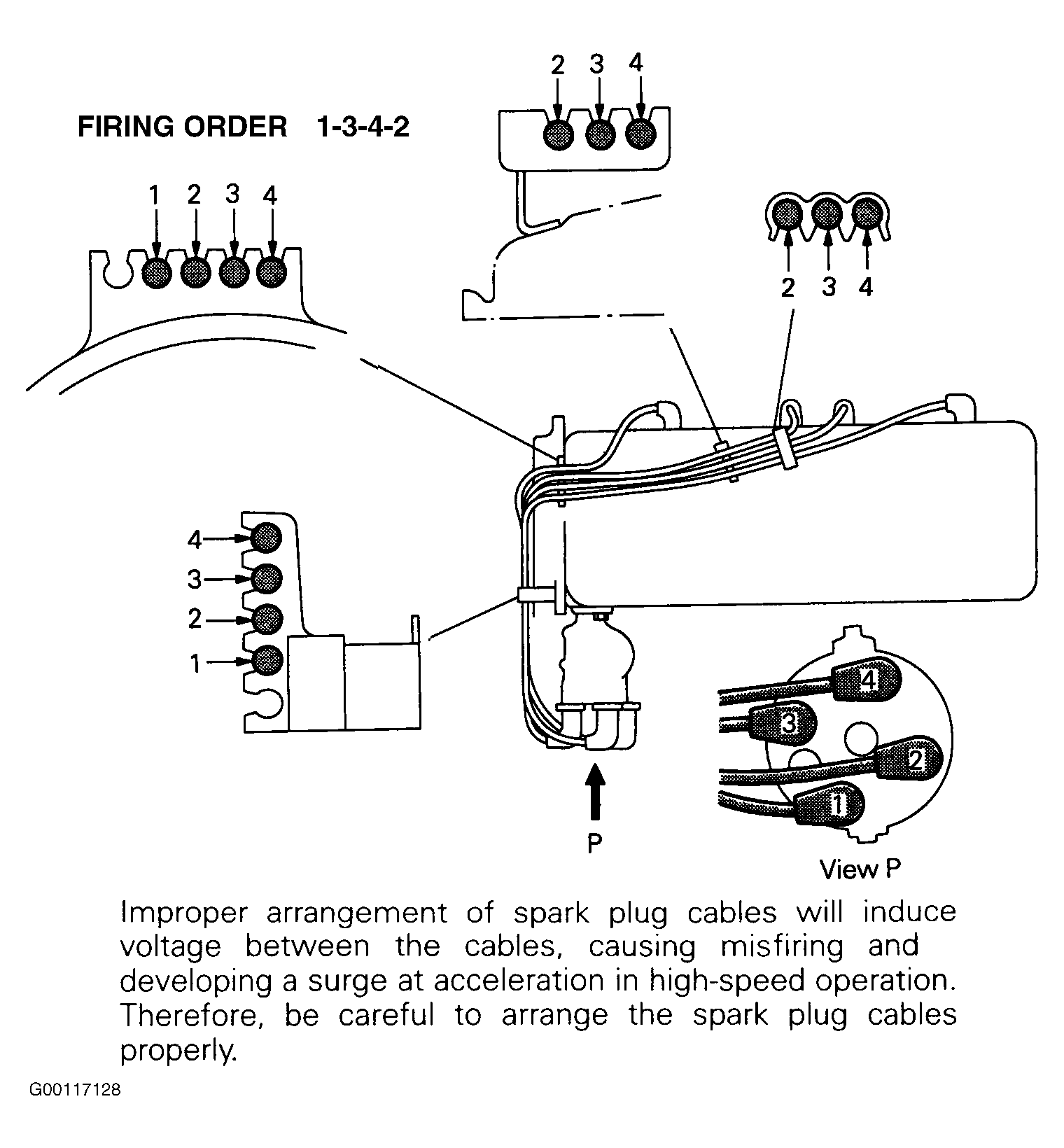

Fig 1: Firing Order & Plug Wire Routing (1.5L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
