Center Support Assembly: Reassembly

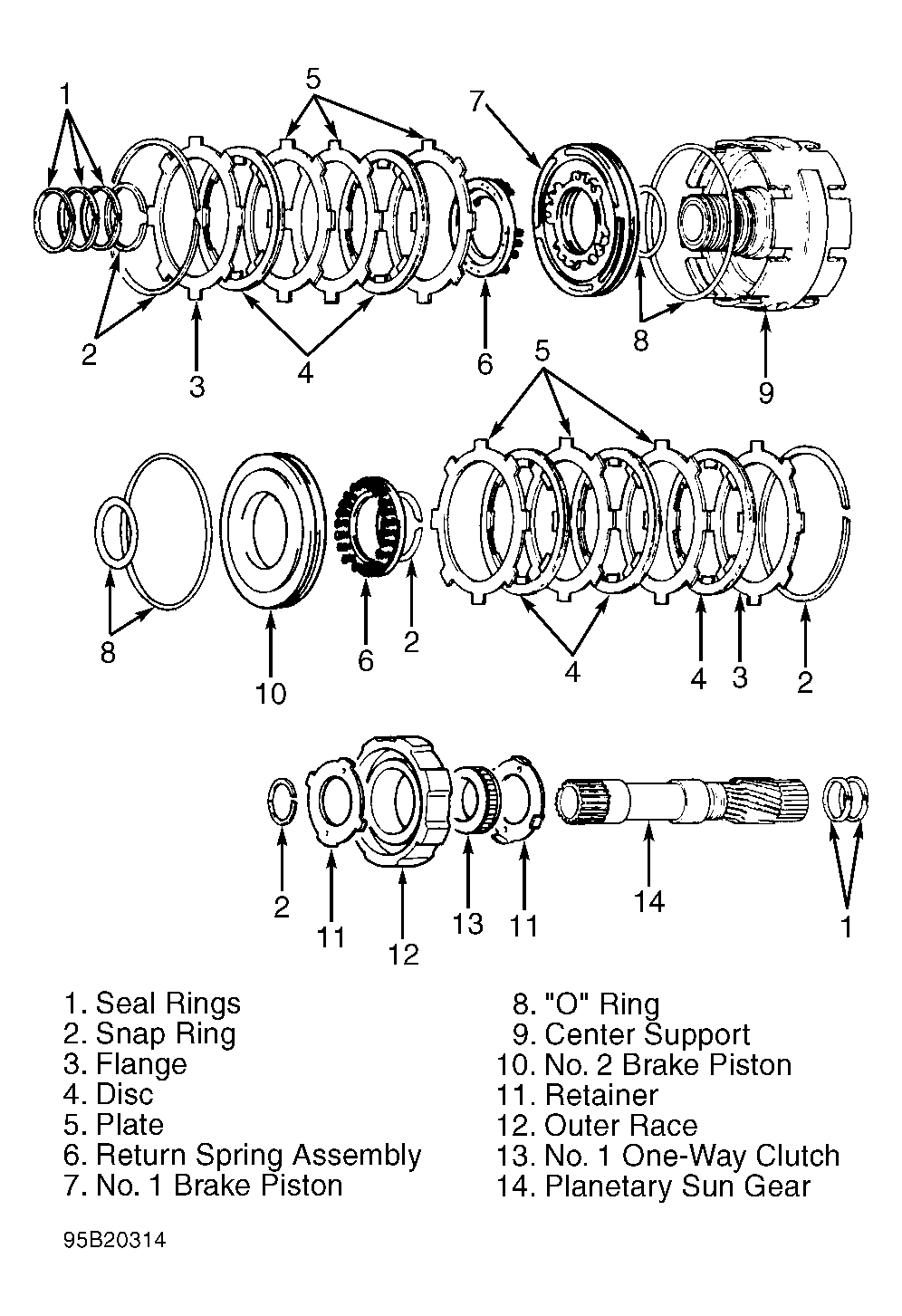

- Lubricate "O" rings with ATF. To reassemble, reverse disassembly procedure. Ensure end gap of snap ring does not align with claw area on spring seat of piston return spring. Install plates and discs in appropriate order. See Figure
.
- Install No. 1 brake flange with rounded side facing down. Install No. 2 brake flange with flat side facing down. Install all snap rings. Ensure ends of snap rings do not align with cutout areas of center support.

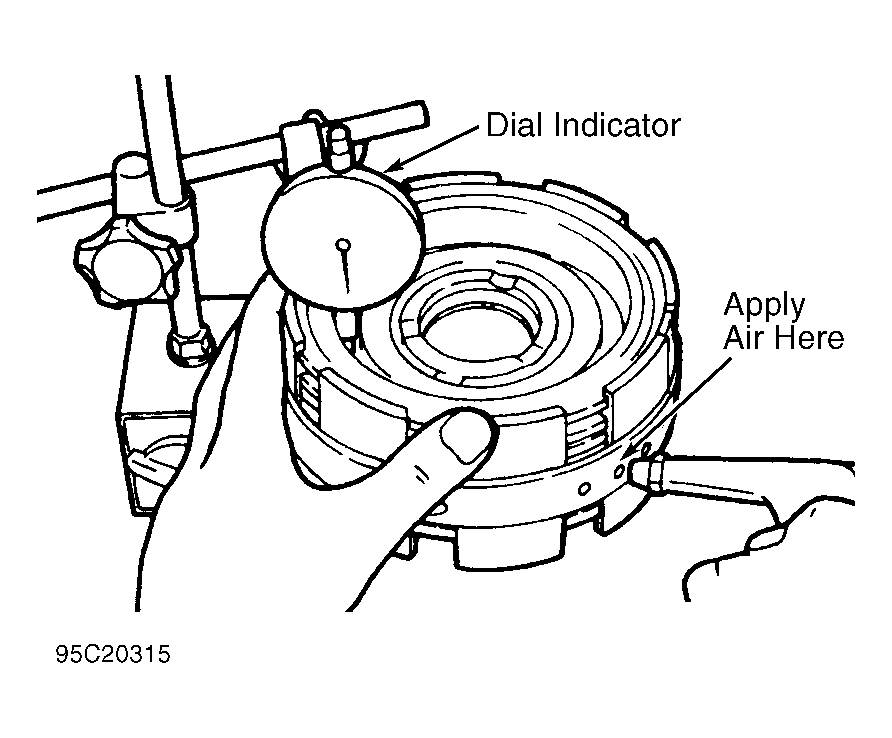

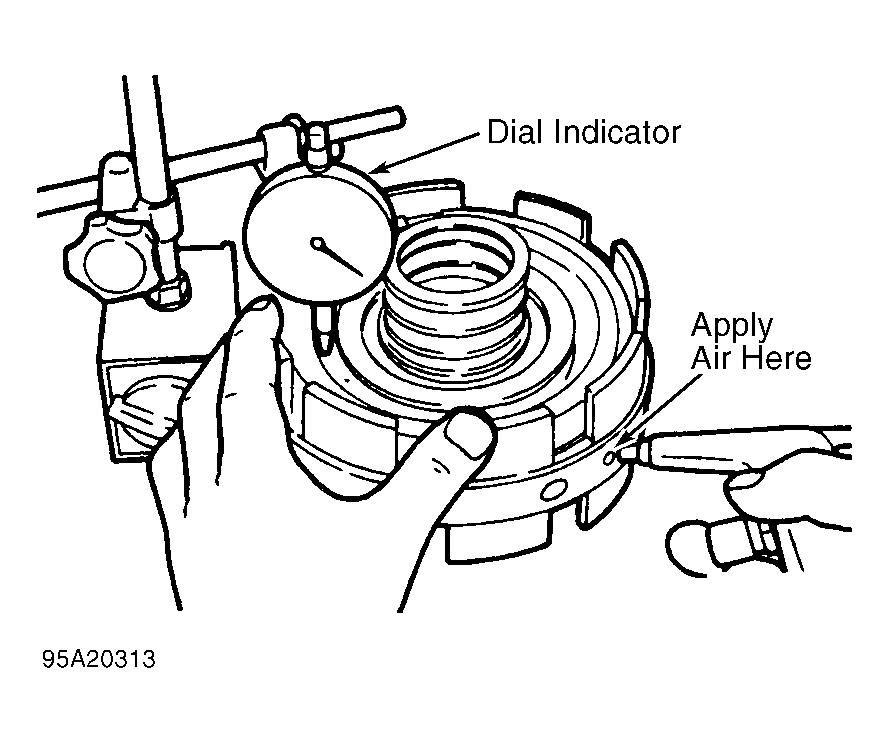

- Recheck No. 1 and No. 2 brake piston stroke. See Figure
and Figure

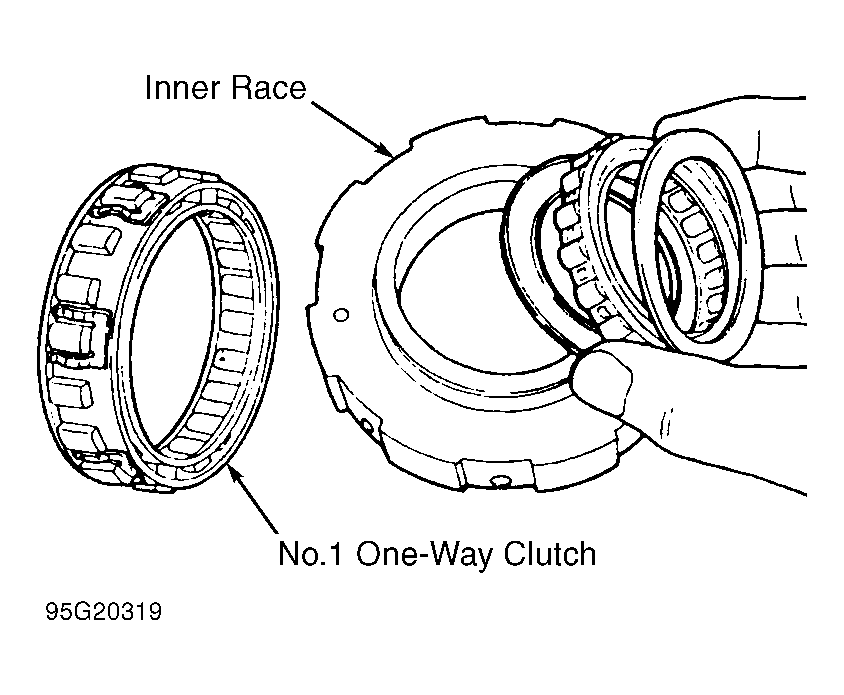

. If piston stroke is not as specified, check for incorrect reassembly of components. Reassemble sun gear and No. 1 one-way clutch. Ensure No. 1 one-way clutch is installed into outer race with spring cage facing forward. See Fig 1
. While turning one-way clutch, install sun gear into center support. Install snap ring on end of sun gear. Ensure sun gear rotates in counterclockwise direction only.

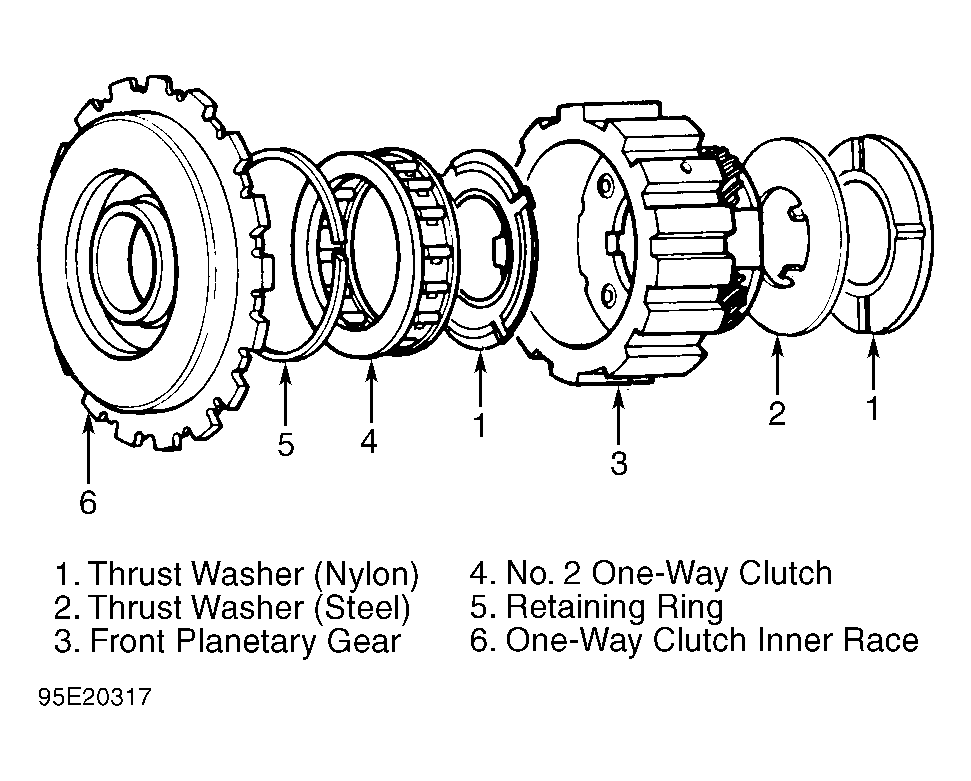

- Reassemble front planetary gear and No. 2 one-way clutch. See Figure

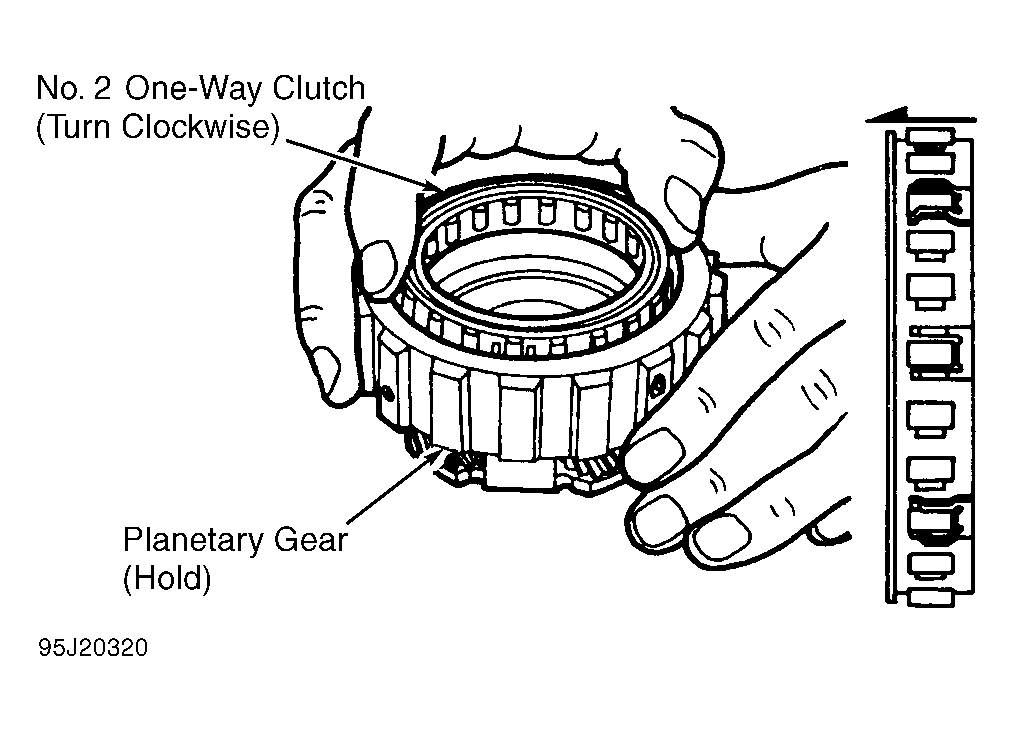

. Ensure thrust washer for No. 2 one-way clutch is installed with oil groove facing up. Ensure No. 2 one-way clutch is installed correctly into front planetary gear. See Fig 2
. Ensure front planetary gear rotates in counterclockwise direction only.
