Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | On left side of luggage compartment. See Figure . |

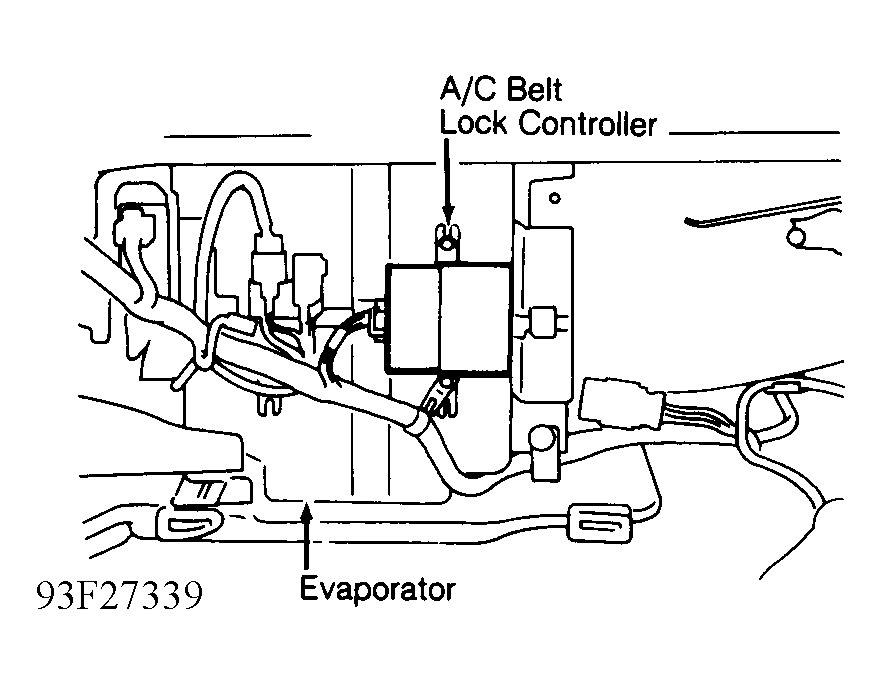

| A/C Belt Lock Controller | Mounted on evaporator case. See Figure . |
| A/C Control Unit | Behind center of dash, forward of center console. |
| Active-ECS Control Unit | On right side of luggage compartment. |
| Antenna Motor Control Unit | On left side of luggage compartment. |
| A/T Control Unit | Behind center console. |
| Auto. Light Shutoff Control Unit | Under center of dash, near ETACS control unit. See Figure . |
| Cruise Control Unit | Under center of dash, behind center console. |
| Electronic Power Steering (EPS) Control Unit | Behind ashtray, on center of dash. |

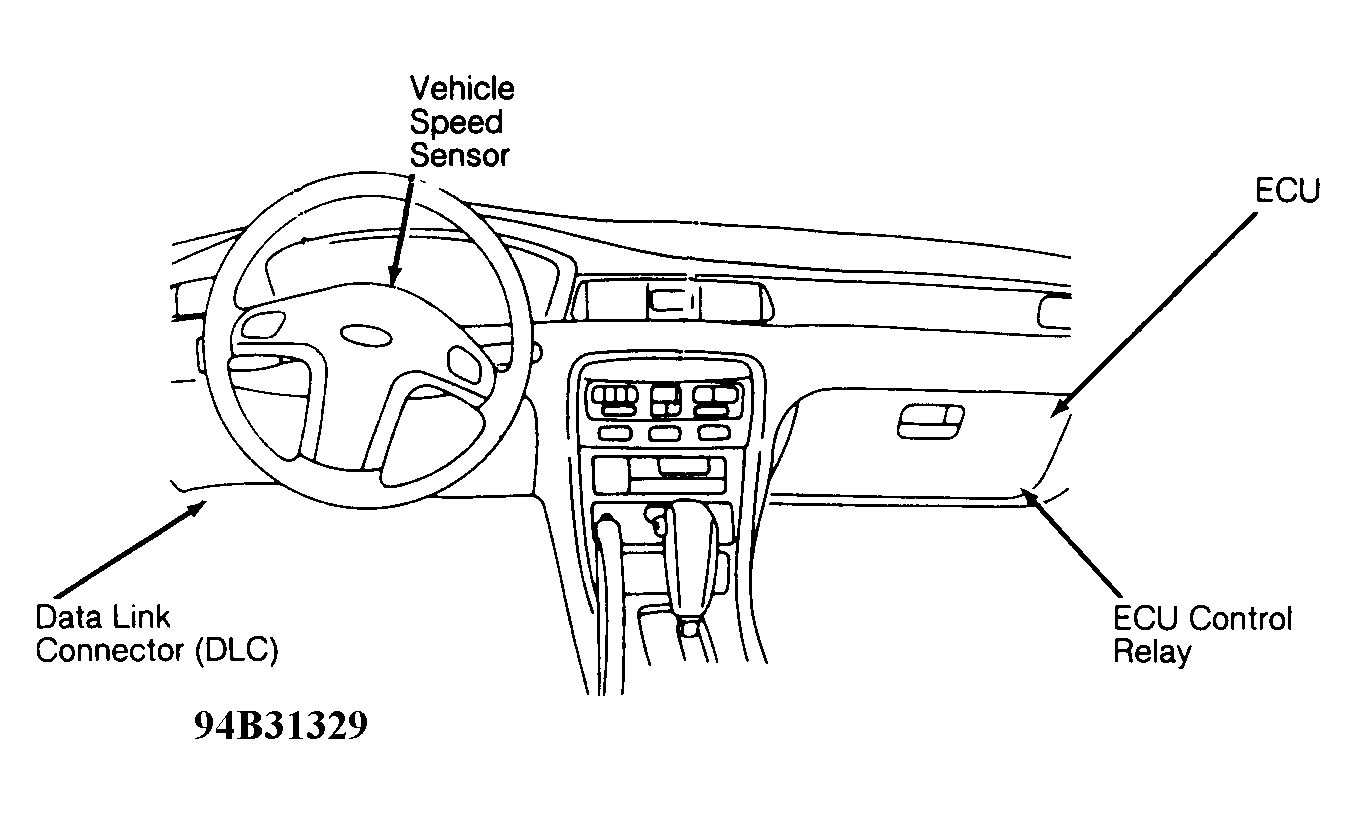

| ECU (Location) (Engine Control Unit) | Behind right side of dash. See Figure . |

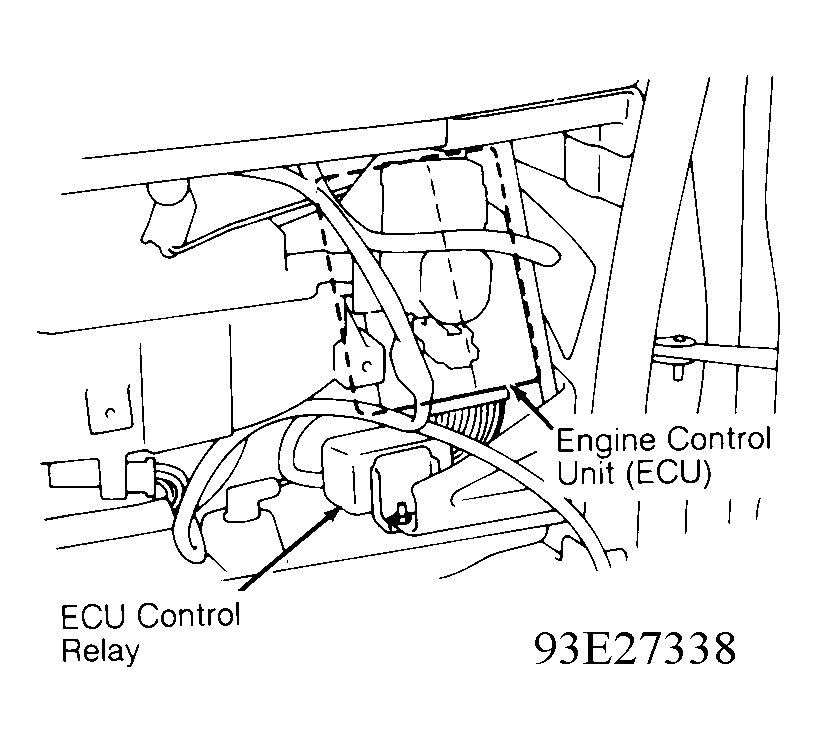

| ECU (View) (Engine Control Unit) | Behind right side of dash. See Figure . |
| Electronic Time & Alarm Control System (ETACS) Control Unit | Behind center of dash, forward of center console. See Figure . |
| Power Seat Control Unit | Under driver's seat. |
| Sun Roof Control Unit | Under headliner, near passenger-side sun visor. |

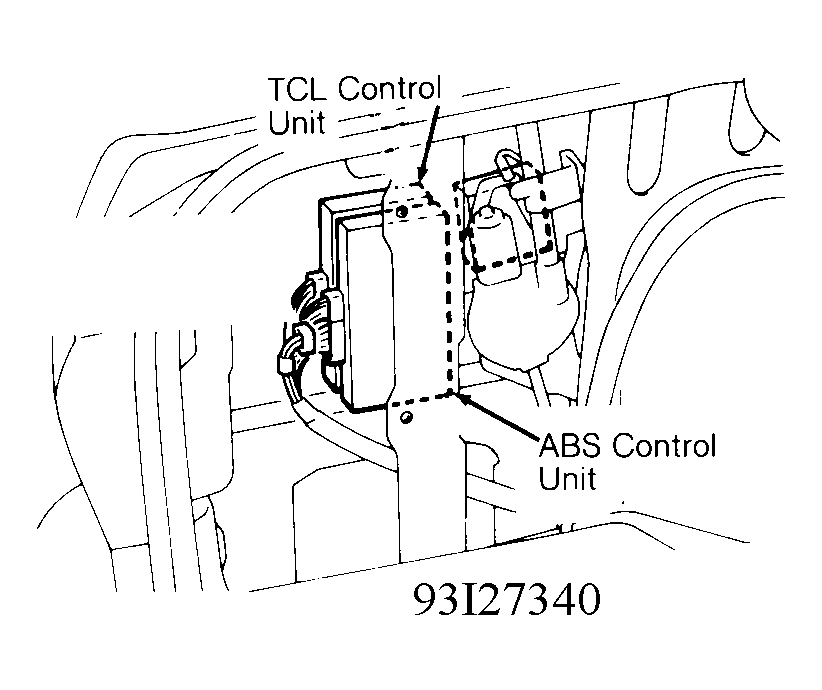

| Traction Control (TCL) Control Unit | On right side of luggage compartment. See Figure . |
