Control Valve Assembly: Installation

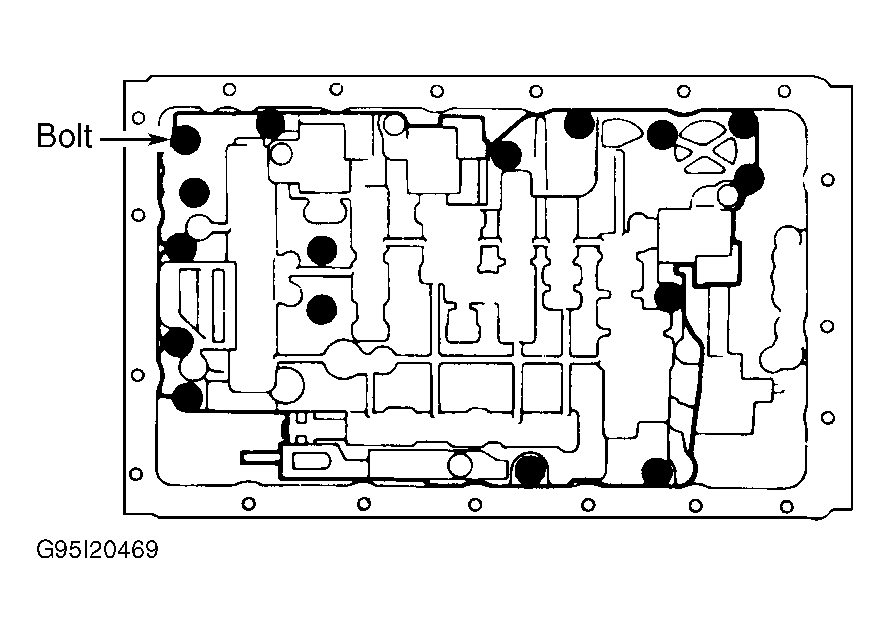

To install, reverse removal procedure. Ensure manual shift lever in transmission case aligns with manual valve of control valve assembly. Connect throttle cable to throttle cam. Tighten control valve assembly bolts to 89 INCH lbs. (10 N.m). Tighten oil pan bolts to 71 INCH lbs. (8 N.m). Fill transmission with ATF to proper fluid level.
