Mitsubishi
›
1995
›
Pickup Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Power Mirrors
›
Component Tests
›
Remote Control Mirror Assembly
Remote Control Mirror Assembly

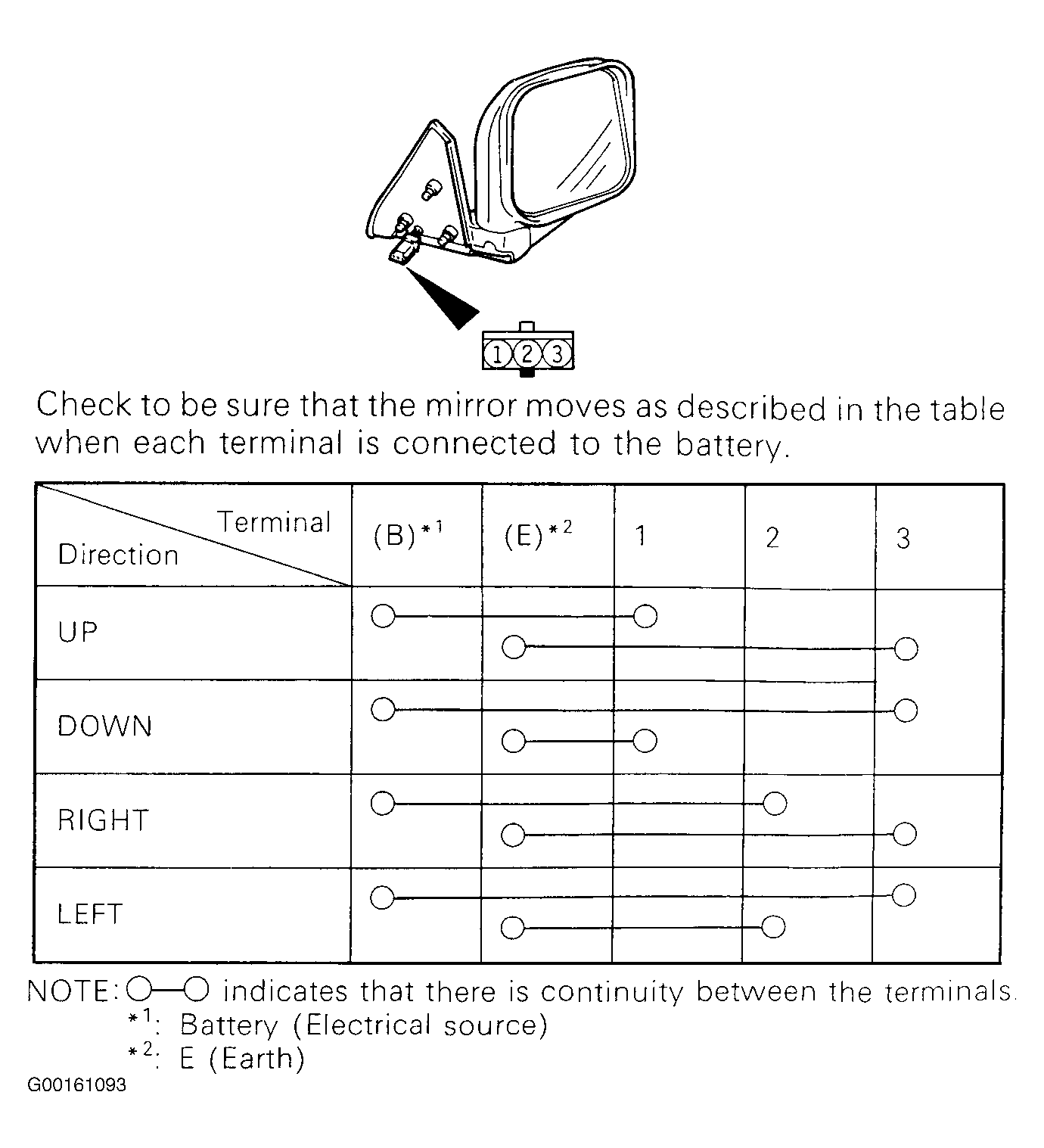

Fig 1: Testing Remote Control Mirror
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
