Symptom Tests: Notes

NOTE: To diagnose symptom, See Fig 1 , then go to appropriate test under CIRCUIT TESTS .

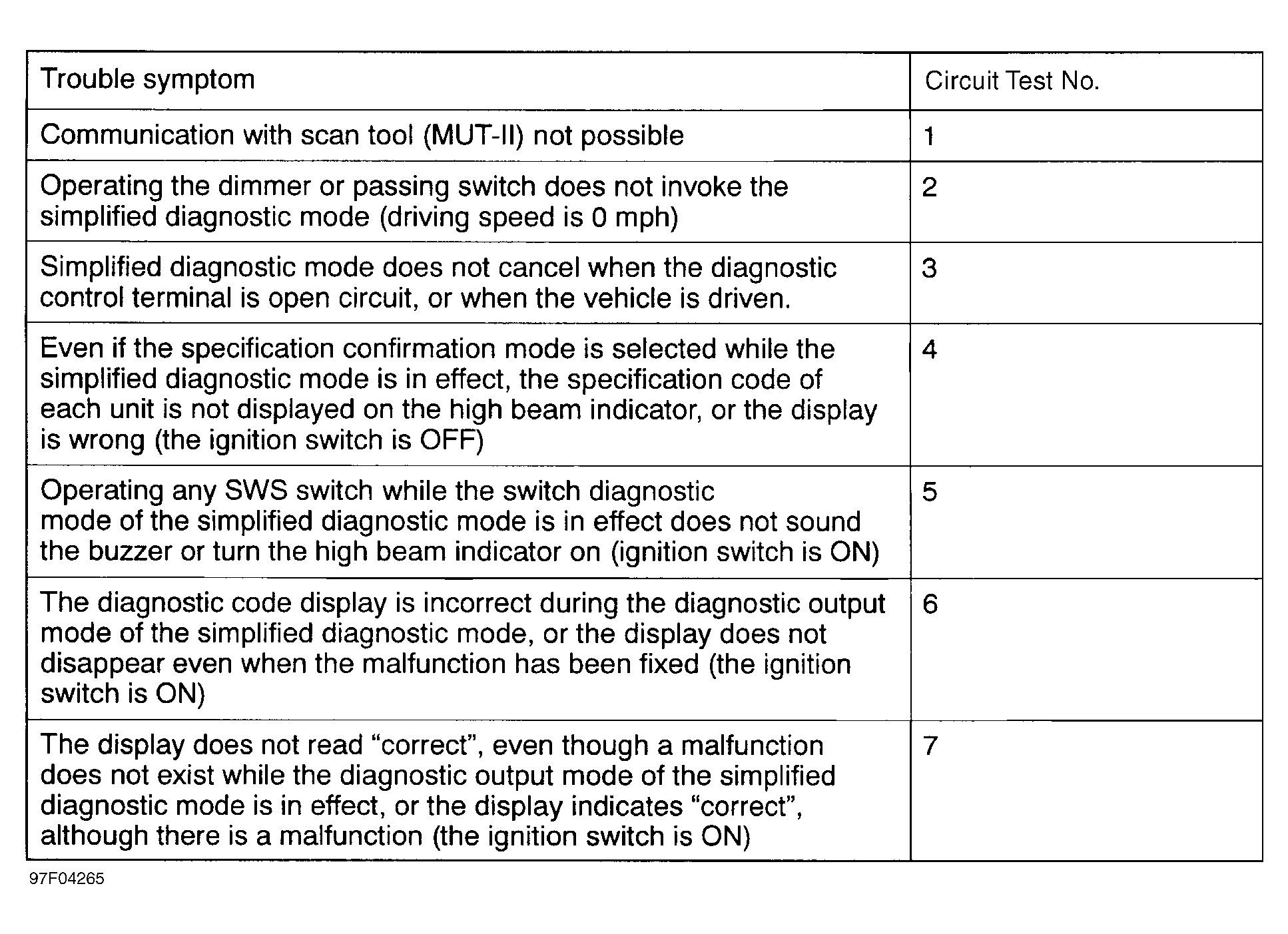

Fig 1: Symptom Chart

G97F04265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
