Symptom Testing
›
Symptom Charts
Symptom Charts

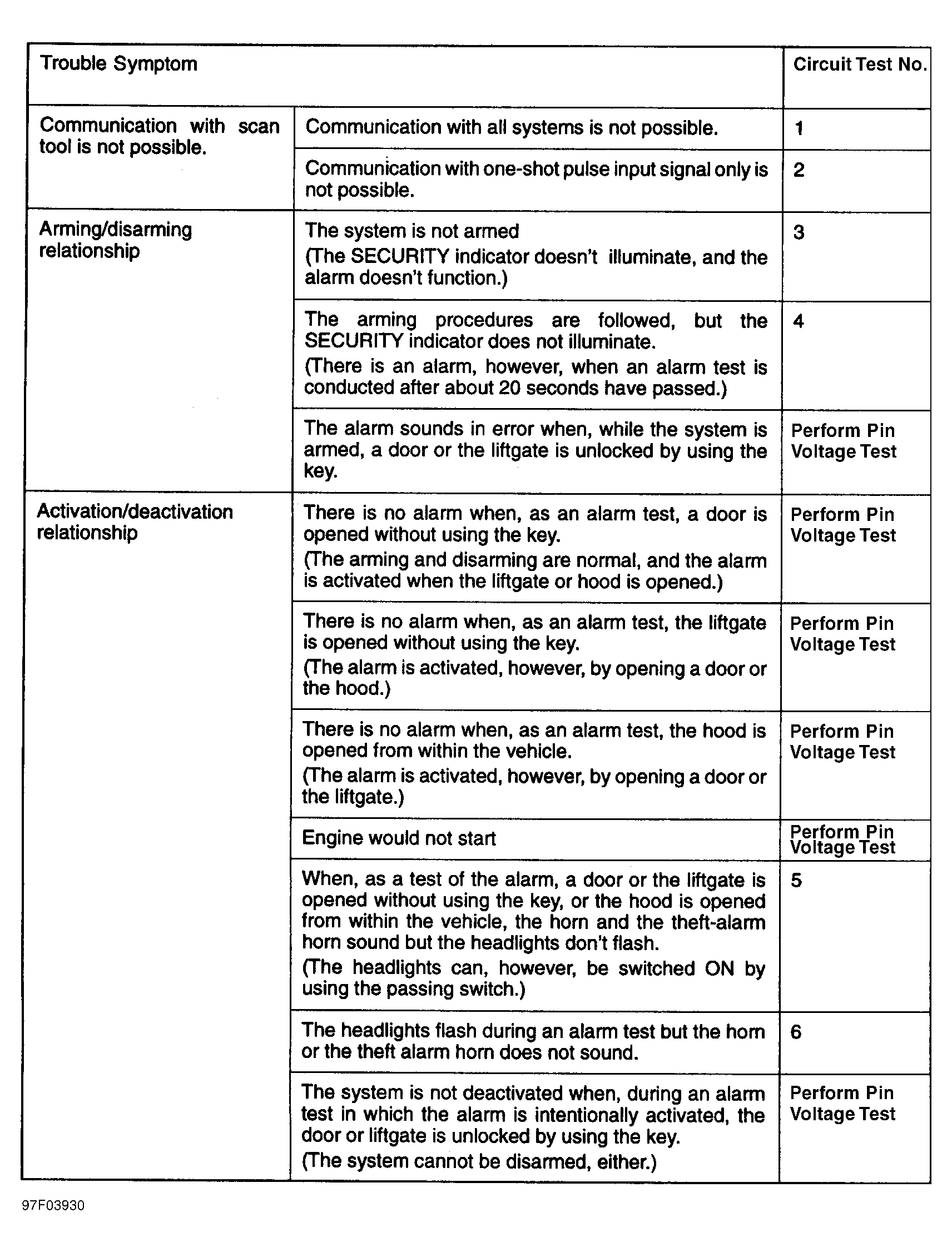

Fig 1: Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
