Engine COMPARTMENT 2.4L: Notes

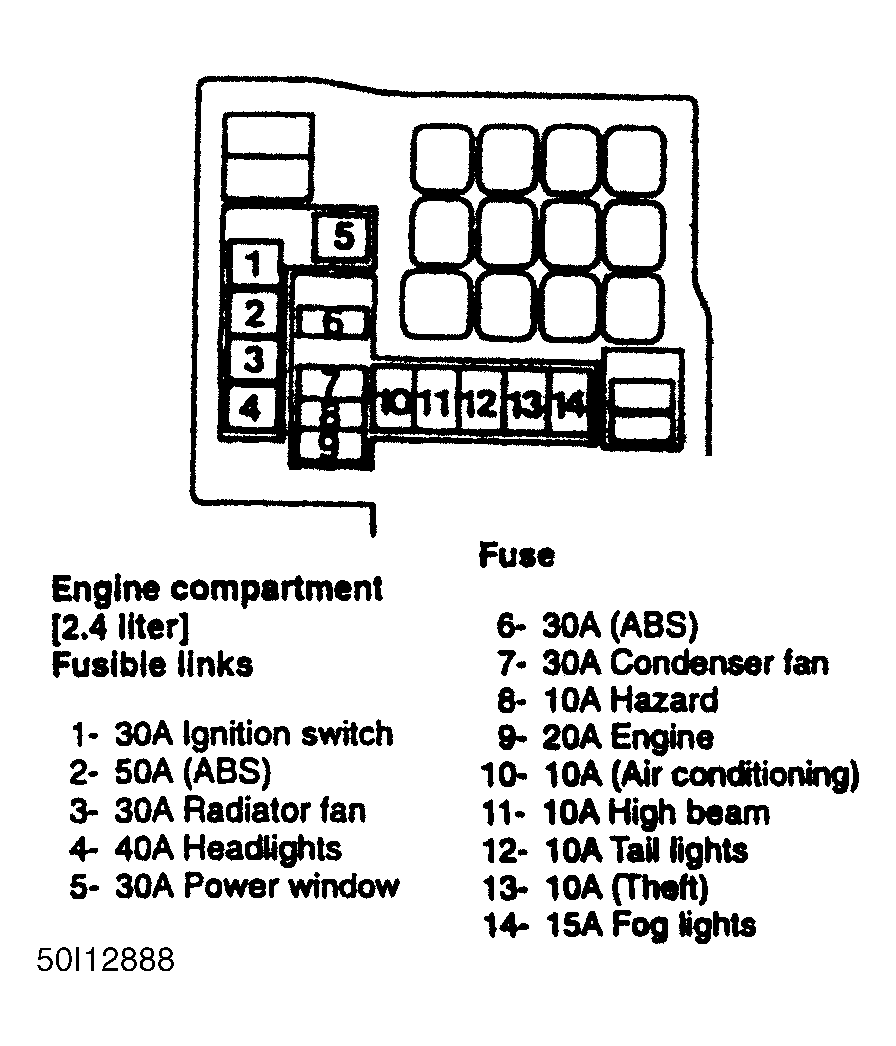

Fig 1: Engine Compartment Fuse & Fusible Links (2.4L)
G50I12888Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
