Diagnostic Detection Logic

For diagnostic detection logic, see Fig 1 .

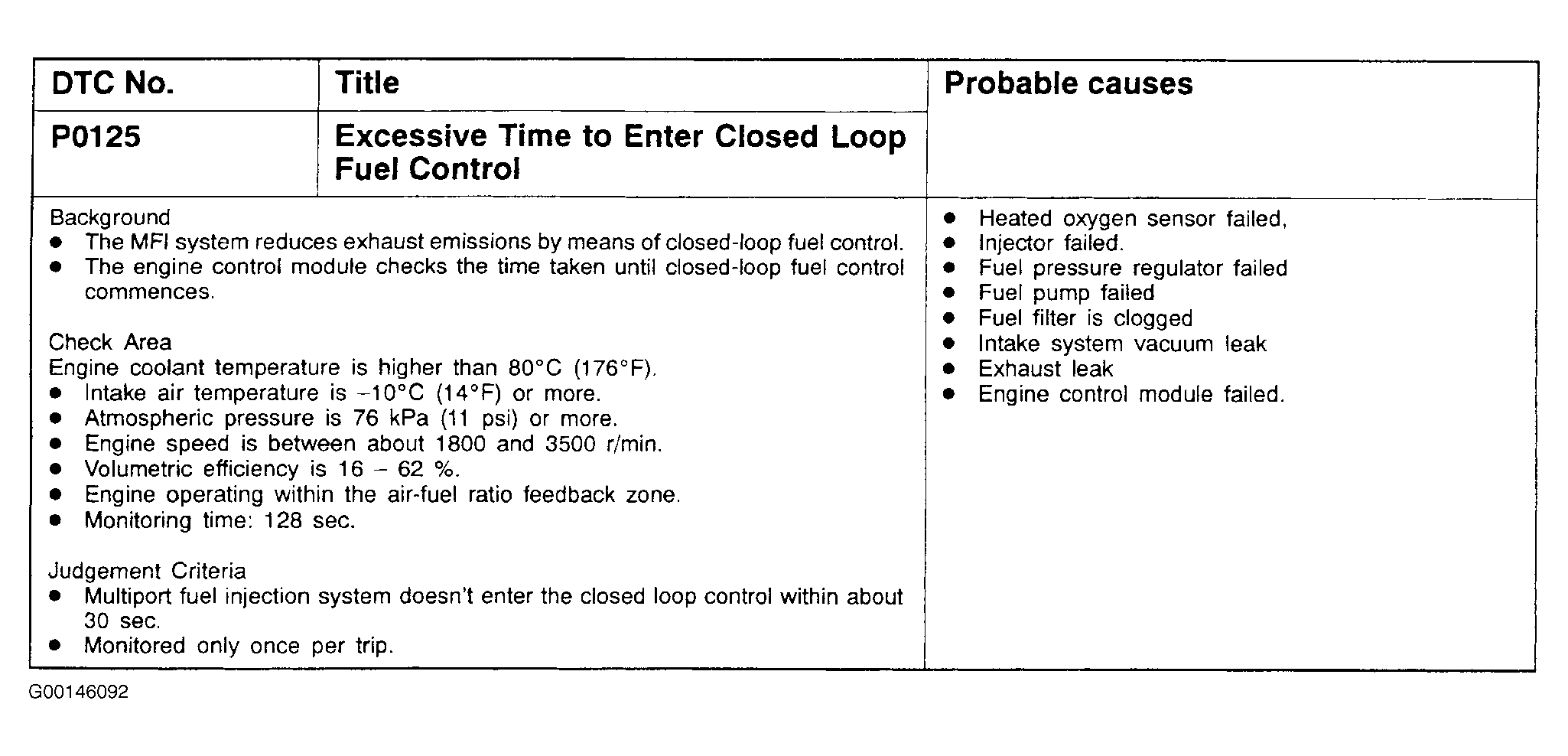

Fig 1: P0125: Excessive Time To Enter Closed Loop Fuel Control (Diagnostic Detection Logic)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
