DTC P0505: Idle Control System Failure
›
Diagnostic Detection Logic
Diagnostic Detection Logic
For diagnostic detection logic, see
Fig 1
.

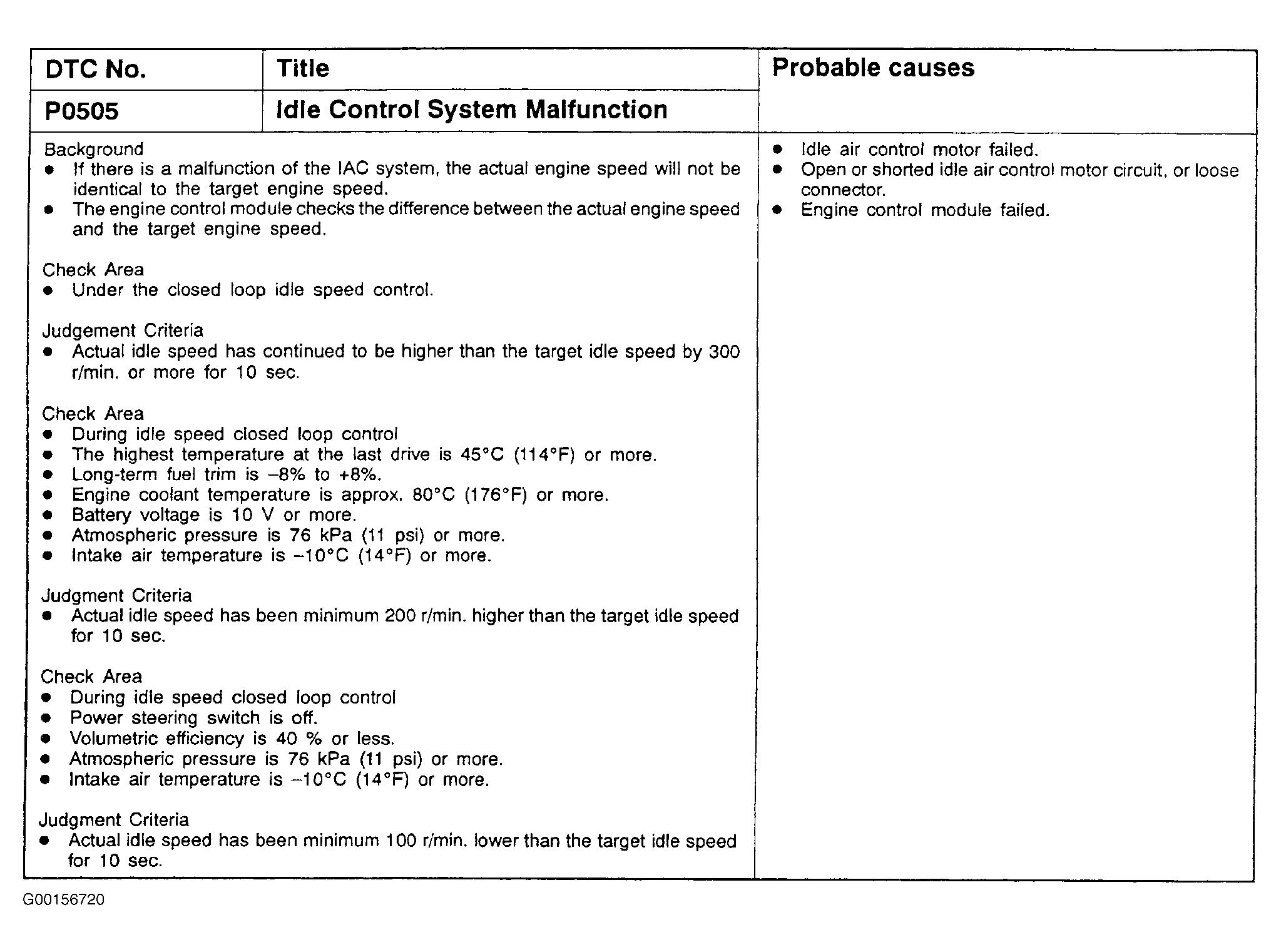

Fig 1: P0505: Idle Control System Malfunction (Diagnostic Detection Logic)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
