4WD Control Unit

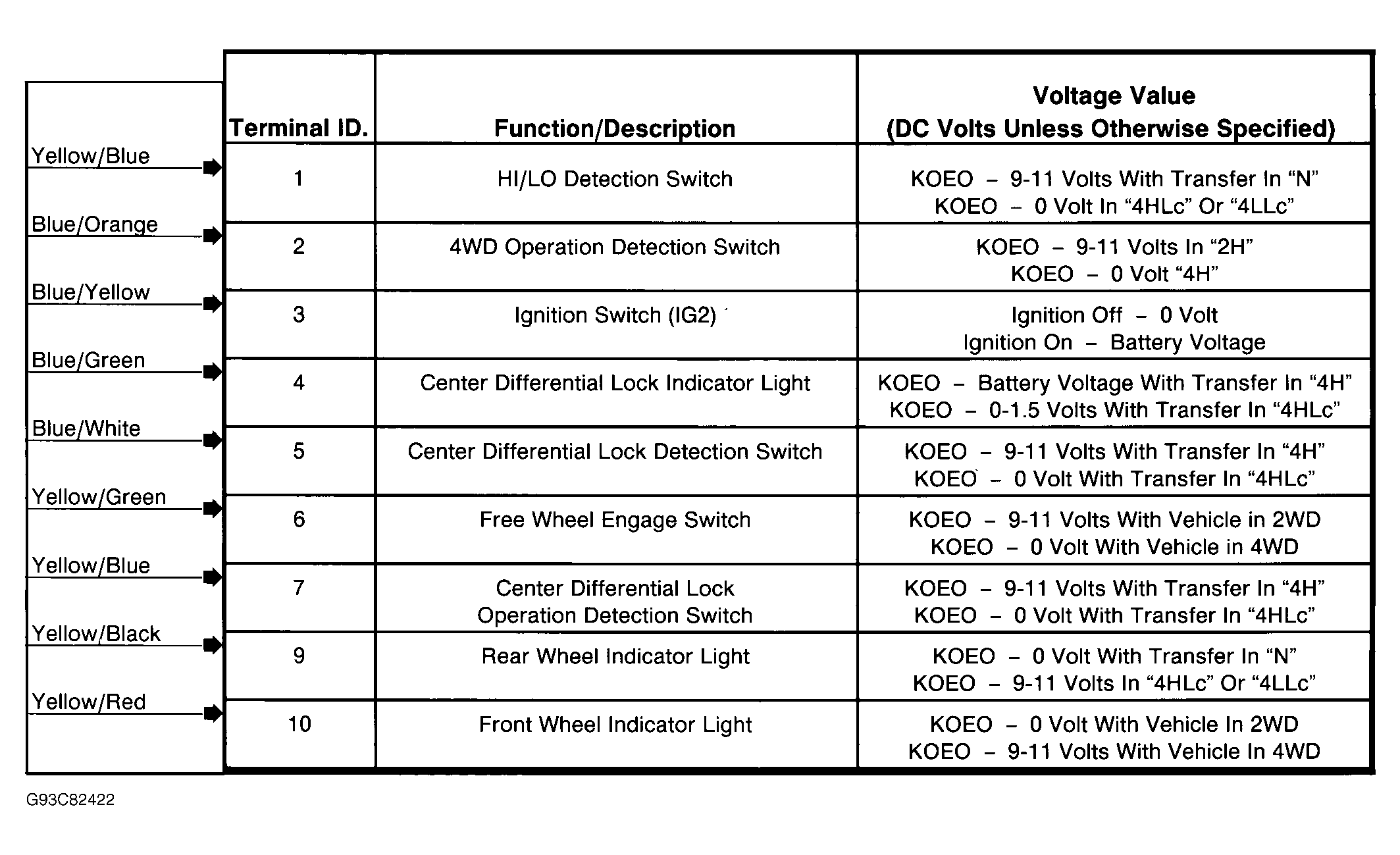

Remove radio and remove 4WD control unit. Disconnect control unit harness connector. Backprobe harness connector. Check voltage between each individual terminal and ground terminal No. 8 (Black wire). See Fig 1 and Fig 2 . If after all tests have been completed system is not operating properly, substitute 4WD control unit with known-good unit and retest.
