Home › Mitsubishi › 1998 › Eclipse GSX, Automatic › Repair and Diagnosis › Body & Frame › Power Windows › Symptom Tests › Notes

Symptom Tests: Notes

NOTE: To diagnose symptom, see Fig 1 , then go to appropriate test under CIRCUIT TESTS  .

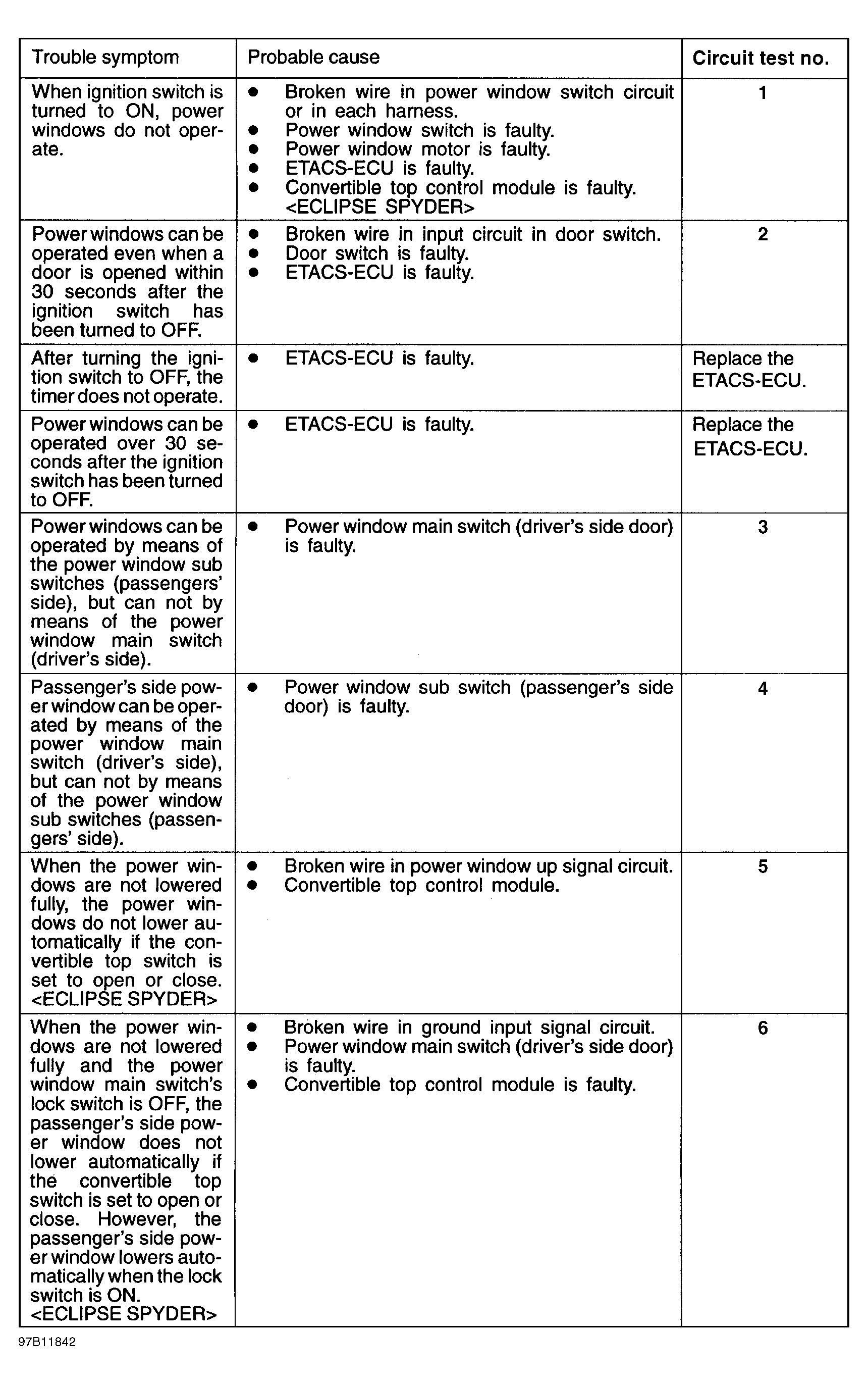

Fig 1: Symptom Chart
G97B11842Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
