Vacuum Diagrams: Introduction

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses, which cause driveability and/or computer-indicated malfunctions.

NOTE: California and Federal applies to installed emission equipment, which may be verified by underhood Emission Control label. California emissions may be available in other states.

NOTE: Always refer to Emission Control label in engine compartment before attempting service. If manual and label differ, always use emission label specifications.

Fig 1: Vacuum Diagram (Diamante With Traction Control)

G99F50612

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Vacuum Diagram (Diamante Without Traction Control)

G99G50613

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

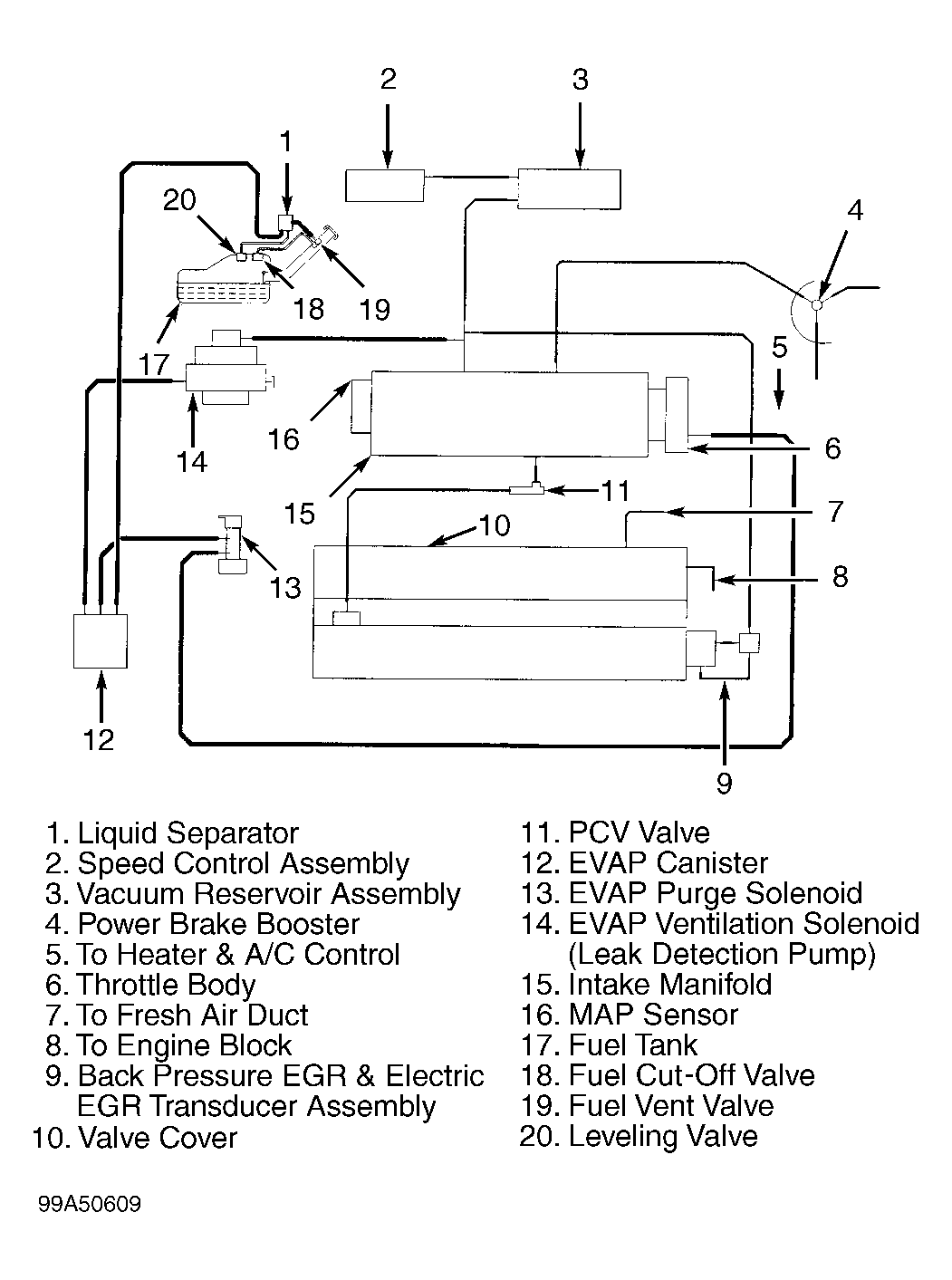

Fig 3: Vacuum Diagram (Eclipse 2.0L Non-Turbo)

G99A50609

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

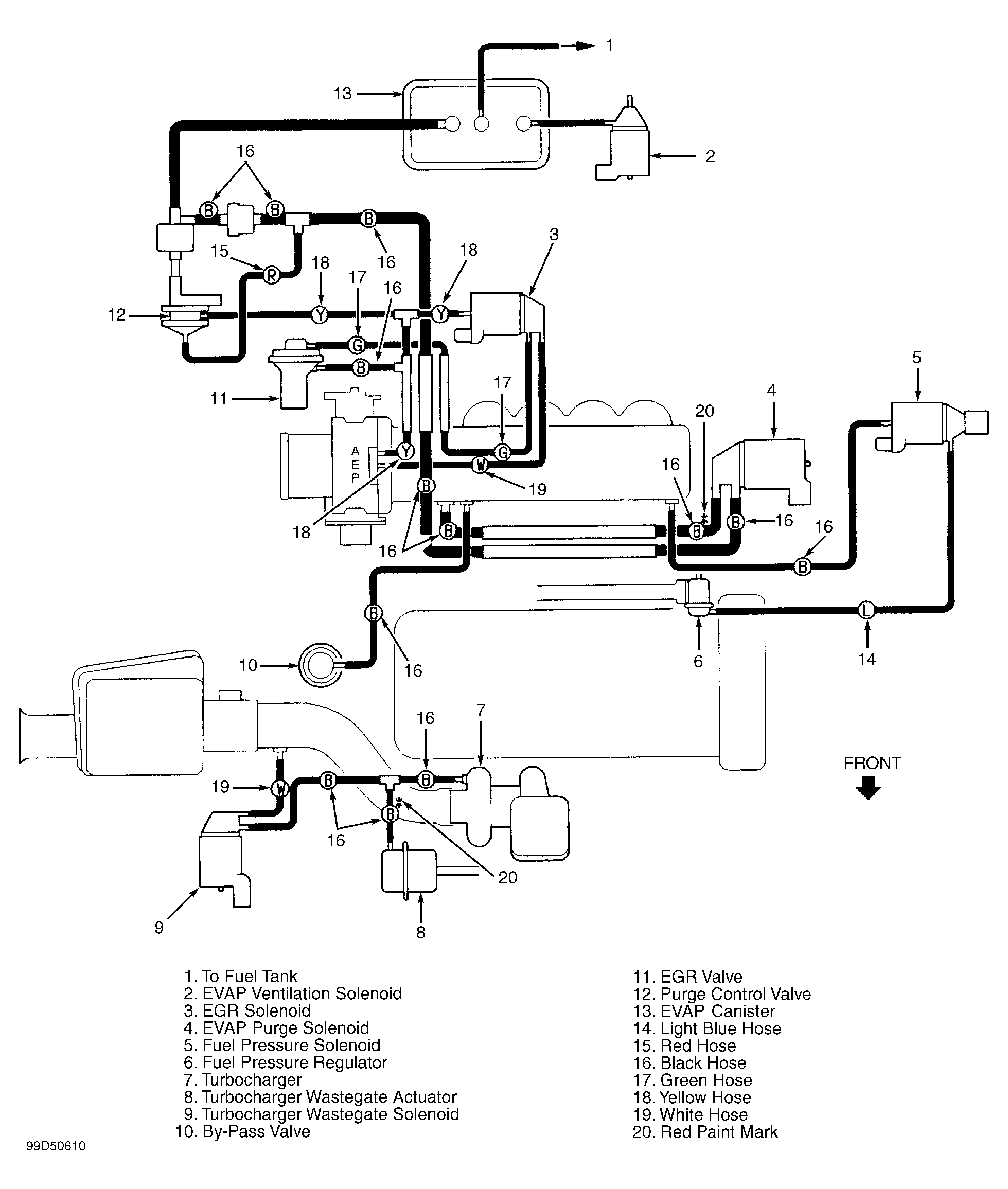

Fig 4: Vacuum Diagram (Eclipse 2.0L Turbo)

G99D50610

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

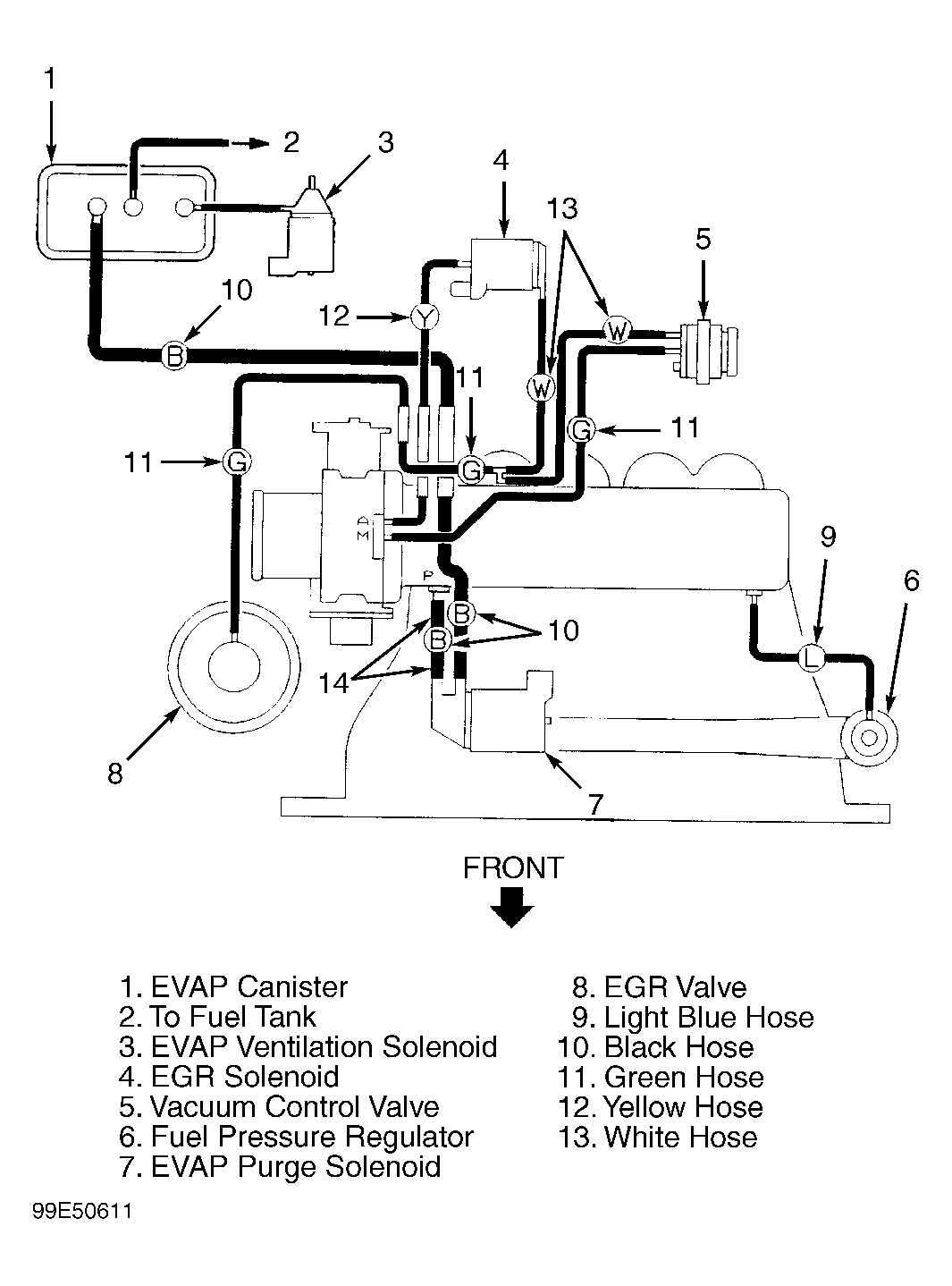

Fig 5: Vacuum Diagram (Eclipse 2.4L)

G99E50611

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

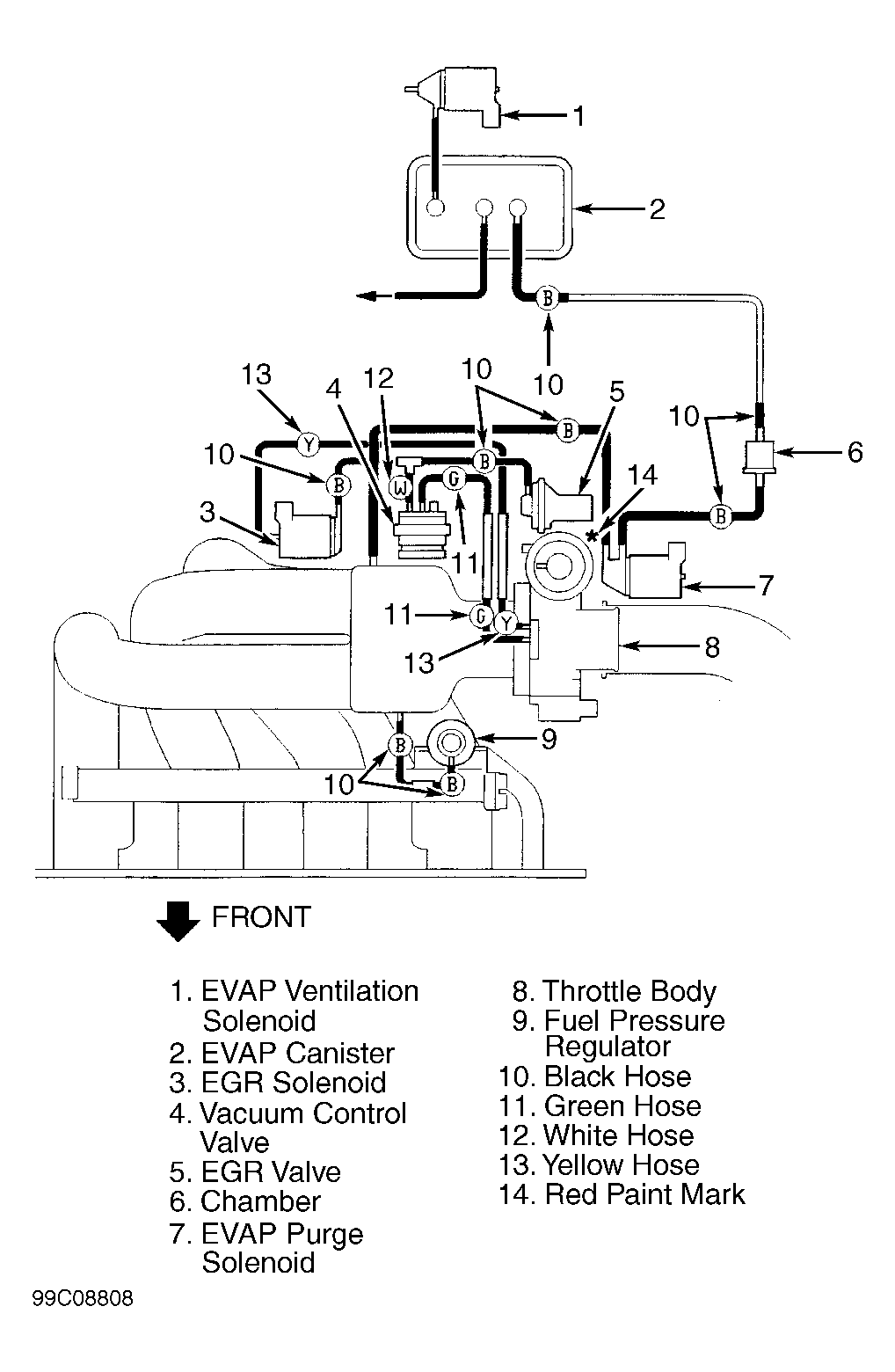

Fig 6: Vacuum Diagram (Galant 2.4L)

G99C08808

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

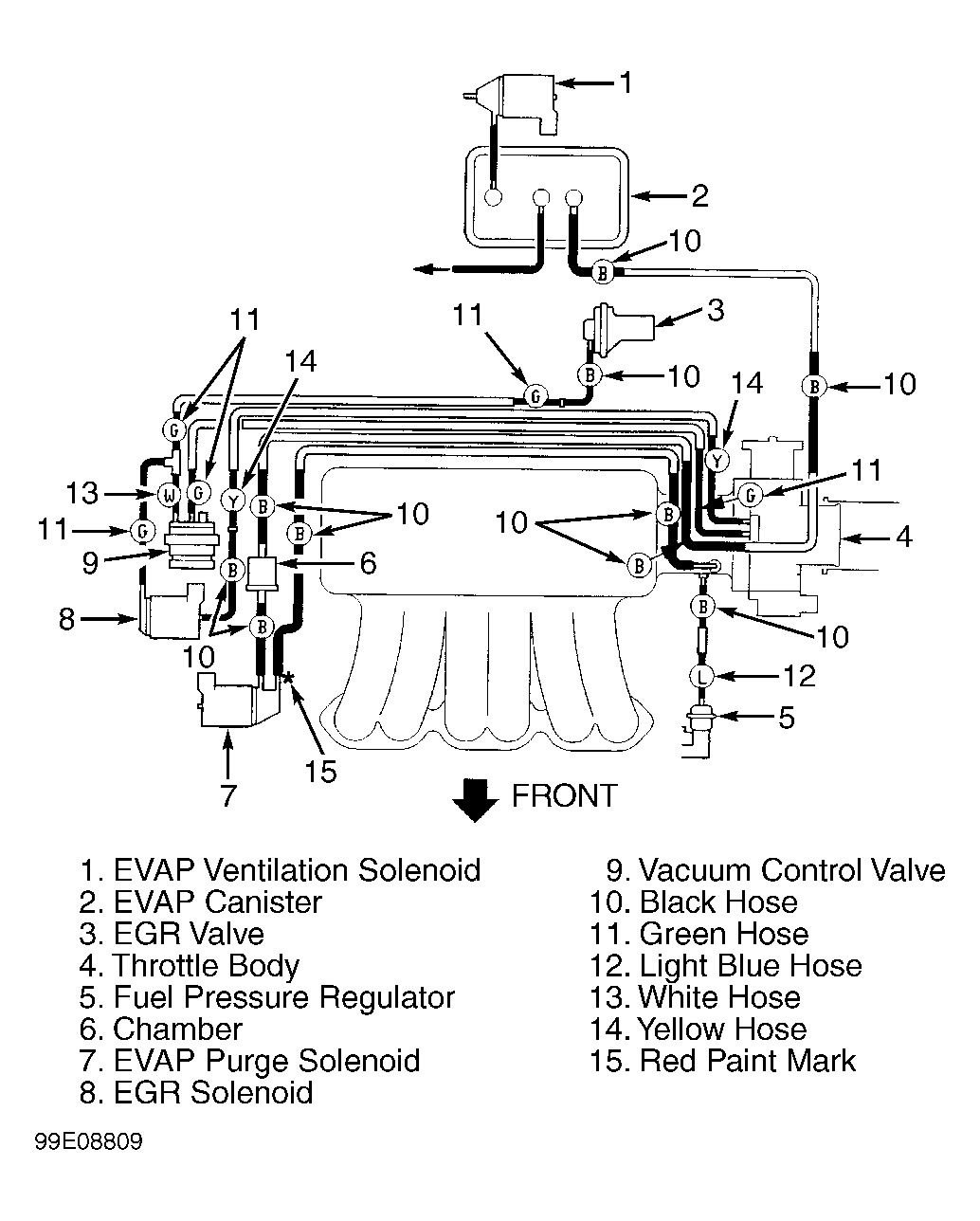

Fig 7: Vacuum Diagram (Galant 3.0L)

G99E08809

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 8: Vacuum Diagram (Mirage 1.5L)

G99F50620

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 9: Vacuum Diagram (Mirage 1.8L)

G99G50621

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 10: Vacuum Diagram (Montero)

G99A08826

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

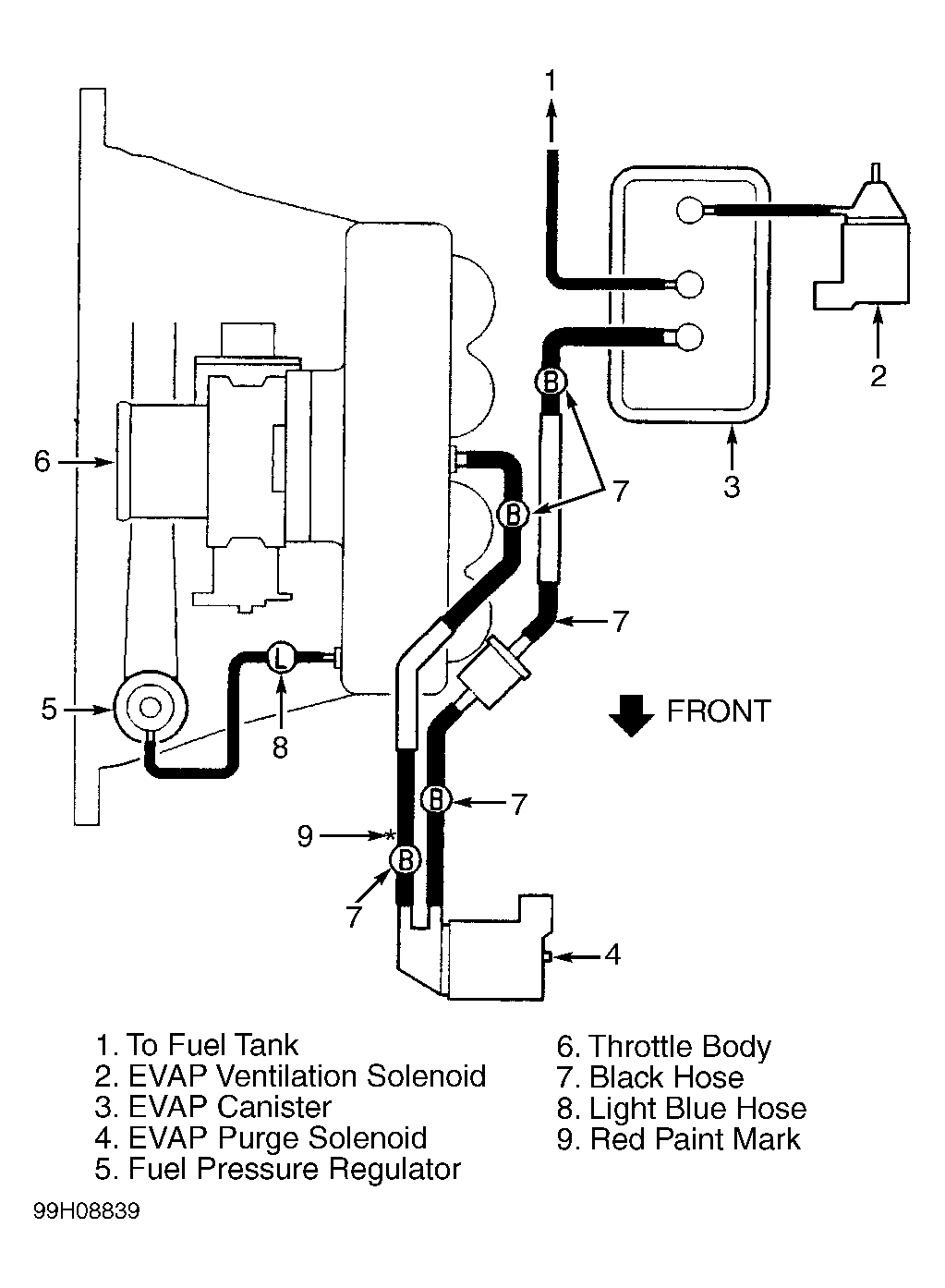

Fig 11: Vacuum Diagram (Montero Sport 2.4L - California)

G99H08839

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

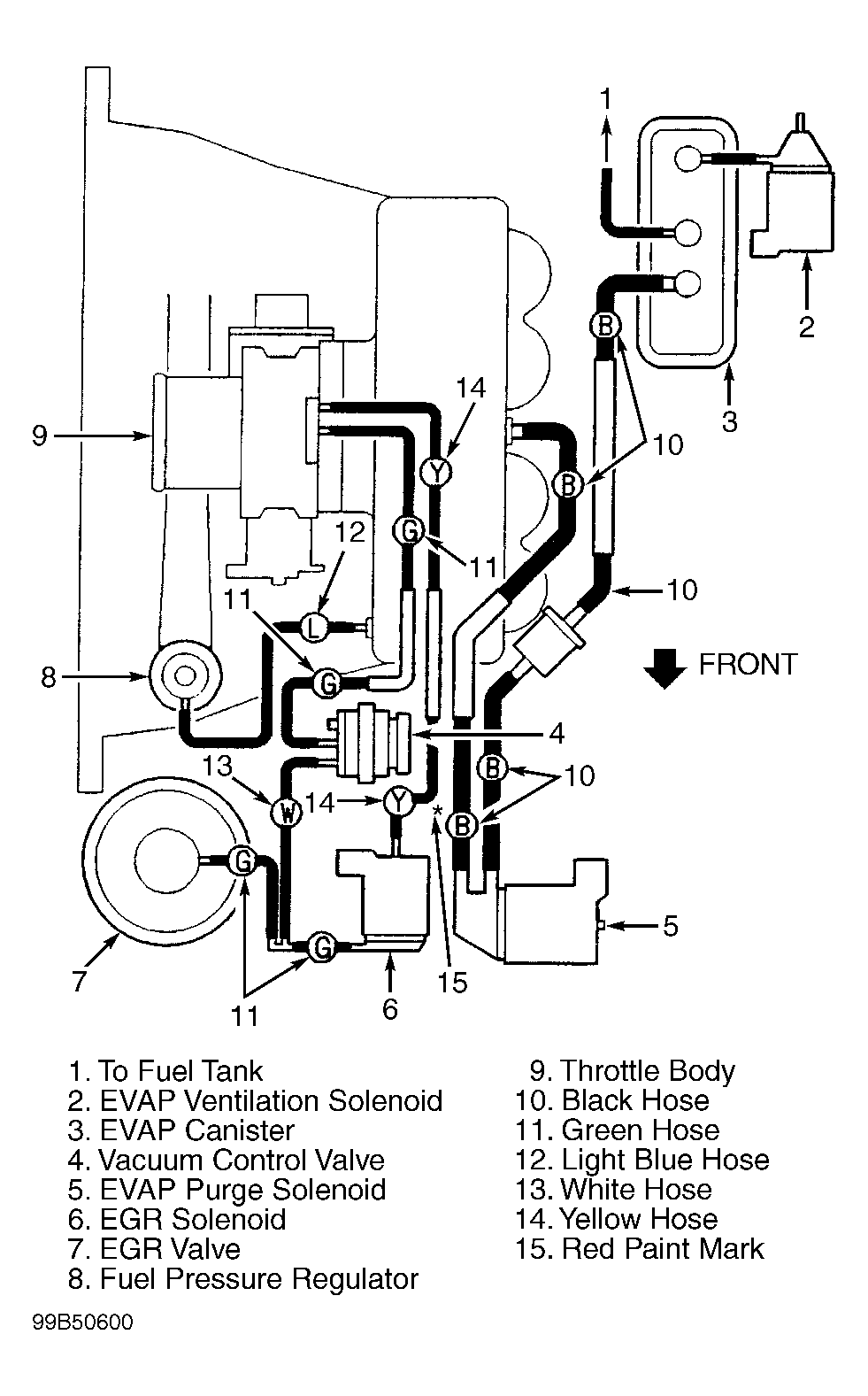

Fig 12: Vacuum Diagram (Montero Sport 2.4L - Federal)

G99B50600

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 13: Vacuum Diagram (Montero Sport 3.0L/3.5L)

G99C50601

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

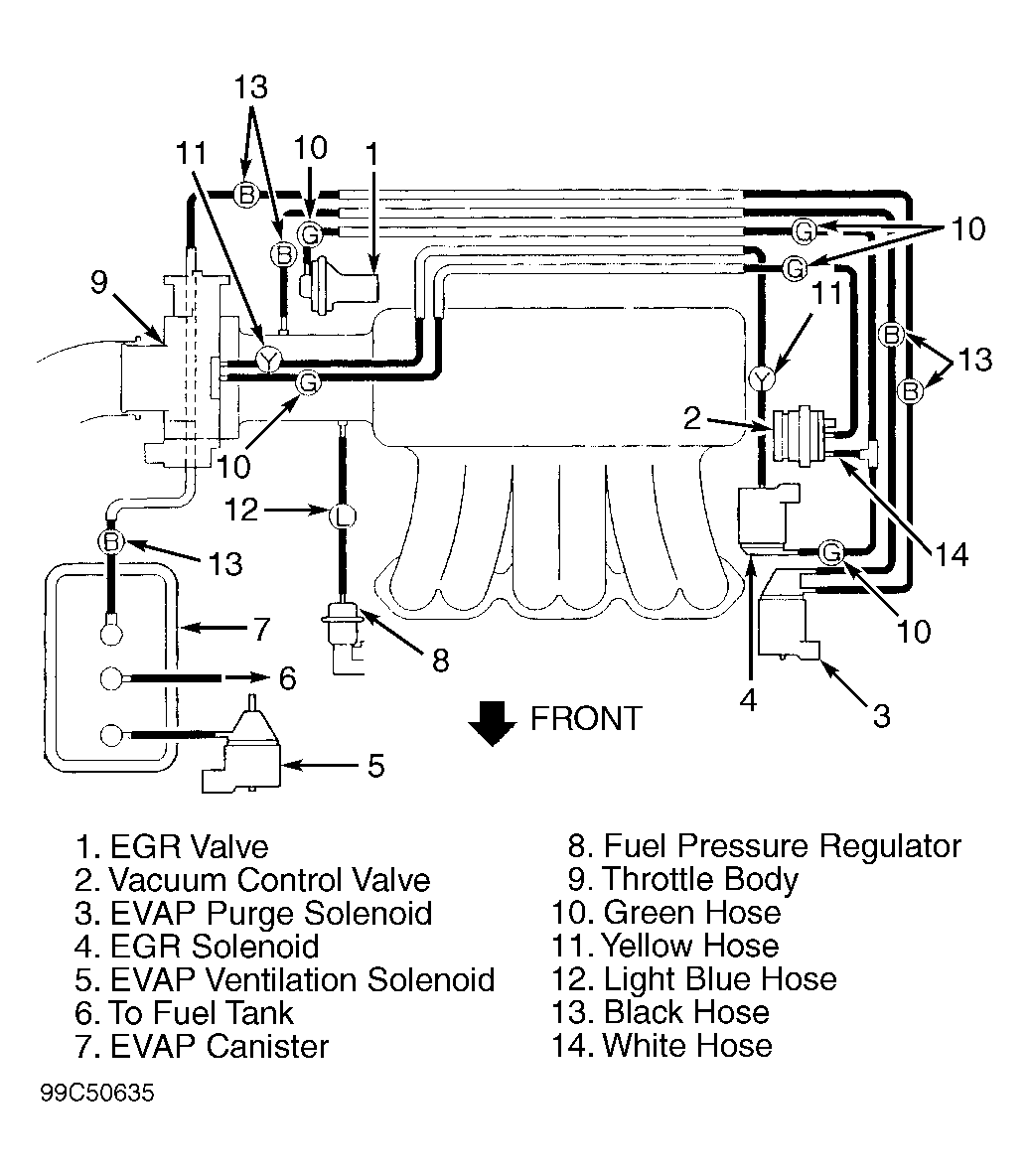

Fig 14: Vacuum Diagram (3000GT DOHC Non-Turbo)

G99C50635

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

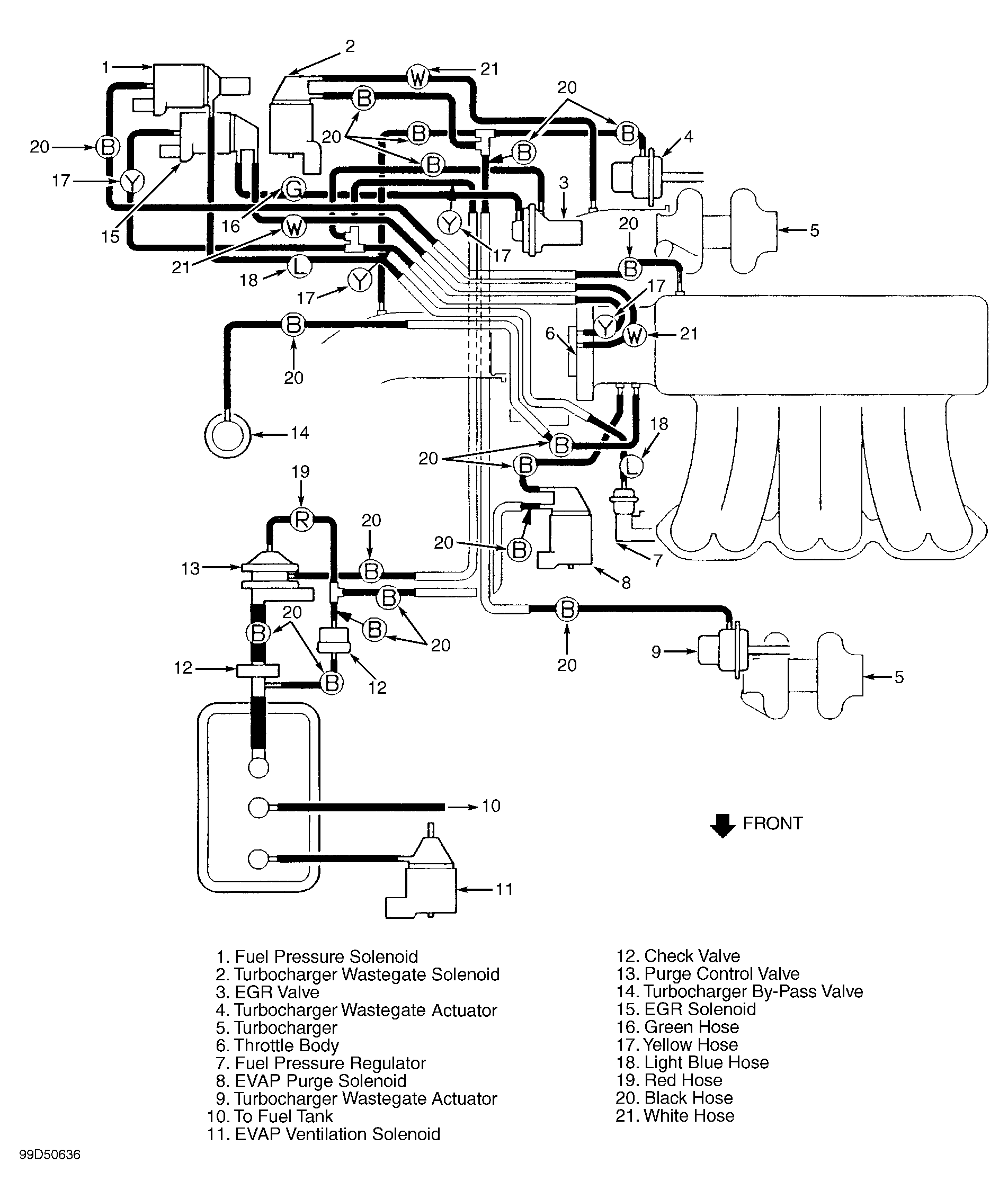

Fig 15: Vacuum Diagram (3000GT DOHC Turbo)

G99D50636

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

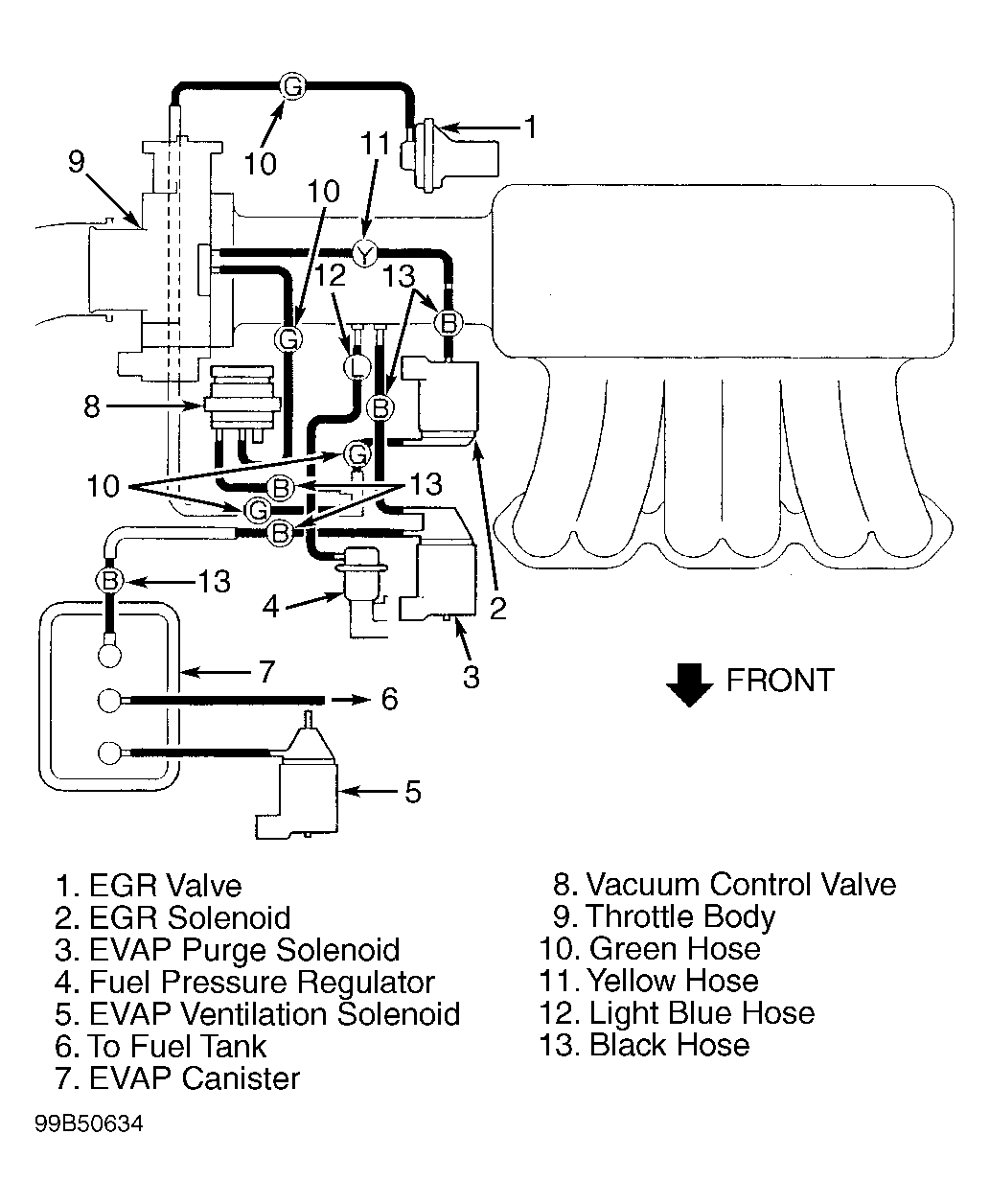

Fig 16: Vacuum Diagram (3000GT SOHC)

G99B50634

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
