Switch Identification
There are 5 detection switches mounted in the top of the transfer case. These switches send signals to Transmission Control Module (TCM). There are 2 types of switches used, built-in ball actuator type and separate ball actuator type. Use care when removing switches to ensure spring and actuator ball is not lost. Ensure switches are located in the correct positions.

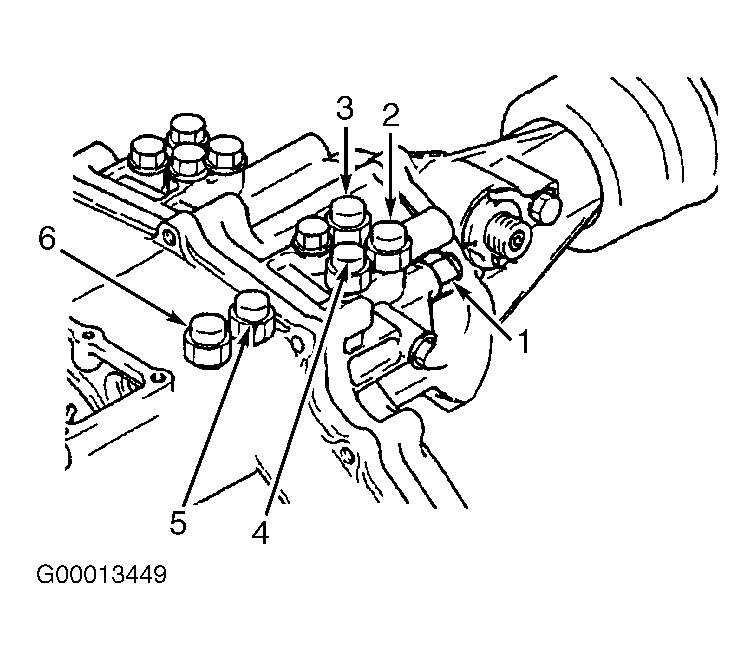

DETECTION SWITCH IDENTIFICATION
| Switch Function (1) | Connector Color | ||
|---|---|---|---|
| Low Range Operation (1) | White | ||
| 4WD Operation (2) | Black | ||
| High Range/Low Range Detection (3) | White | ||
| Center Differential Lock Operation (4) | Brown | ||
| 2WD/4WD Detection (5) | Black | ||
| Center Differential Lock Detection (6) | Brown | ||
|
|||
