Transfer Case Disassembly: Notes

NOTE: Refer to illustrations for component removal and disassembly. Remove components in order listed in illustration legends. See Fig 1 -Fig 3 . See appropriate sub-component procedures for additional removal and installation information.

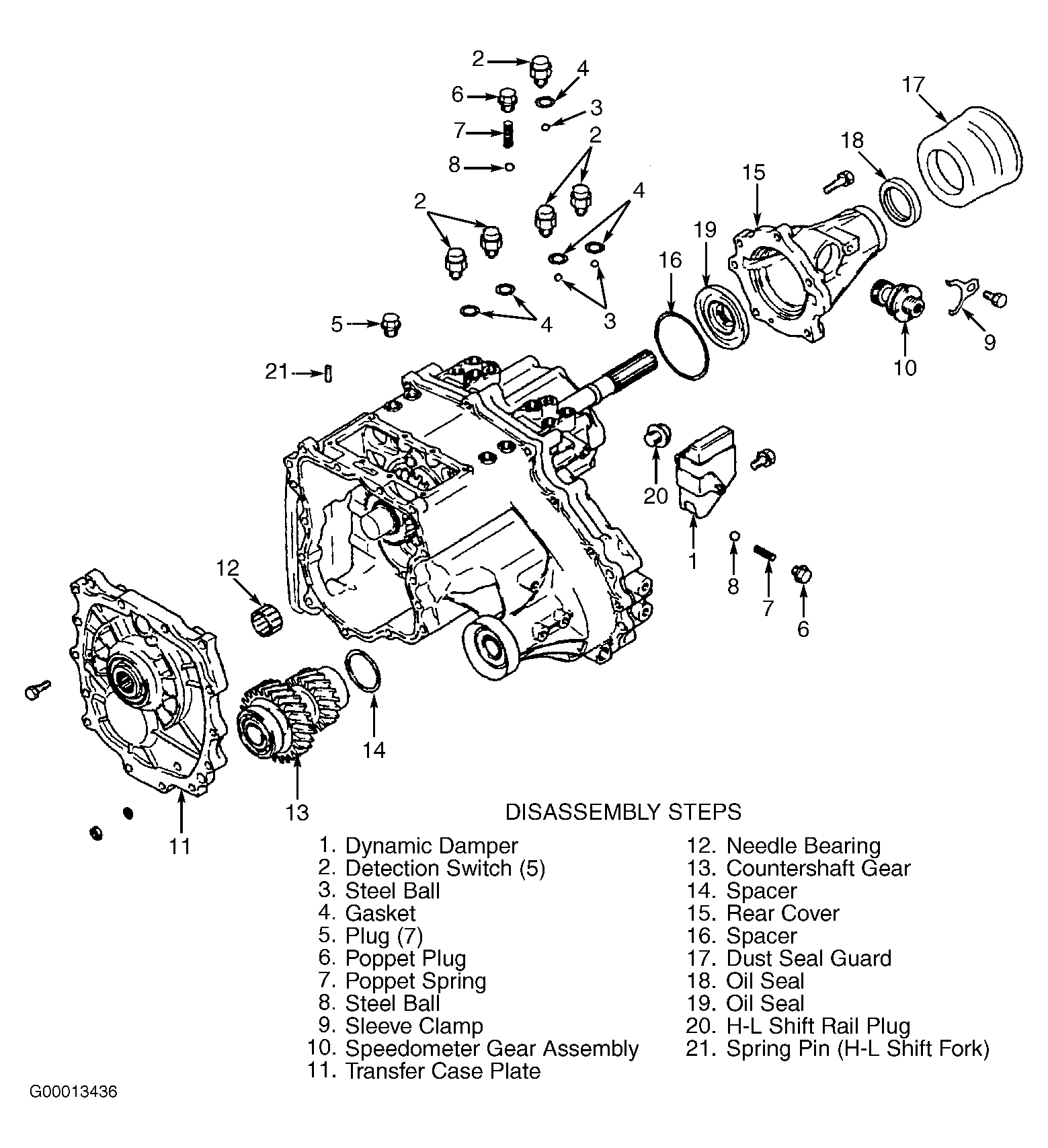

Fig 1: Disassembling Transfer Case (1 Of 3 - Steps 1-21)
G00013436Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

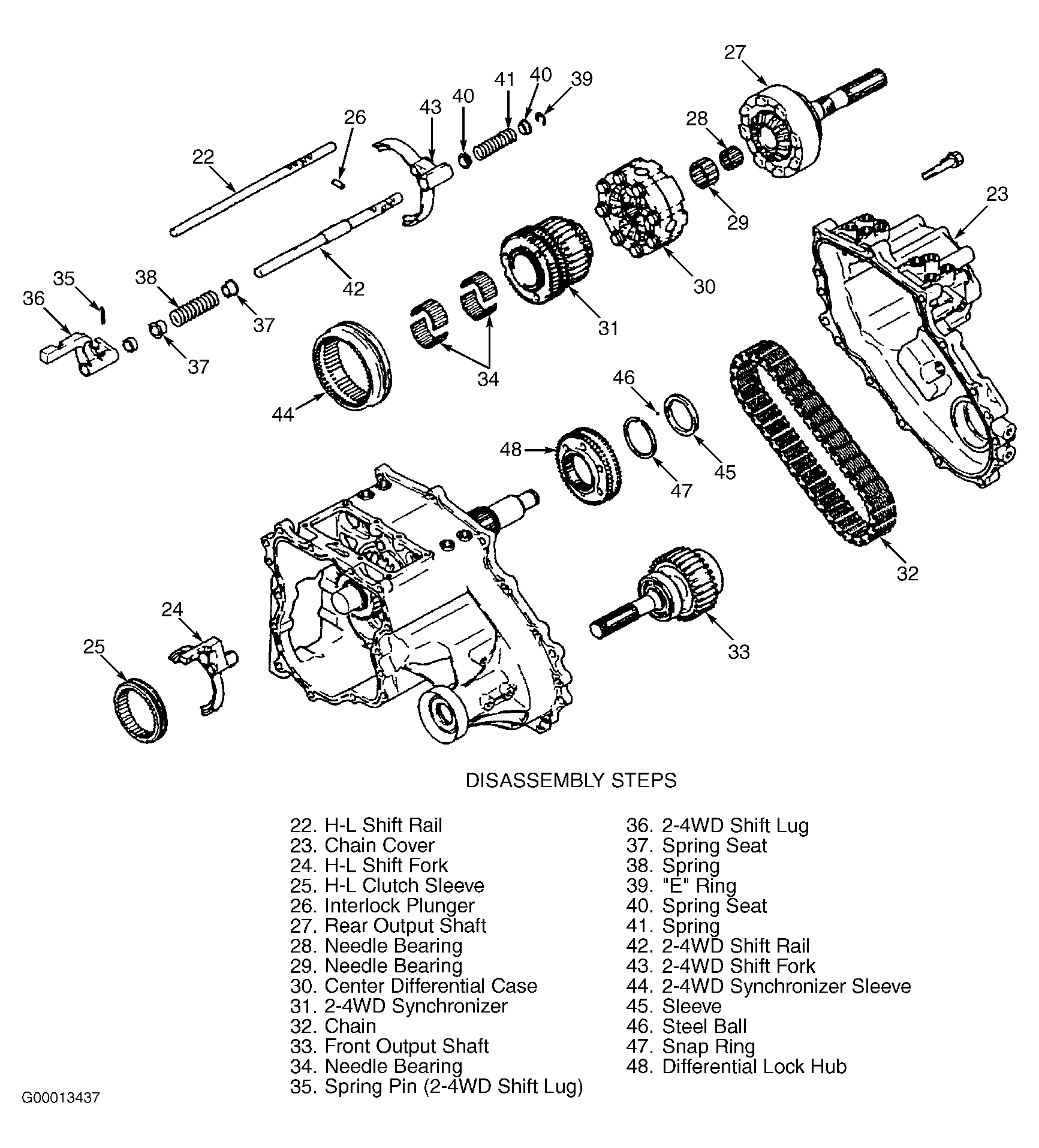

Fig 2: Disassembling Transfer Case (2 Of 3 - Steps 22-48)
G00013437Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

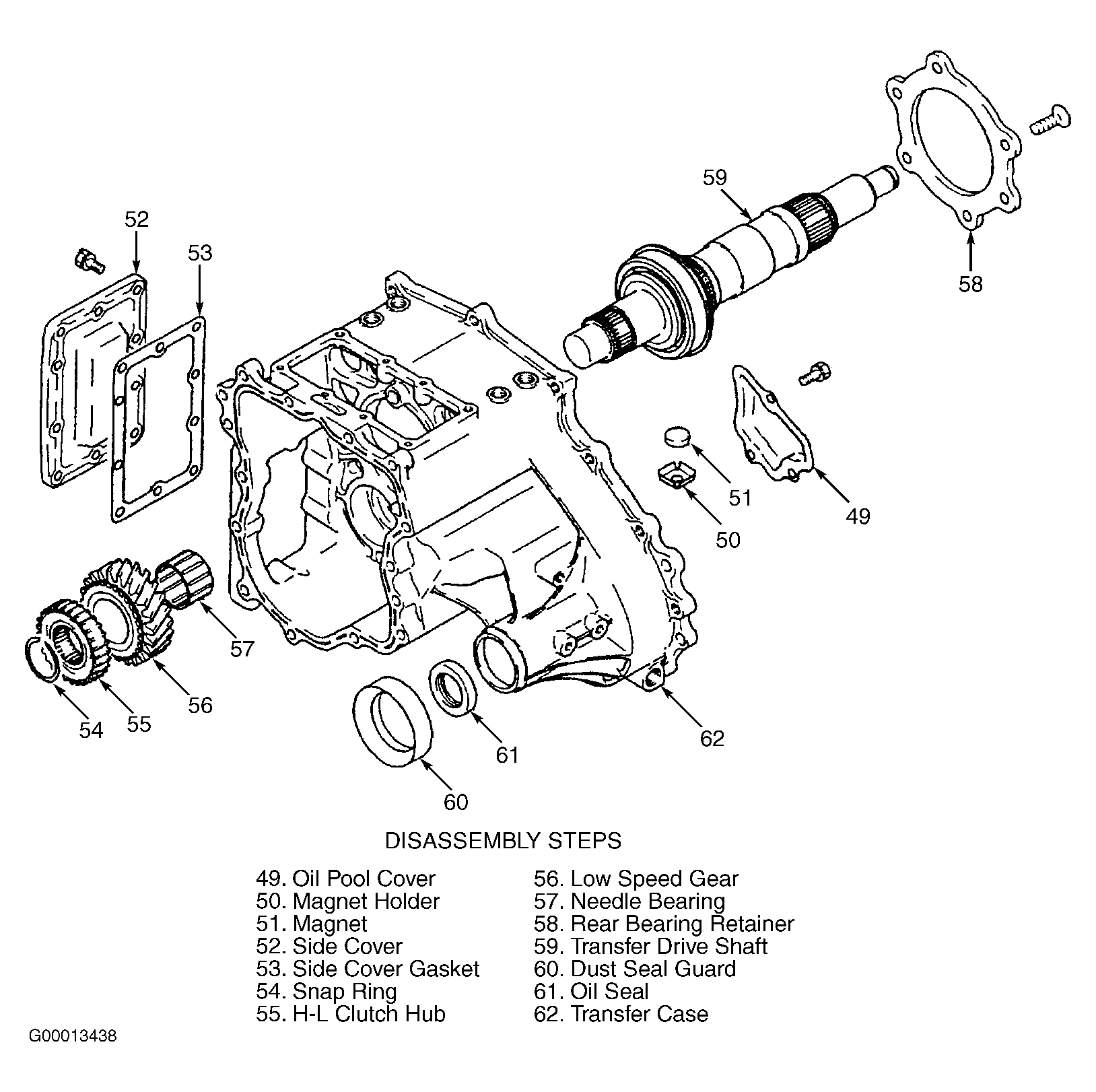

Fig 3: Disassembling Transfer Case (3 Of 3 - Steps 49-62)
G00013438Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
