Ignition Switch

Remove instrument panel lower cover. Disconnect ignition switch 6-pin and 5-pin connectors. Check continuity between ignition switch terminals. See Fig 1 and Fig 2 . Replace ignition switch if necessary.

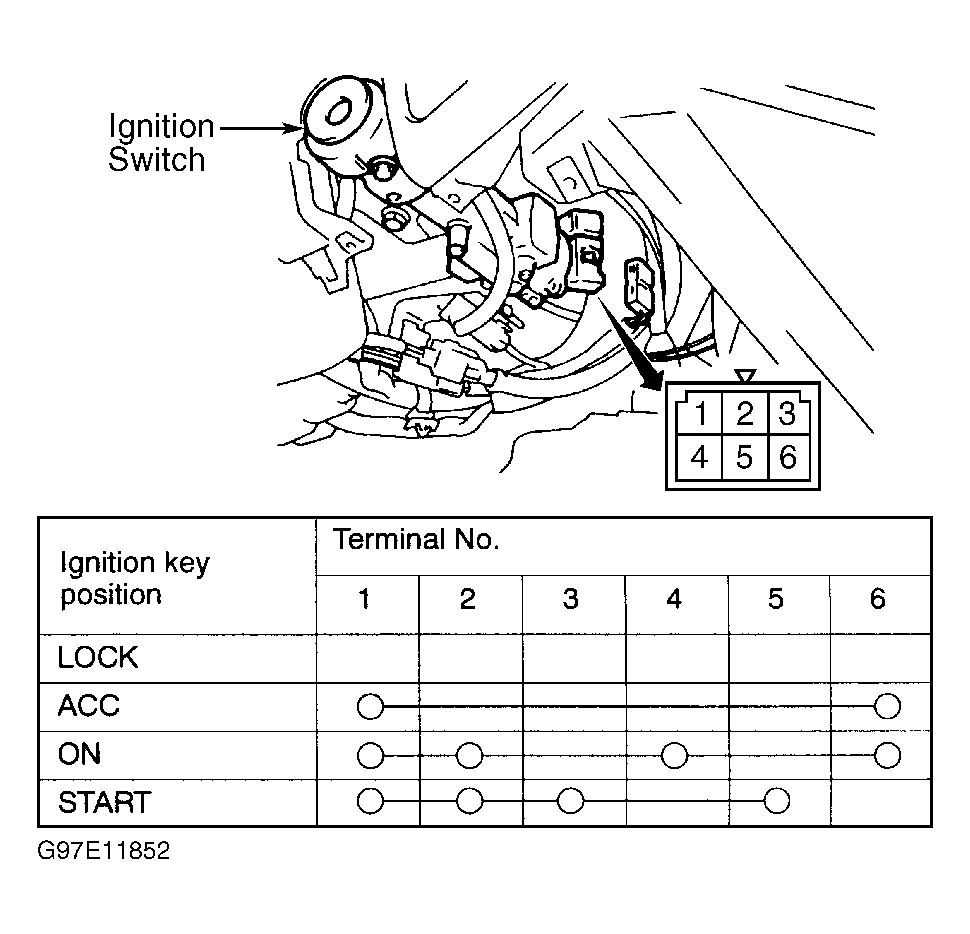

Fig 1: Testing Ignition Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

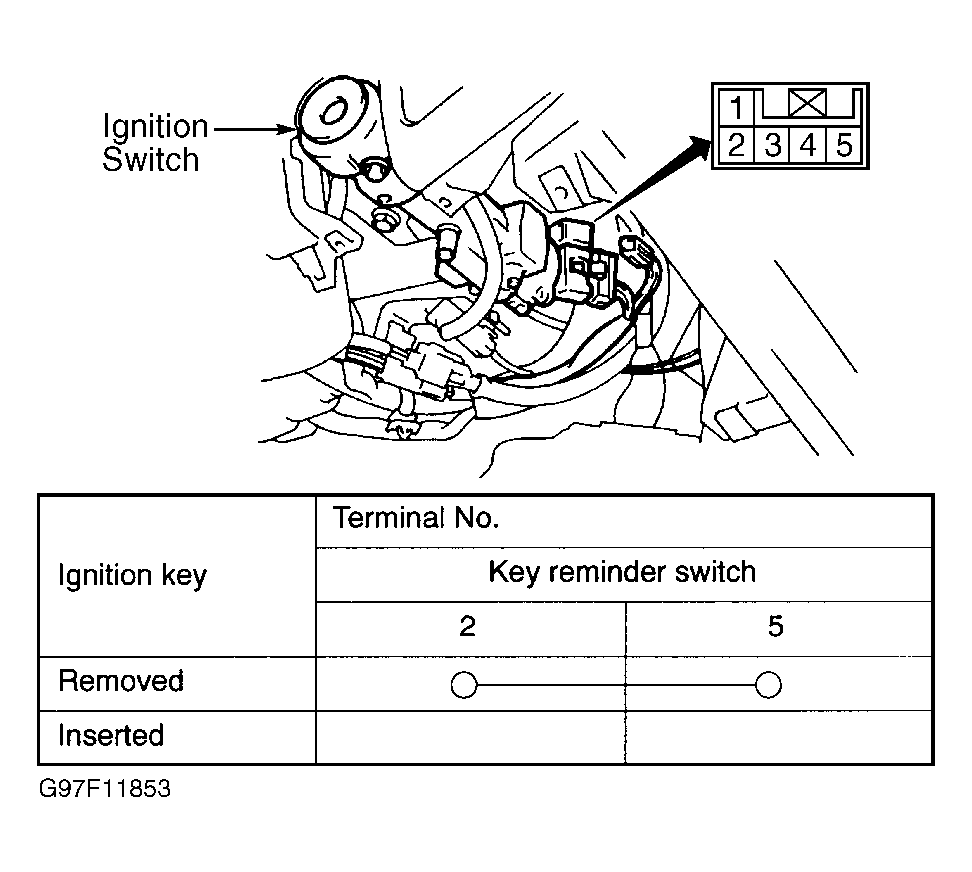

Fig 2: Testing Key Reminder Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
