System Tests: Notes

NOTE: To diagnose symptom, see Fig 1 , then go to appropriate test.

NOTE: To identify connector terminals, see connector view in appropriate pin voltage chart. See PIN VOLTAGE TESTS .

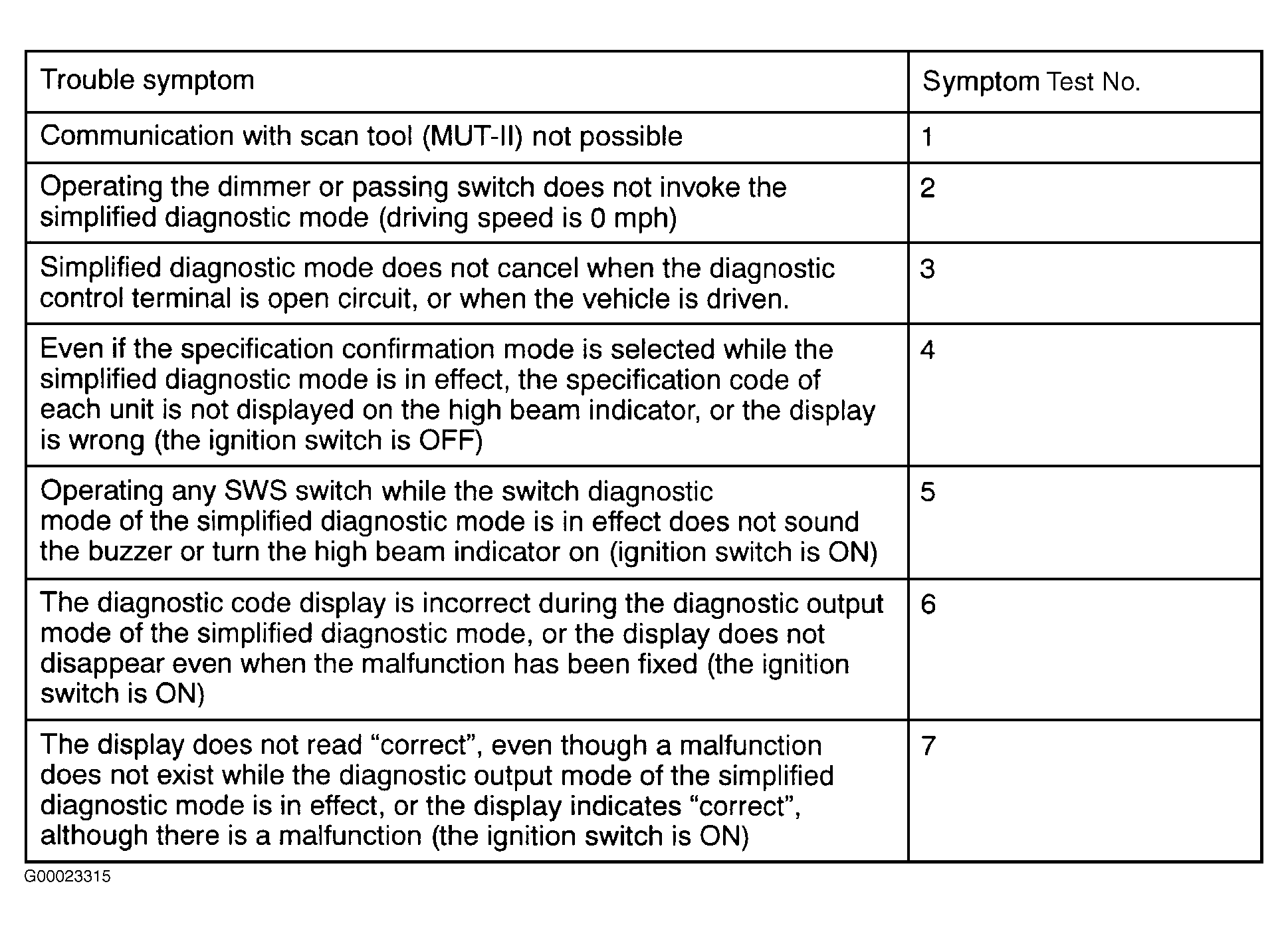

Fig 1: Symptom Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
