Pin Voltage Tests

WARNING: This page is about a different car, the 2001 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

For ECU pin voltage tests, see Fig 1 .

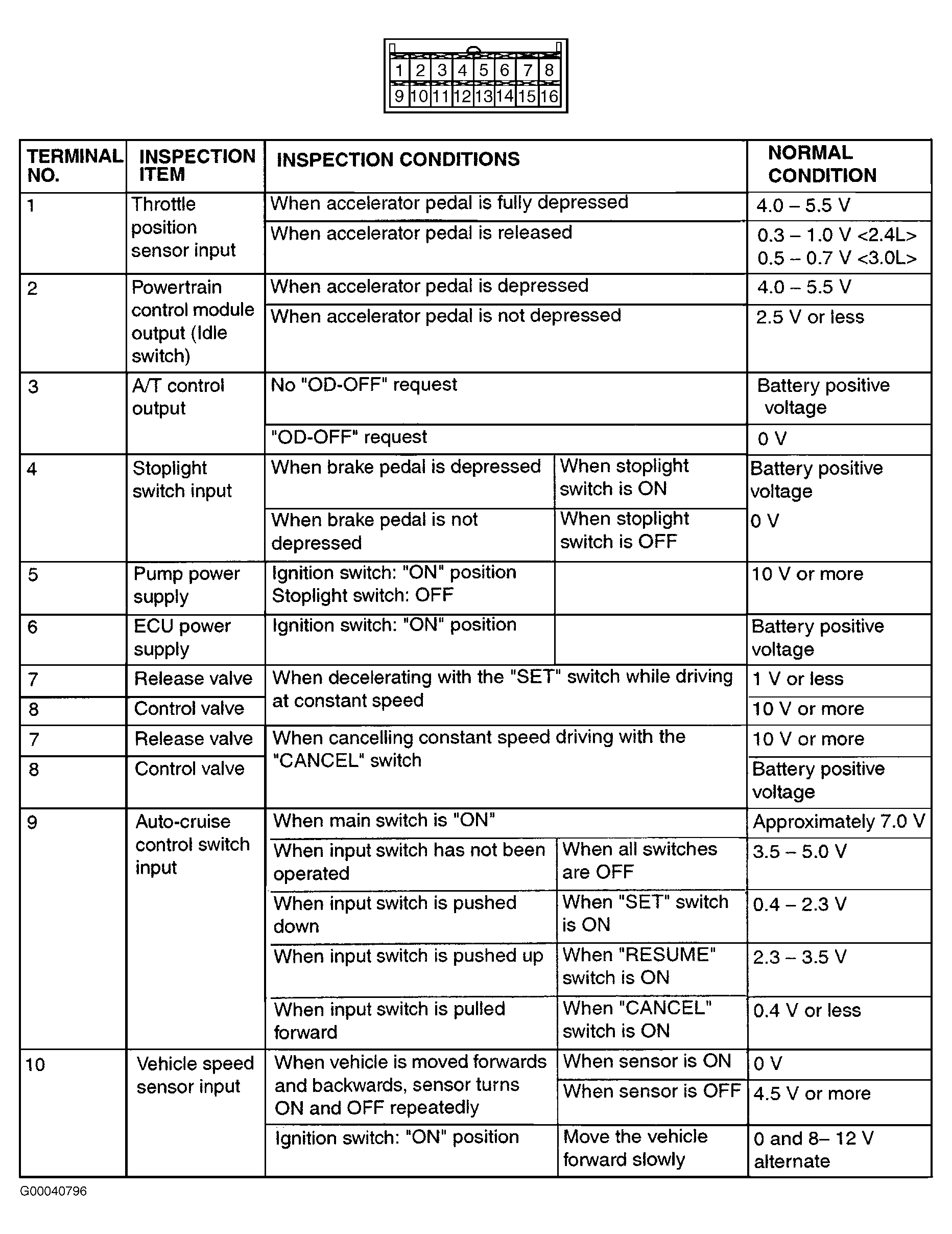

Fig 1: Electronic Control Unit Pin Voltage Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

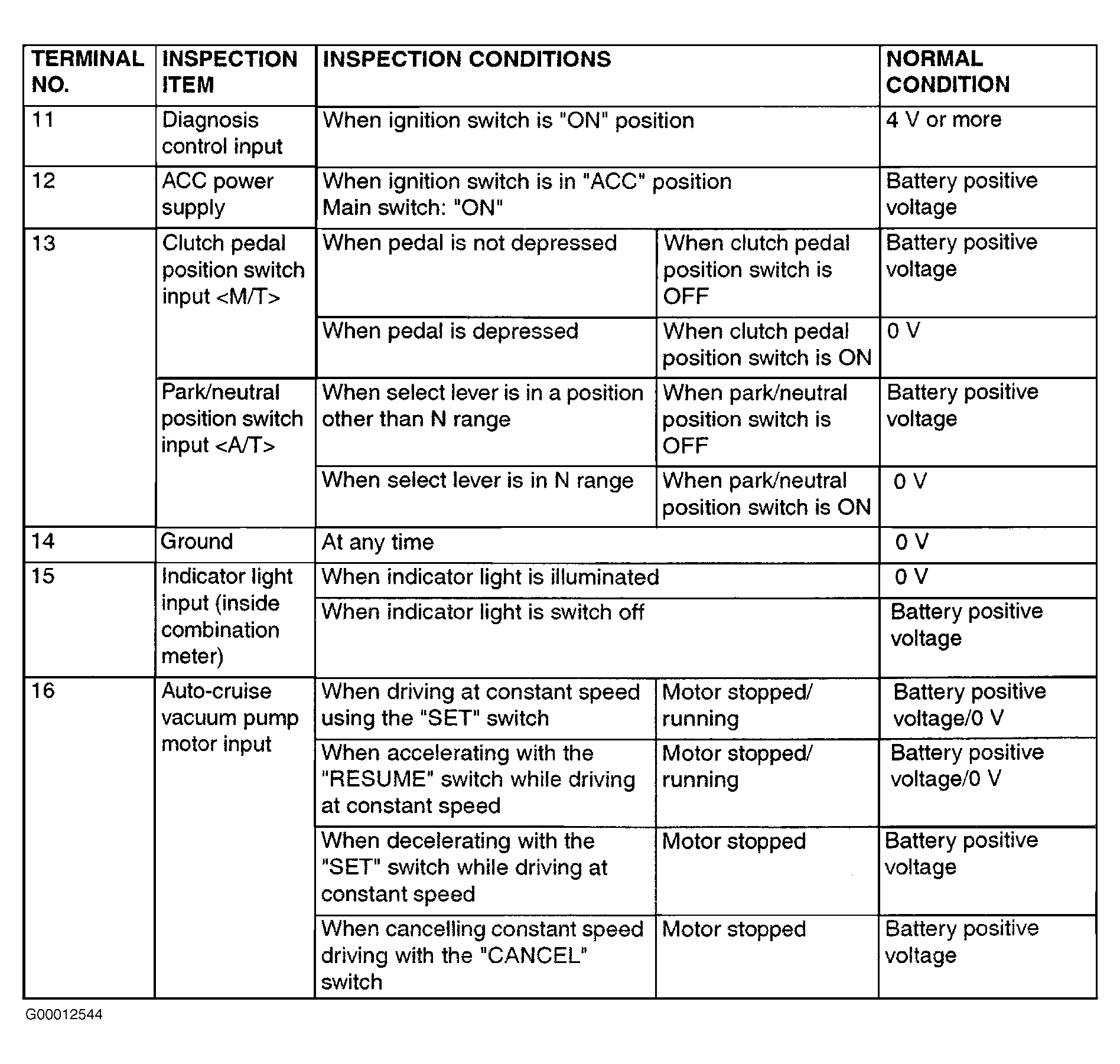

Fig 2: Electronic Control Unit Pin Voltage Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
