Accelerator Cable
- Remove intermediate link cover. Check deflection of inner accelerator cable. If deflection is excessive, or no play exists in inner cable, loosen accelerator cable adjusting bolts and nuts.

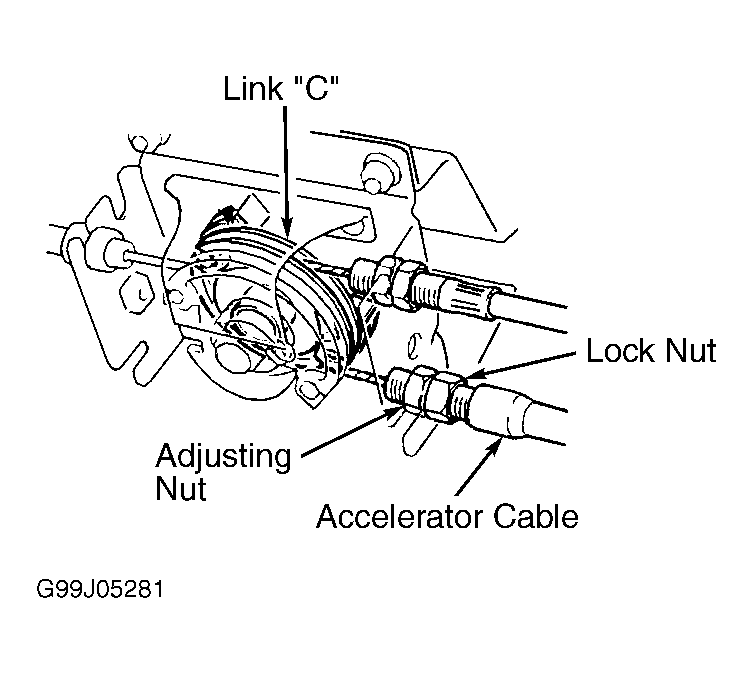

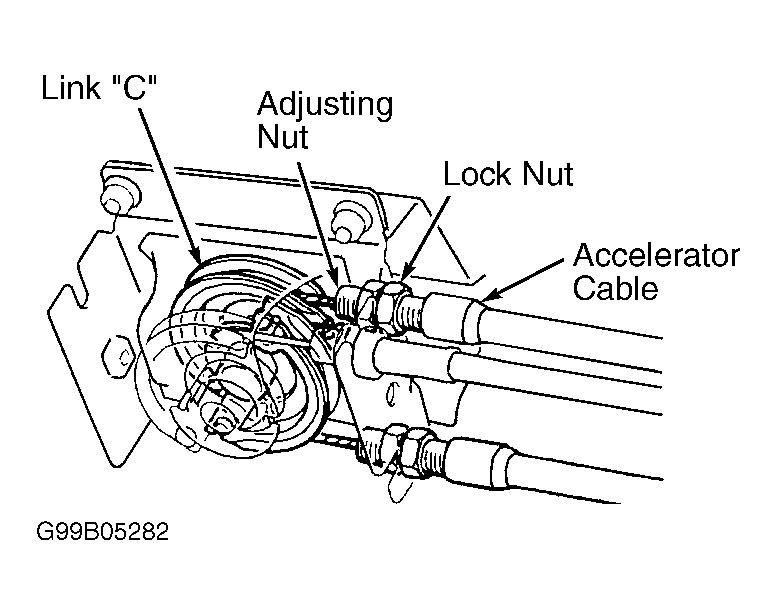

- While holding link "C" against stopper, turn adjusting nut until free play is .08-.12" (2-3 mm). Tighten lock nut. See Fig 1 and Fig 2 .
