Road Test: Notes

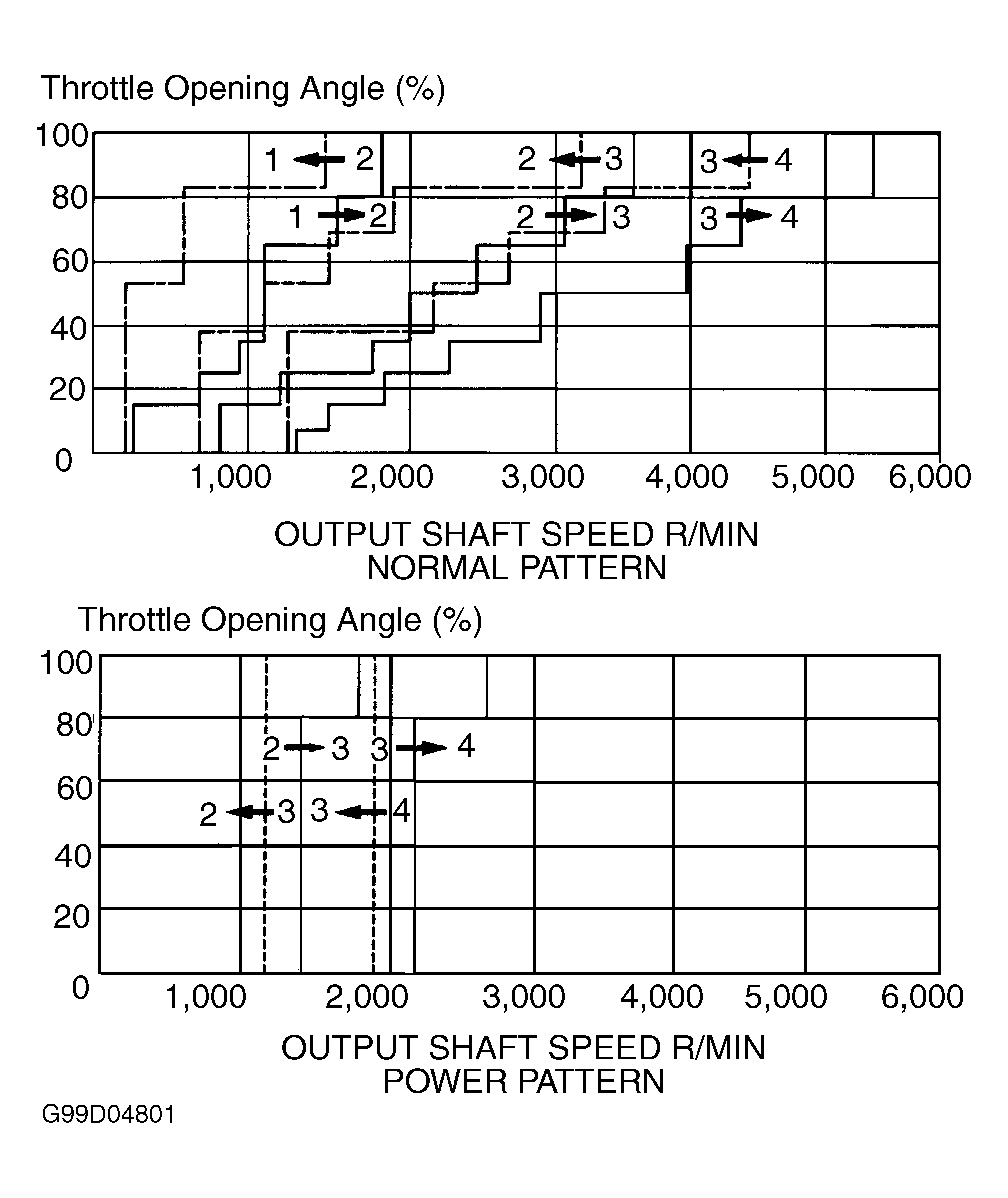

NOTE: Perform road test to ensure transmission shift points are at specified engine speeds. See Figure . Broken lines in shift point chart indicates downshifts, and solid lines indicate upshifts. If slippage occurs, determine which components are applied in each gear. See CLUTCH, BRAKE & BAND APPLICATIONS under TROUBLE SHOOTING. Perform hydraulic pressure test to check transmission internal components. See HYDRAULIC PRESSURE TESTS .
