Transmission Control Cable: Mirage

Adjust shift cable at transaxle end of cable. Place shift lever in Neutral. Gently pull on shift cable end until no slack exists in cable. See Fig 1. Tighten cable adjusting nut to specification. See TORQUE SPECIFICATIONS .

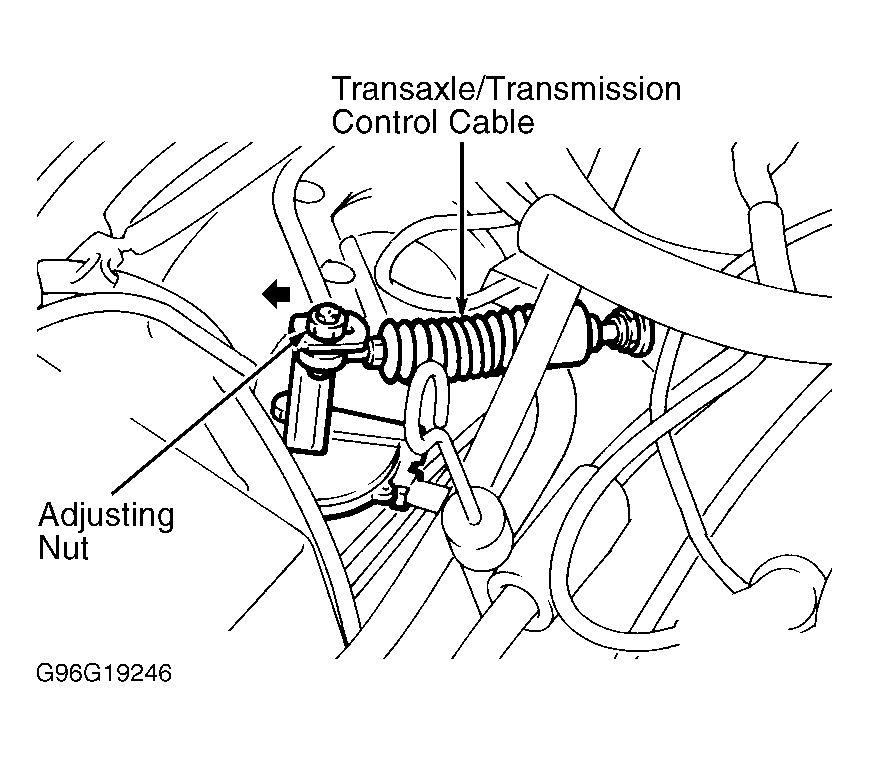

Fig 1: Adjusting Transmission Control Cable (Typical)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
