System Tests: Notes

NOTE: To diagnose system, see Fig 1 , then go to appropriate test.

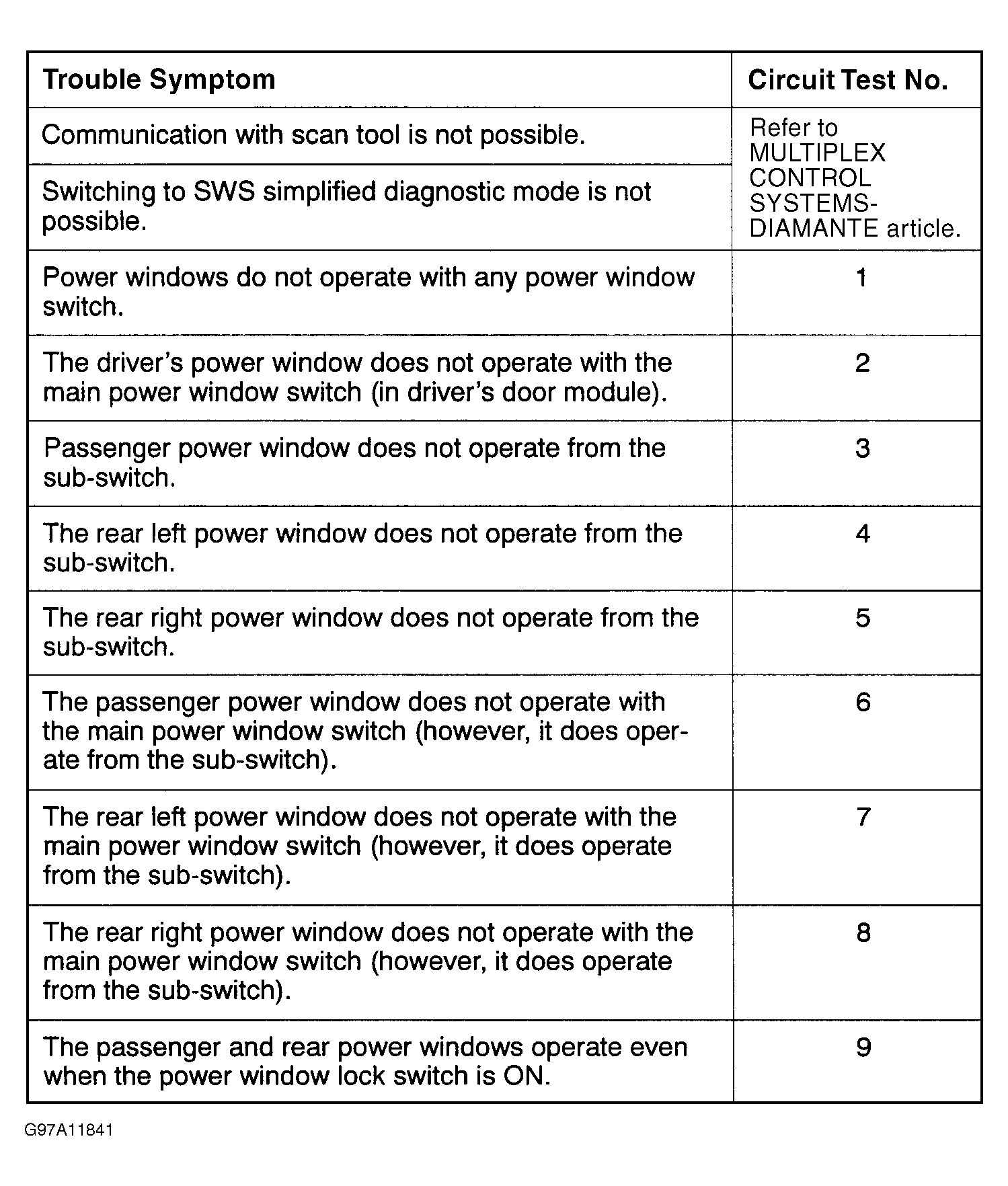

Fig 1: Symptom Chart
G97A11841Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
