Special Tools

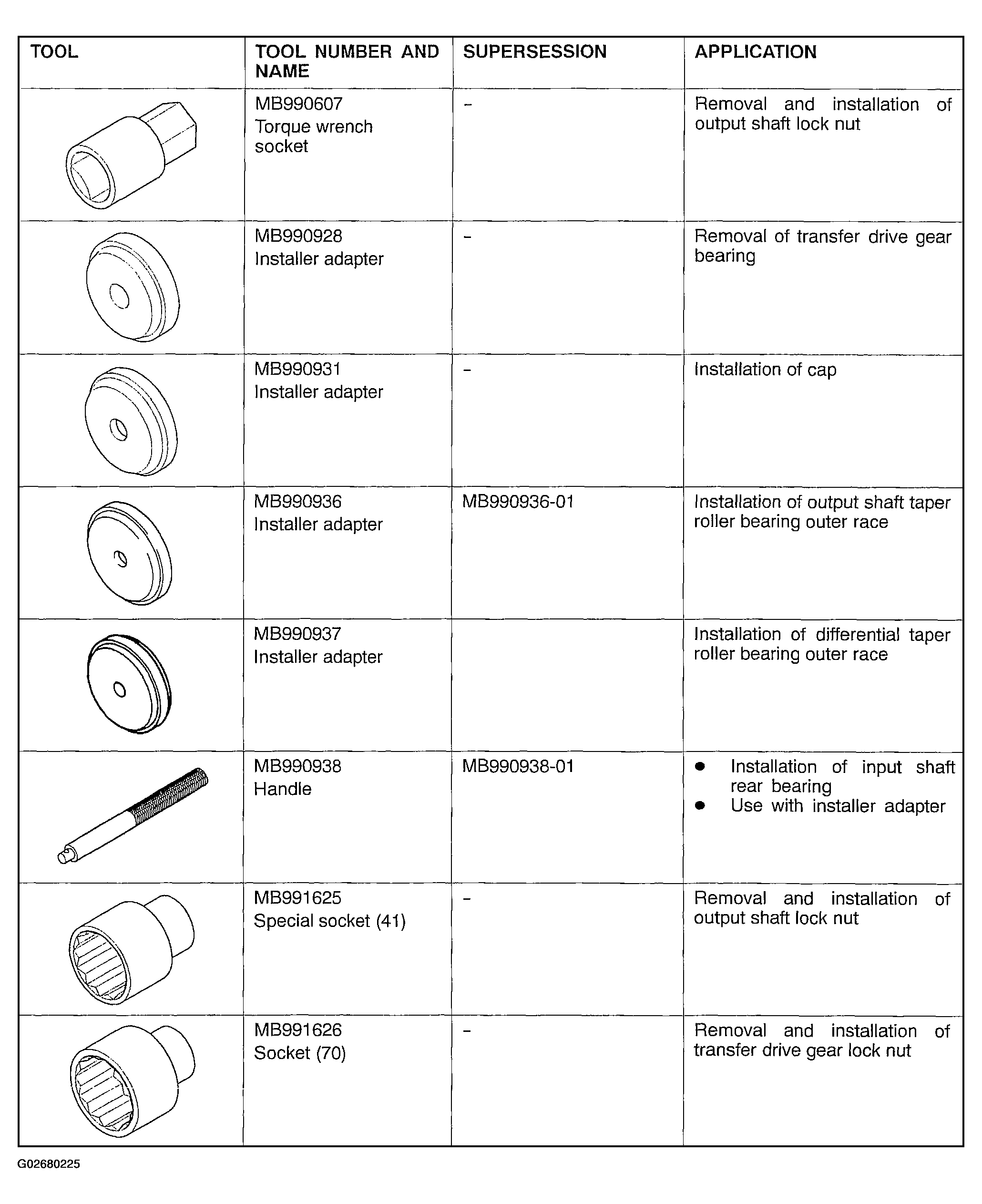

Fig 1: Special Tools (1 Of 4)

G02680225

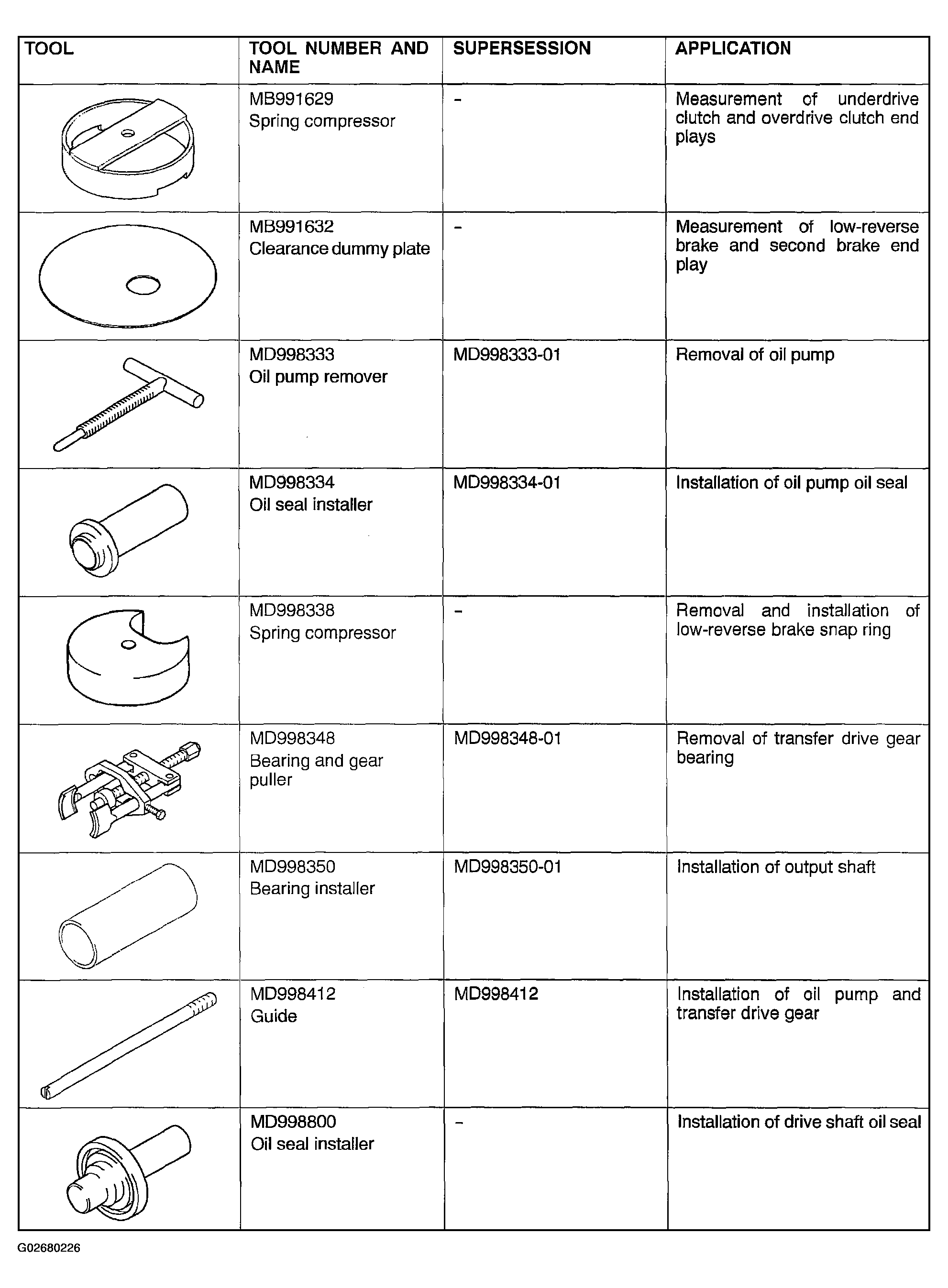

Fig 2: Special Tools (2 Of 4)

G02680226

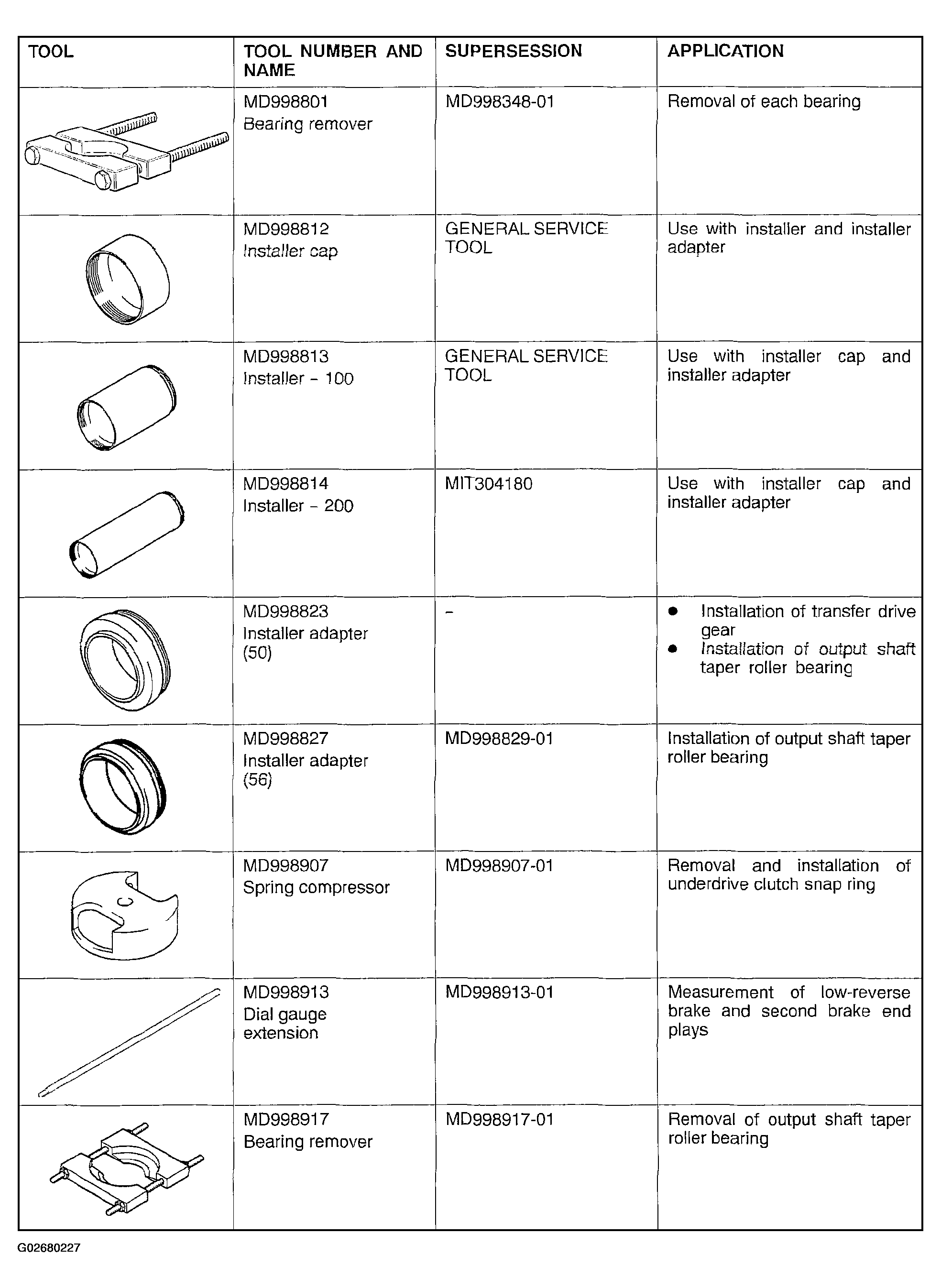

Fig 3: Special Tools (3 Of 4)

G02680227

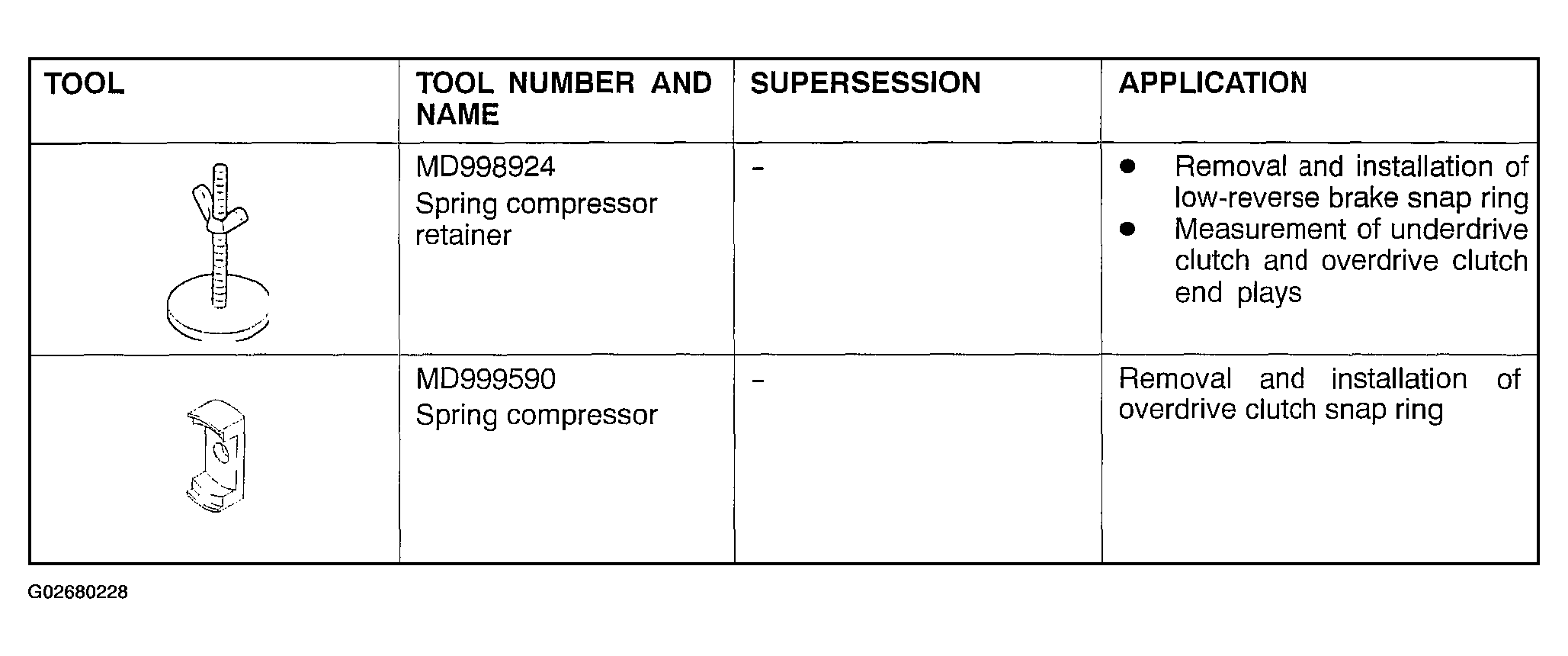

Fig 4: Special Tools (4 Of 4)

G02680228
