Disassembly And Reassembly

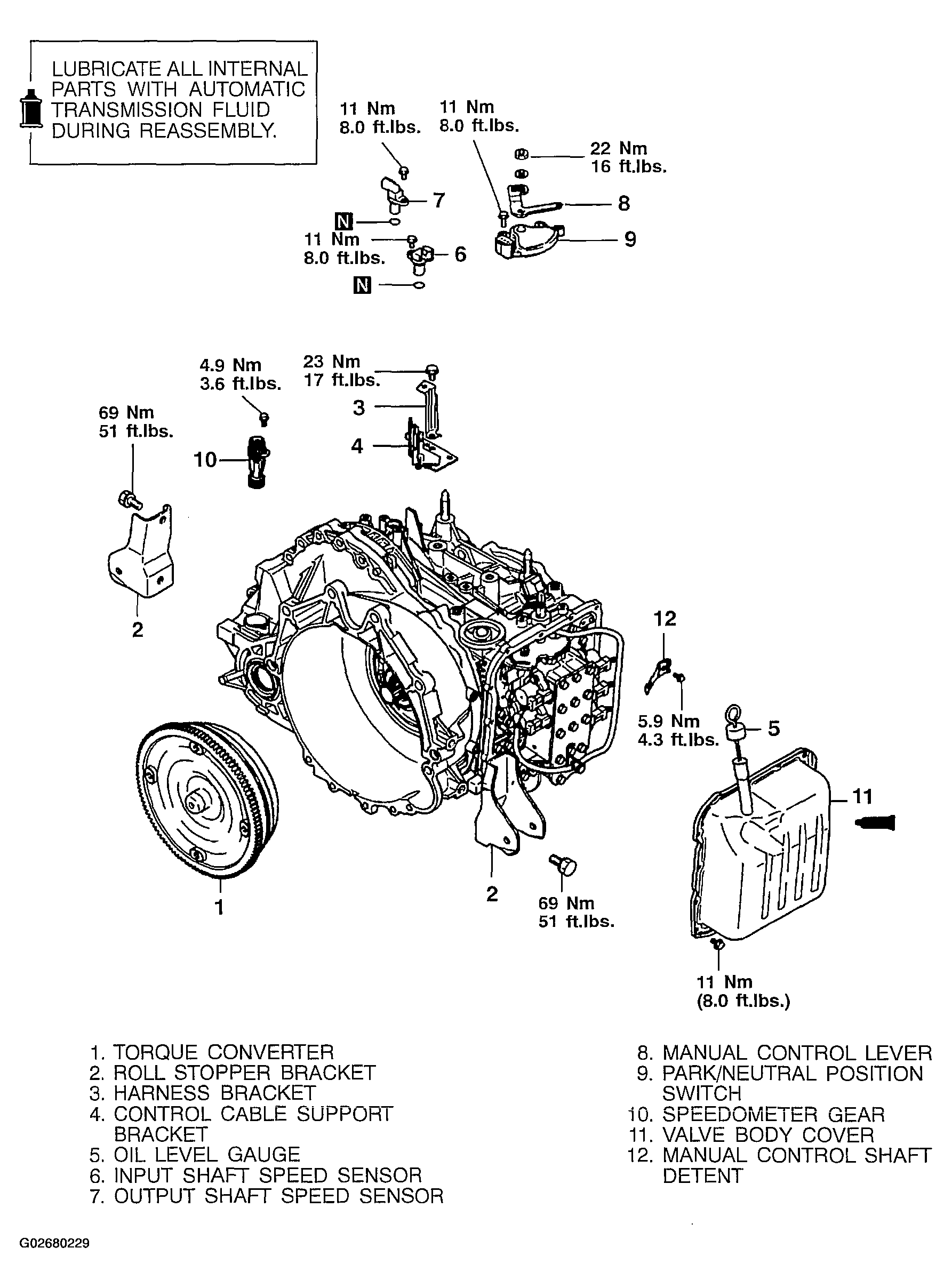

Fig 1: Transaxle Disassembly And Reassembly (1 Of 4)

G02680229

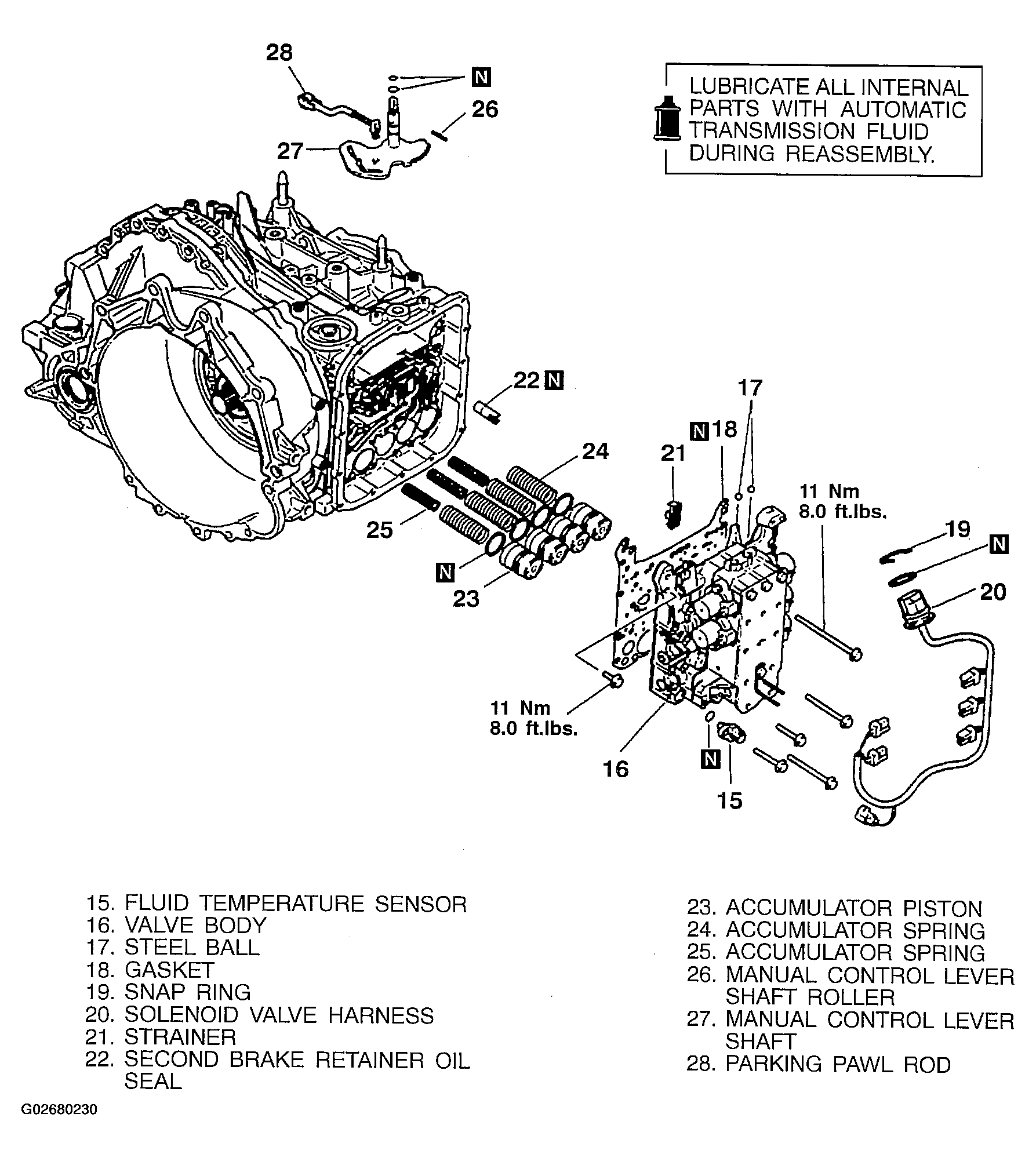

Fig 2: Transaxle Disassembly And Reassembly (2 Of 4)

G02680230

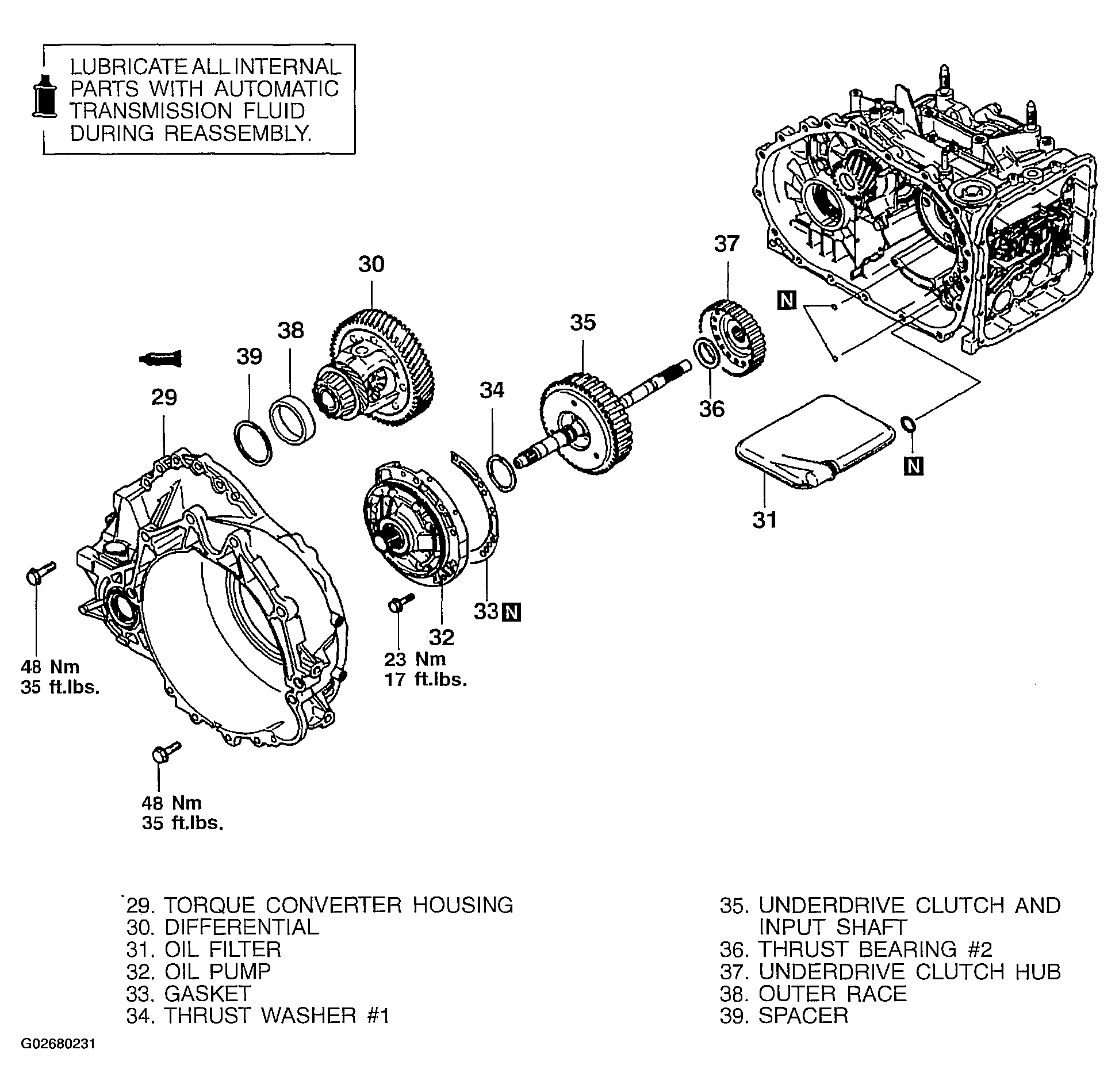

Fig 3: Transaxle Disassembly And Reassembly (3 Of 4)

G02680231

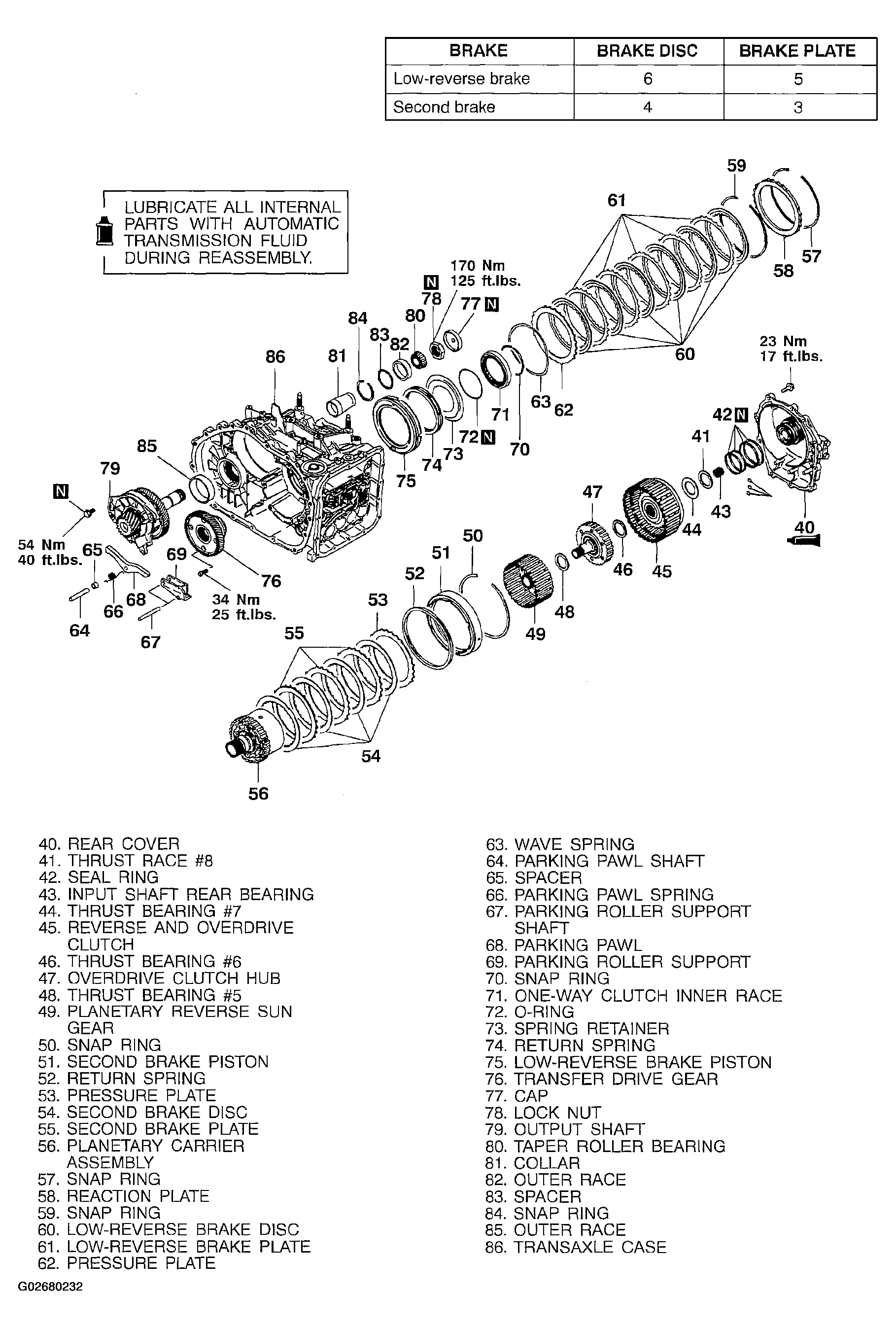

Fig 4: Transaxle Disassembly And Reassembly (4 Of 4)

G02680232
