Disassembly And Assembly
Disassembly And Assembly

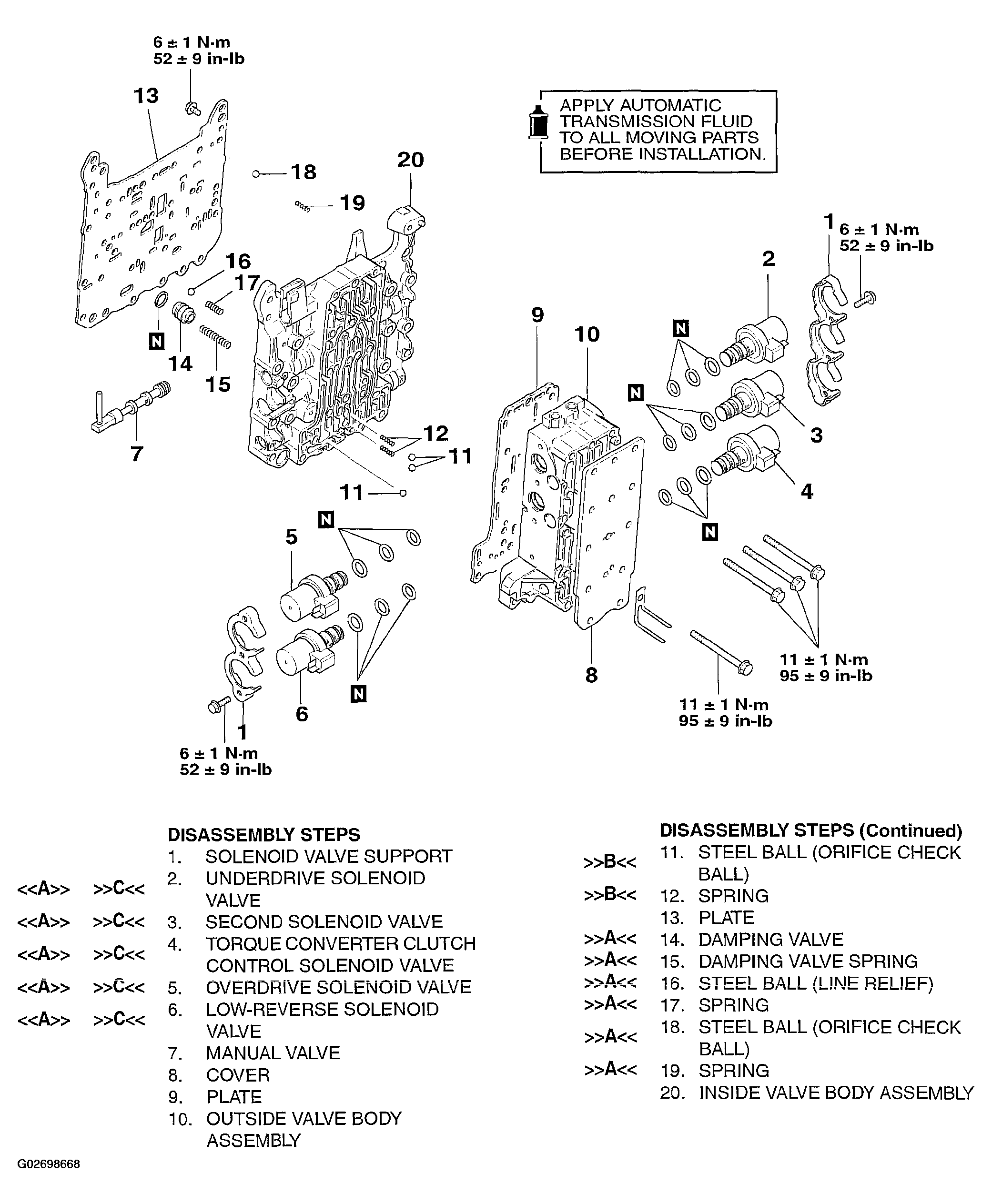

Fig 1: Valve Body Disassembly And Assembly (1 Of 3)

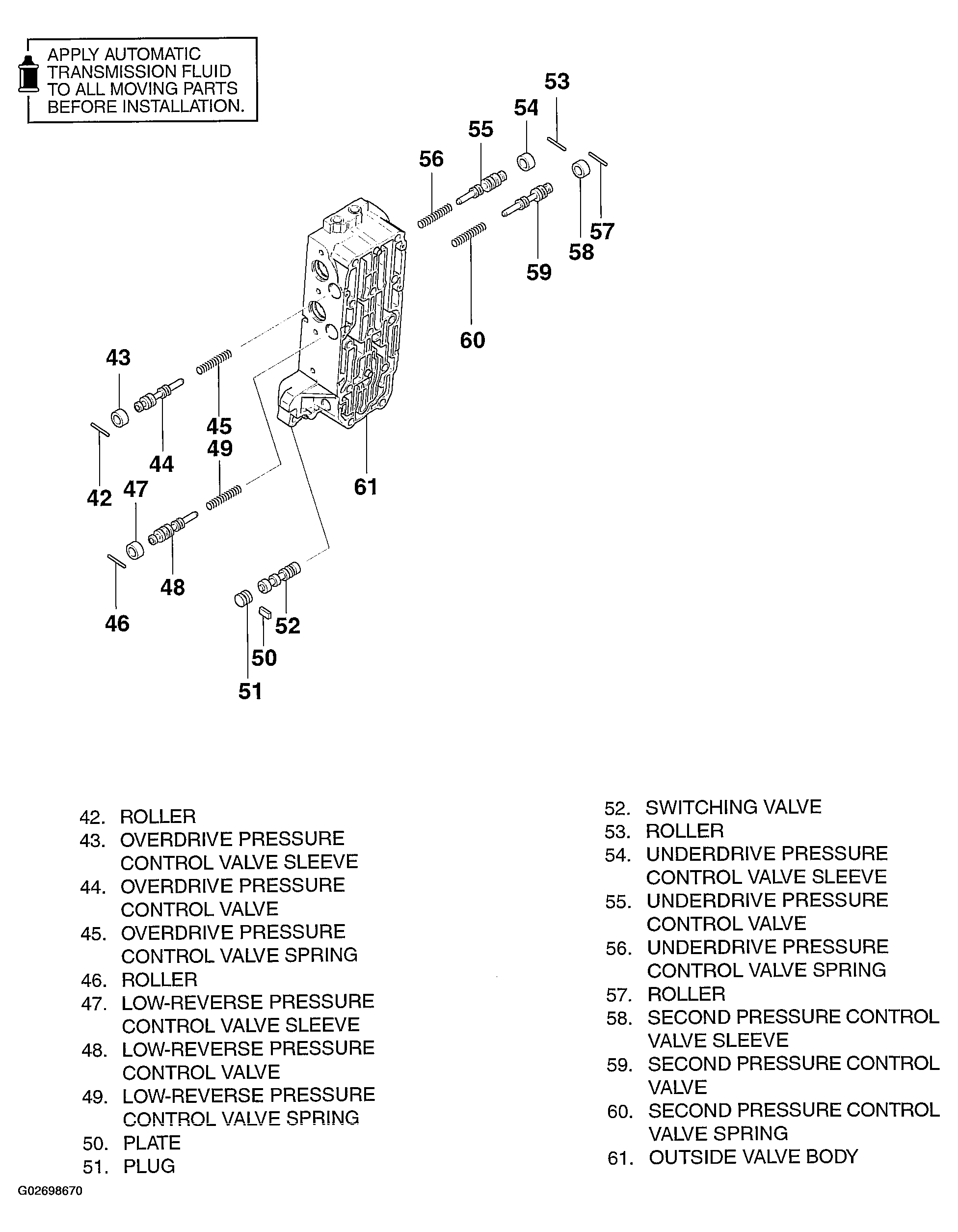

Fig 2: Valve Body Disassembly And Assembly (2 Of 3)

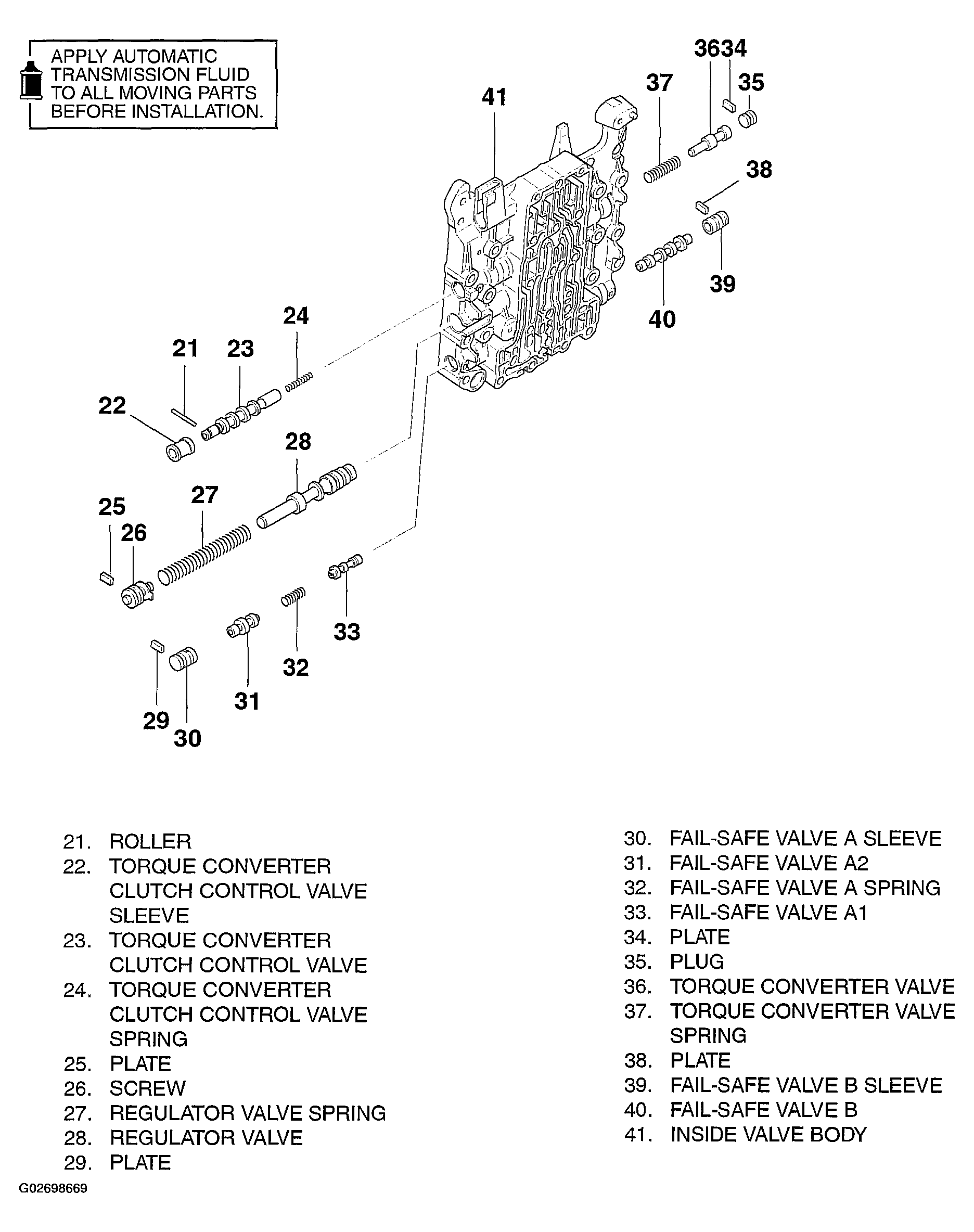

Fig 3: Valve Body Disassembly And Assembly (3 Of 3)
