Special Tools
Special Tools

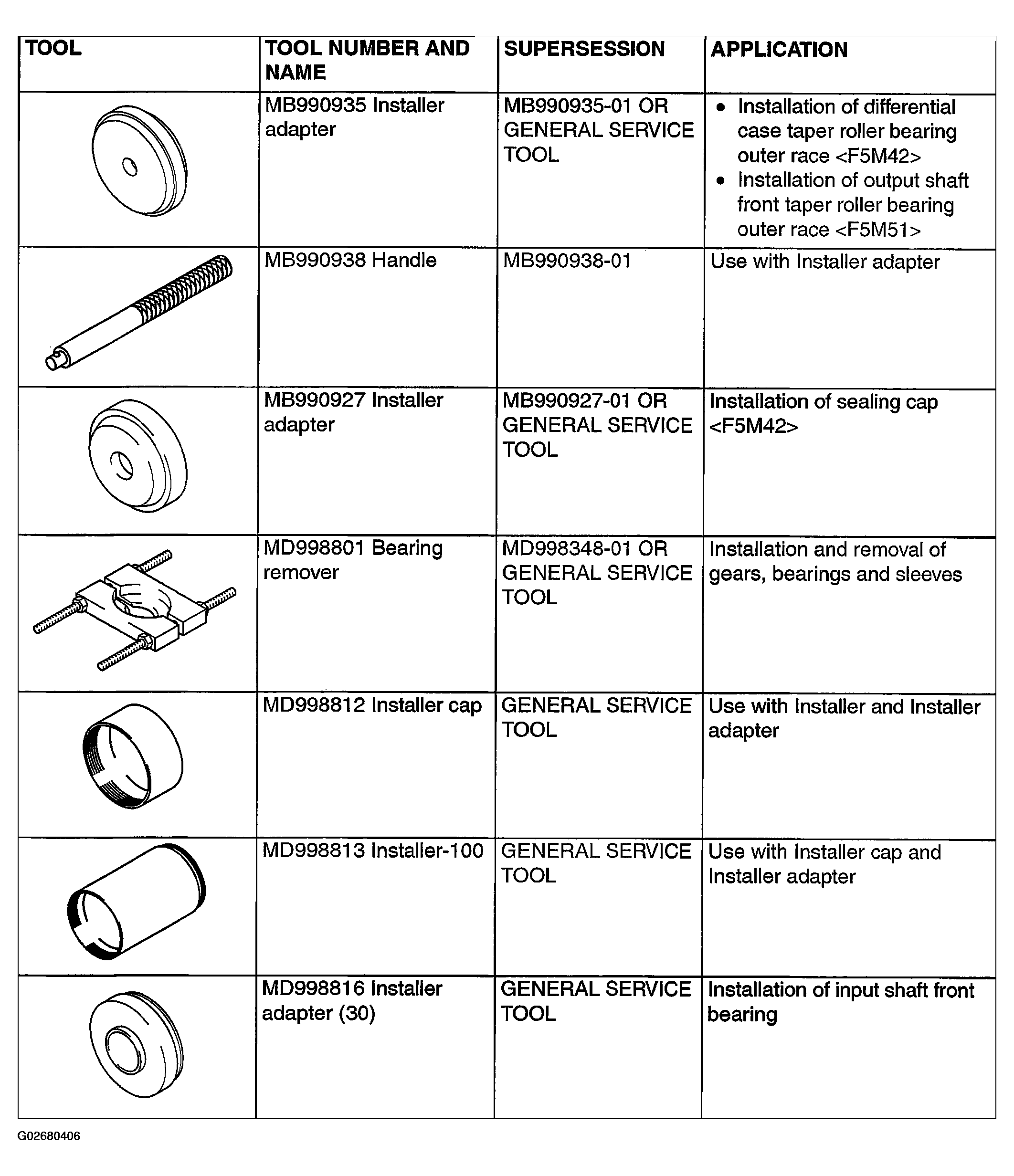

Fig 1: Special Tools (1 Of 4)
Fig 2: Special Tools (2 Of 4)

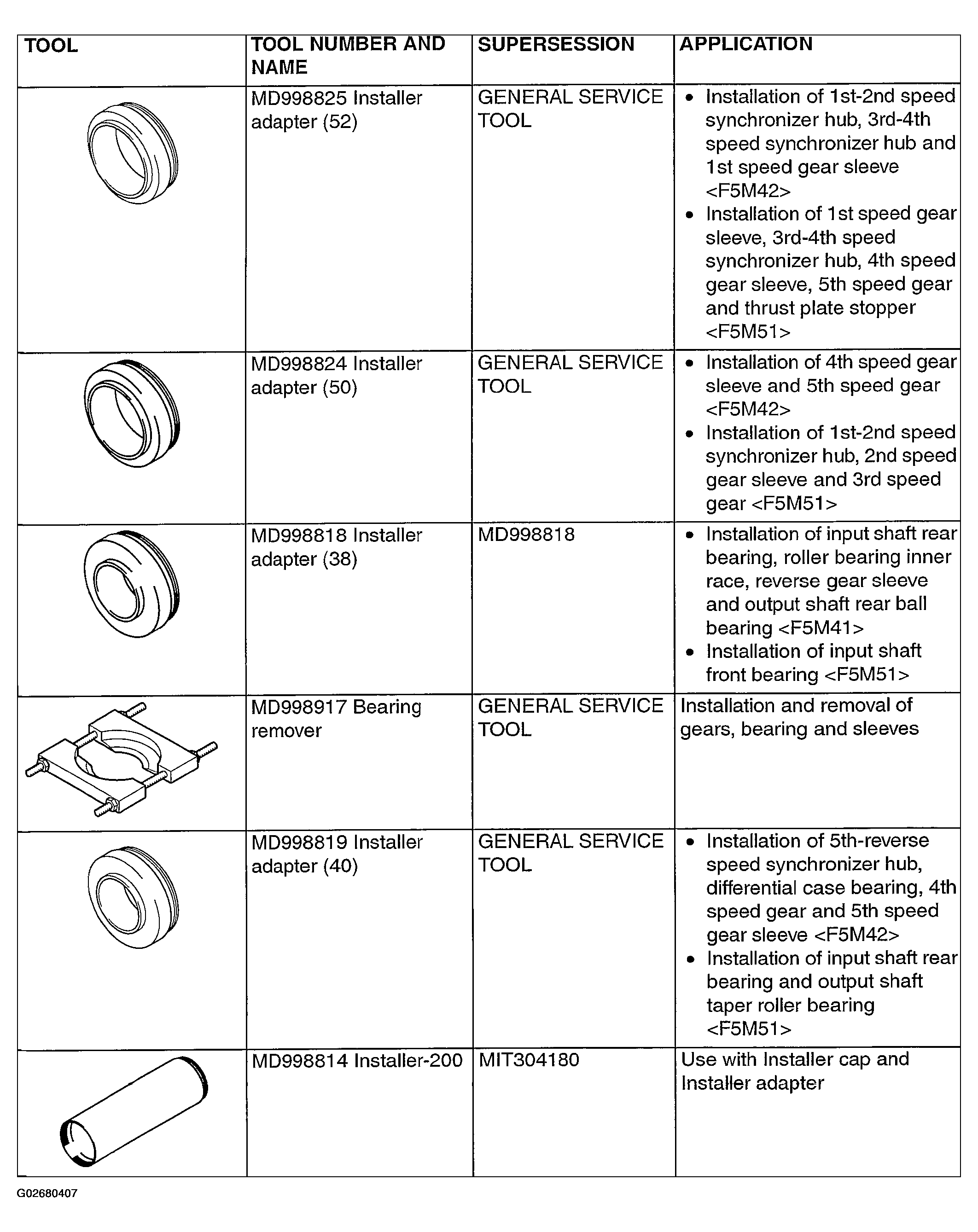

Fig 3: Special Tools (3 Of 4)
Fig 4: Special Tools (4 Of 4)
