Home › Mitsubishi › 2001 › Galant GTZ › Repair and Diagnosis › Transmission › Automatic Trans › Overhaul › Differential › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

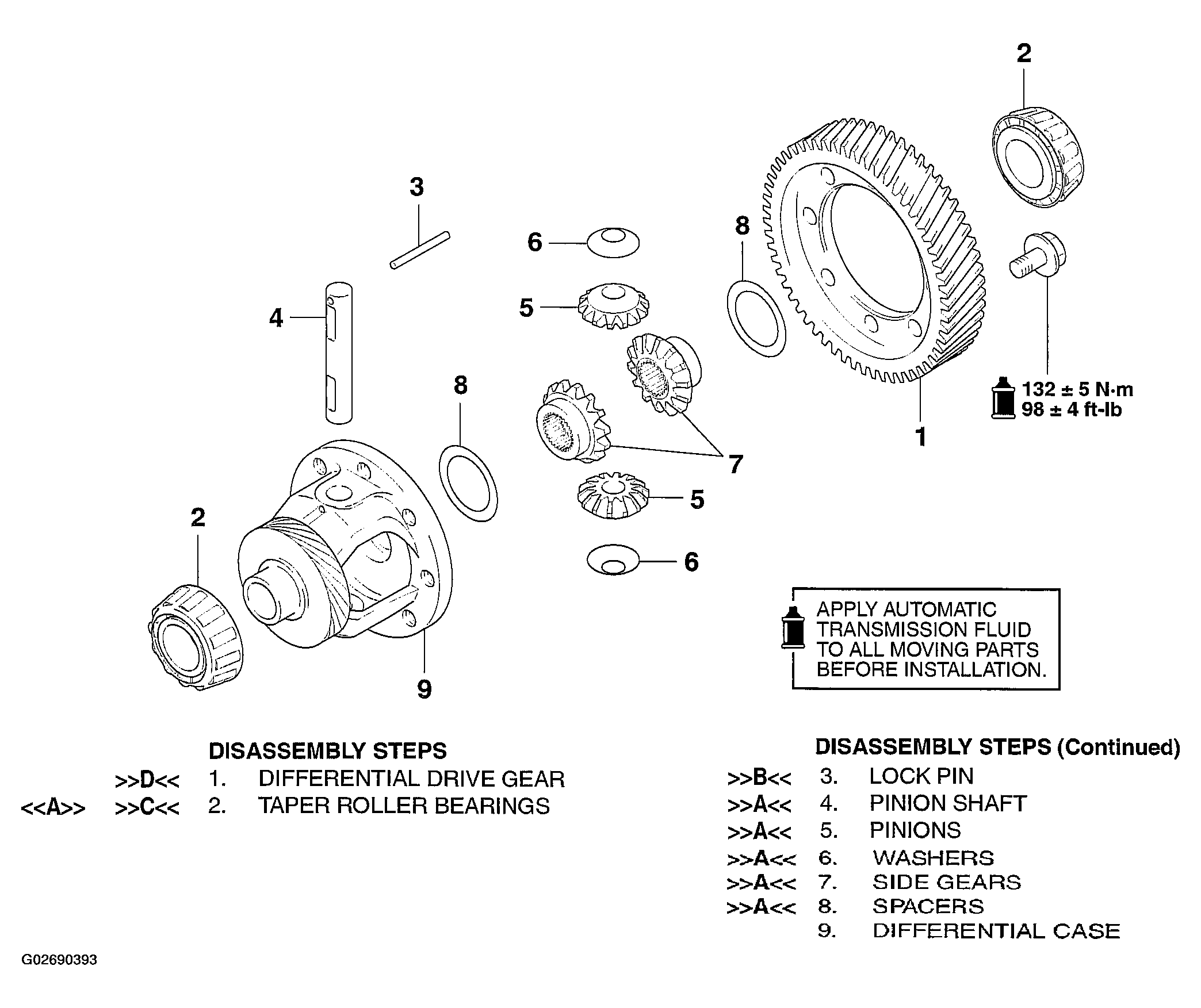

Fig 1: Exploded View Of Differential Components
G02690393
