General Information
›
Sectional View
Sectional View

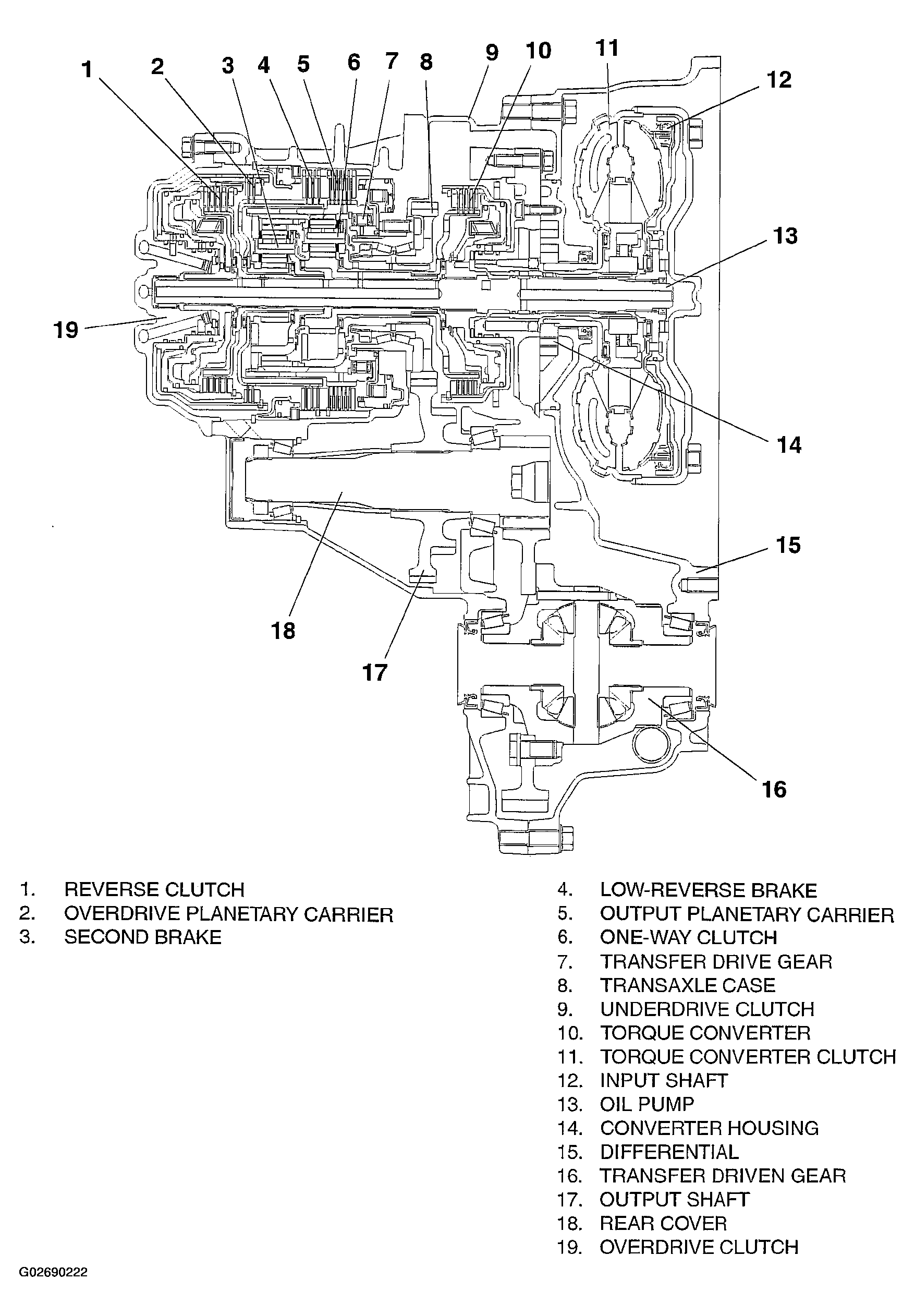

Fig 1: Sectional View (F4A42)

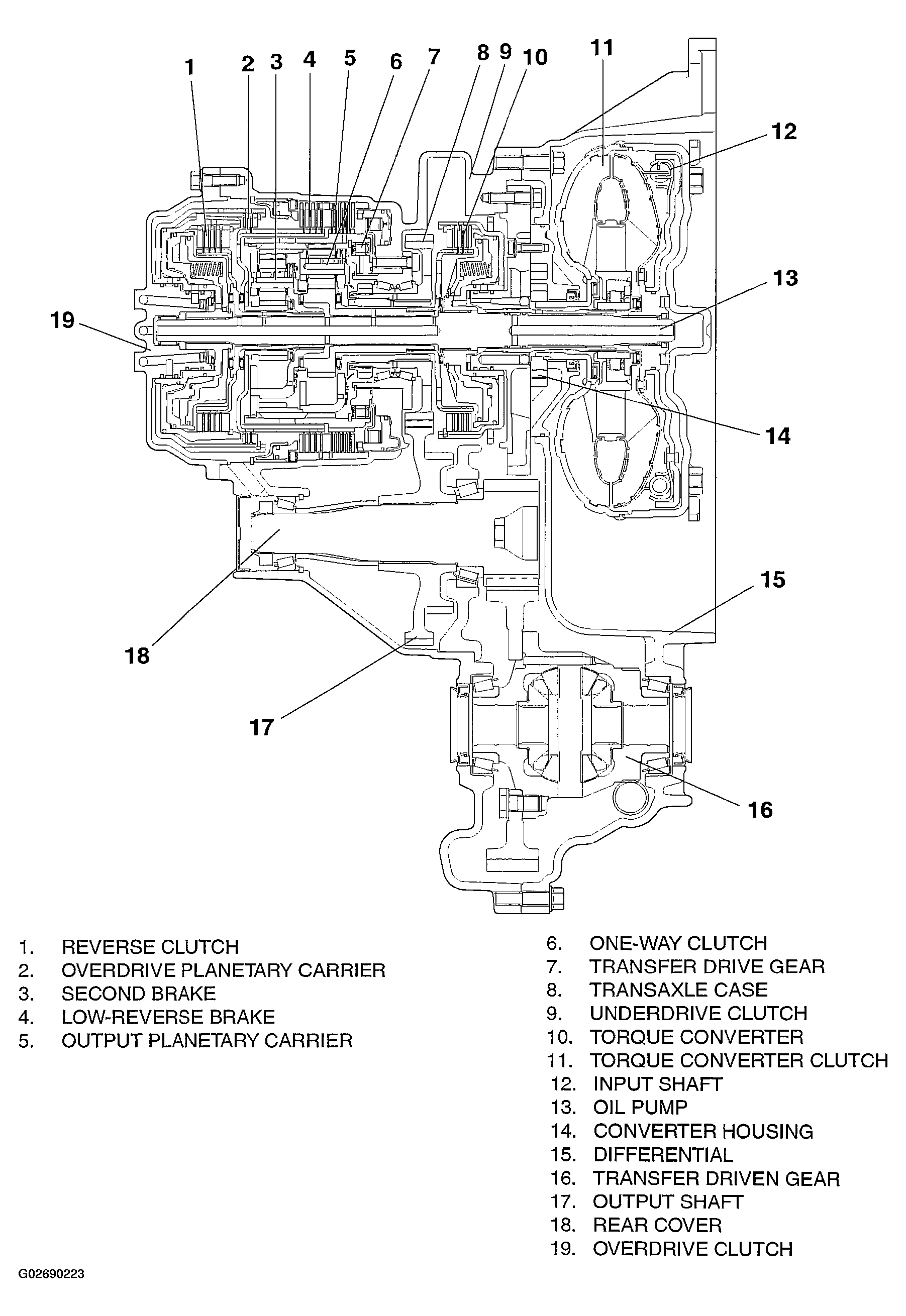

Fig 2: Sectional View (F4A51)
