Disassembly And Assembly: Notes

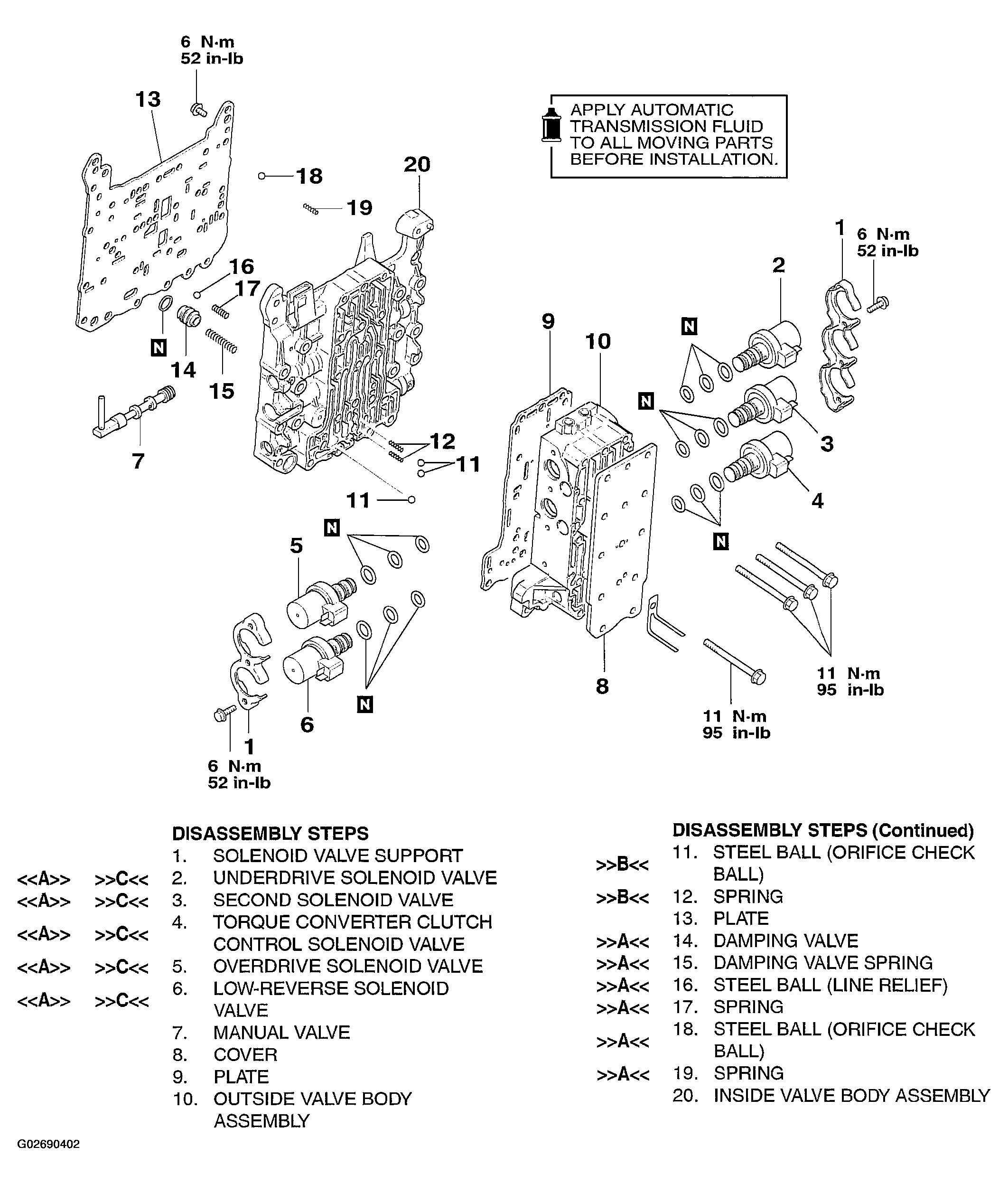

Fig 1: Exploded View Of Valve Body Assembly Components (1 Of 3)

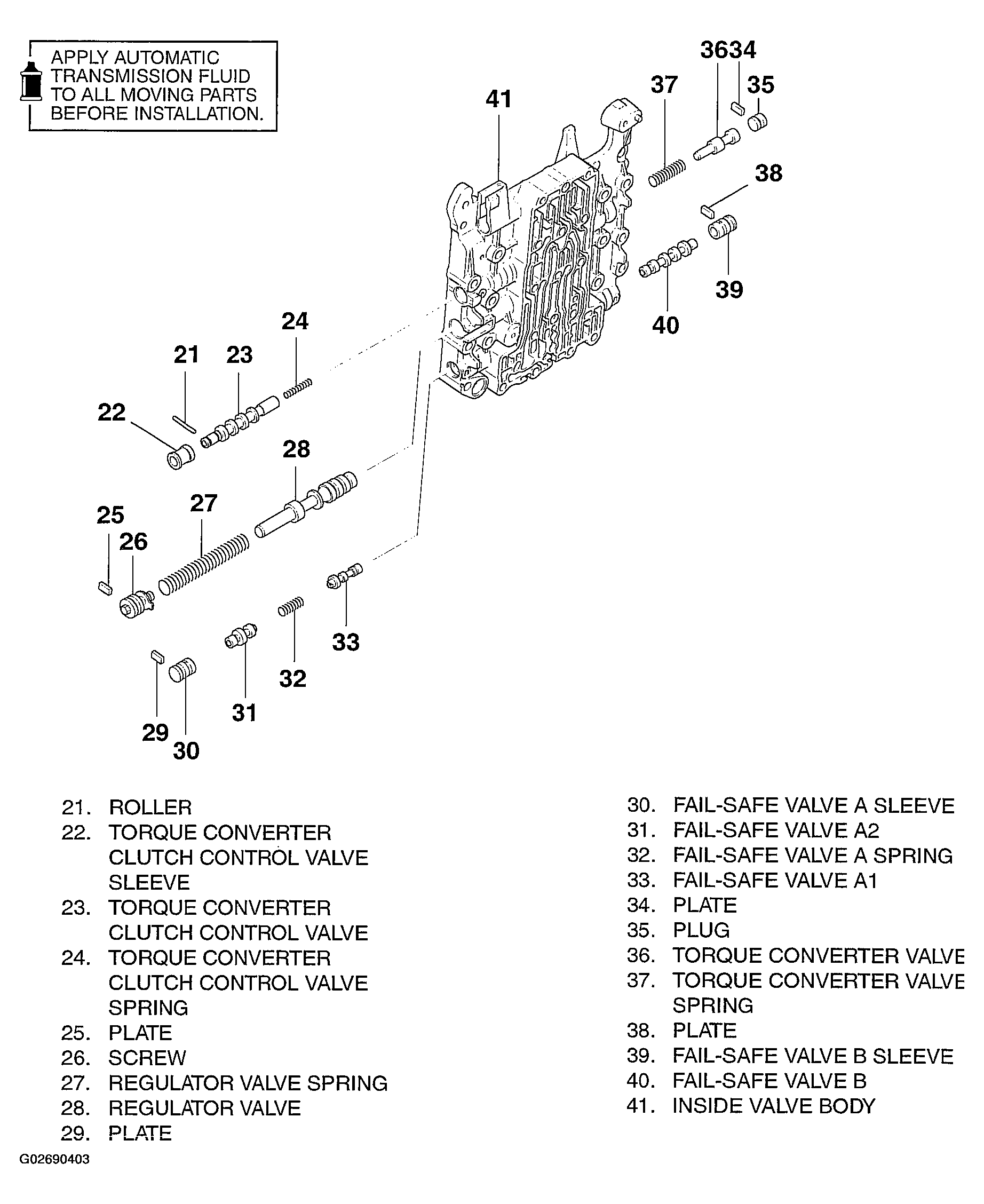

Fig 2: Exploded View Of Valve Body Assembly Components (2 Of 3)

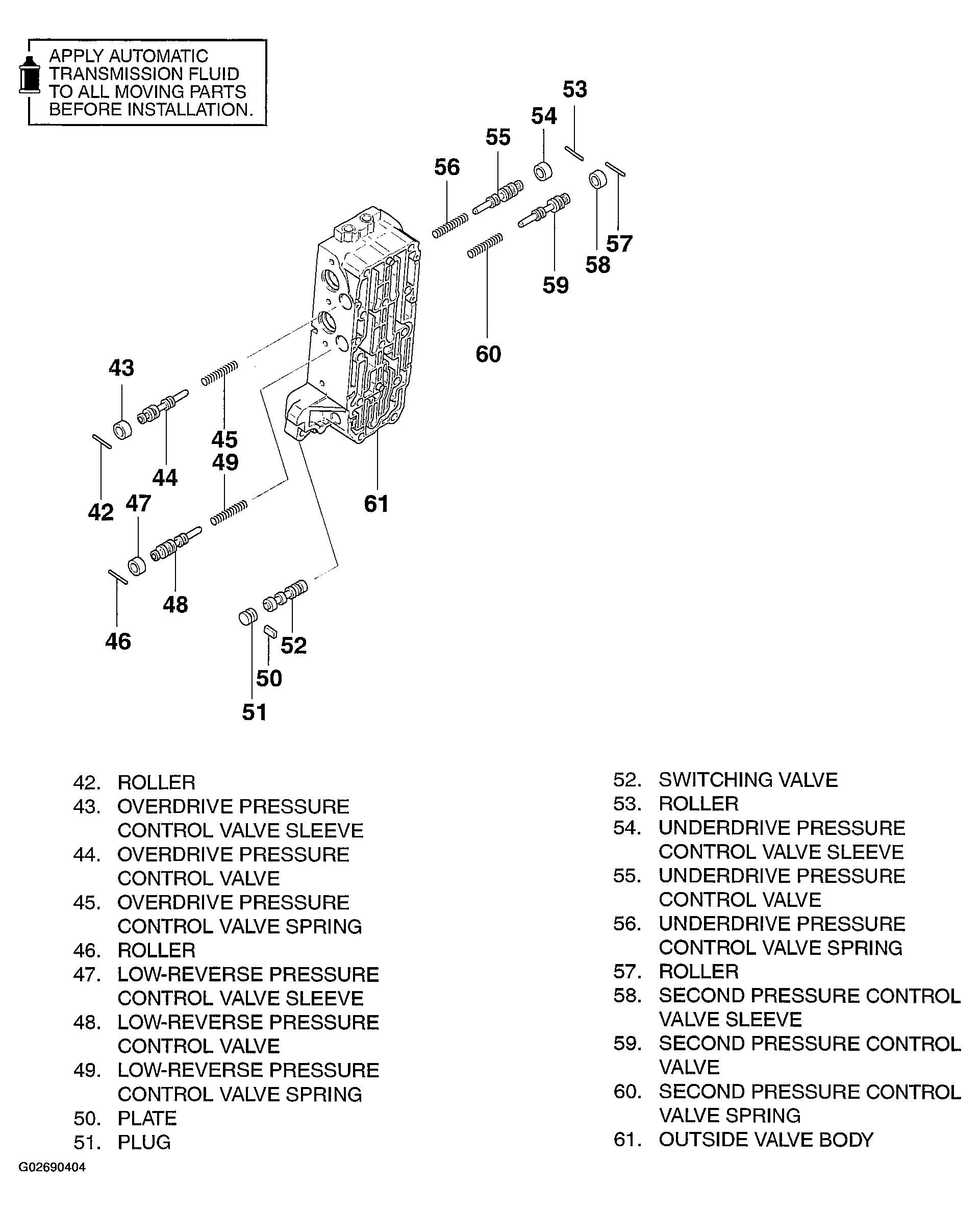

Fig 3: Exploded View Of Valve Body Assembly Components (3 Of 3)
