Retrieving Data List Reference Codes

NOTE: System input switch test should be performed only if no codes are stored when performing self-diagnostics. System input test cycles each cruise control switch and sensor.

1. Use scan tool for code retrieval. Turn ignition off. Install scan tool. Turn ignition on. Turn on cruise control switch.
2. Operate each check item. See Fig 1 . Read item codes on scan tool. Repair or replace components as necessary.

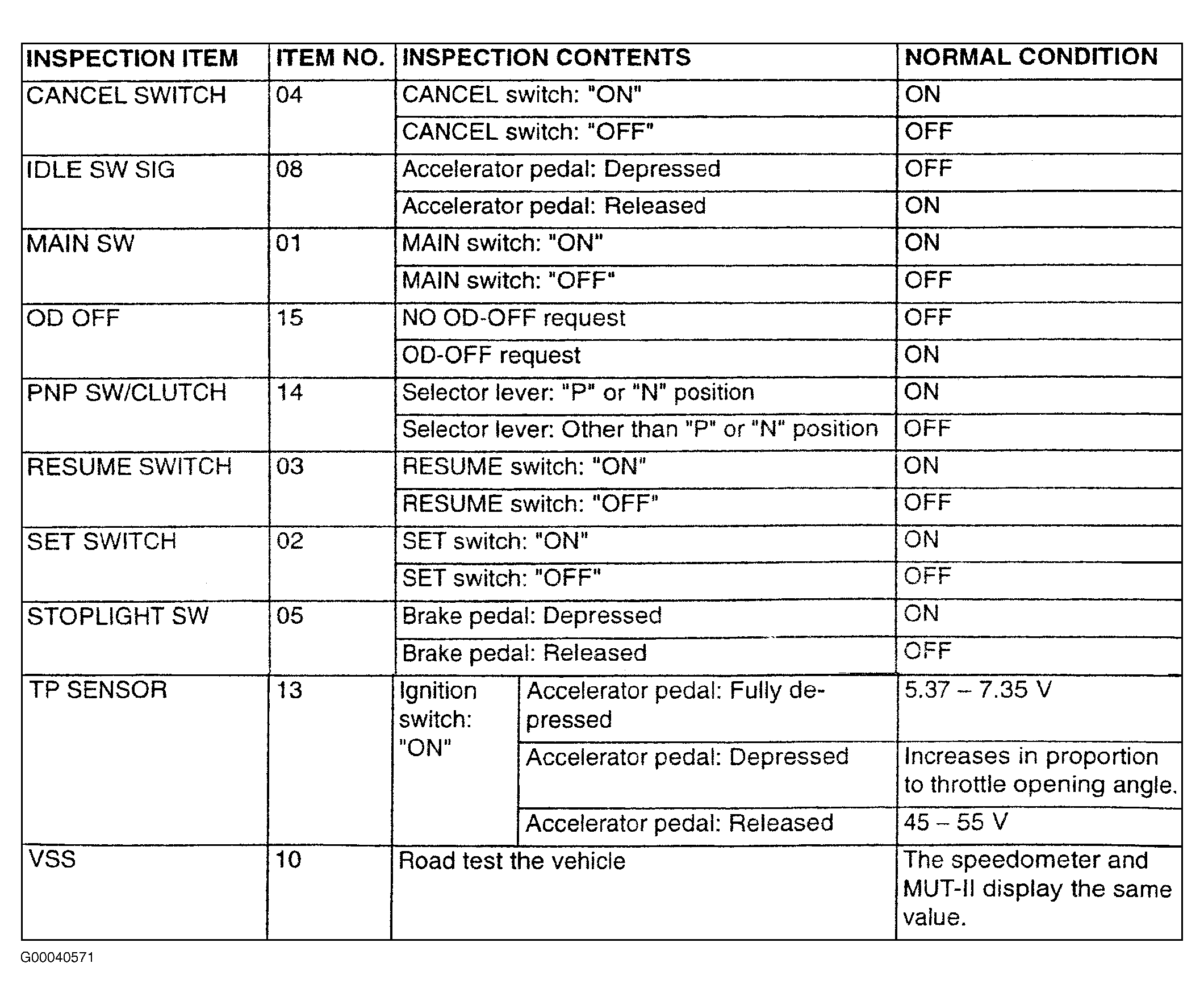

Fig 1: Data List Reference Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
