Traction Control Module

Remove floor console assembly, center air outlet assembly, ashtray air control panel assembly and radio. See Fig 2 and Fig 1 . Remove TCS ECU retaining screws. Remove TCS ECU harness connectors. Installation is reverse of removal.

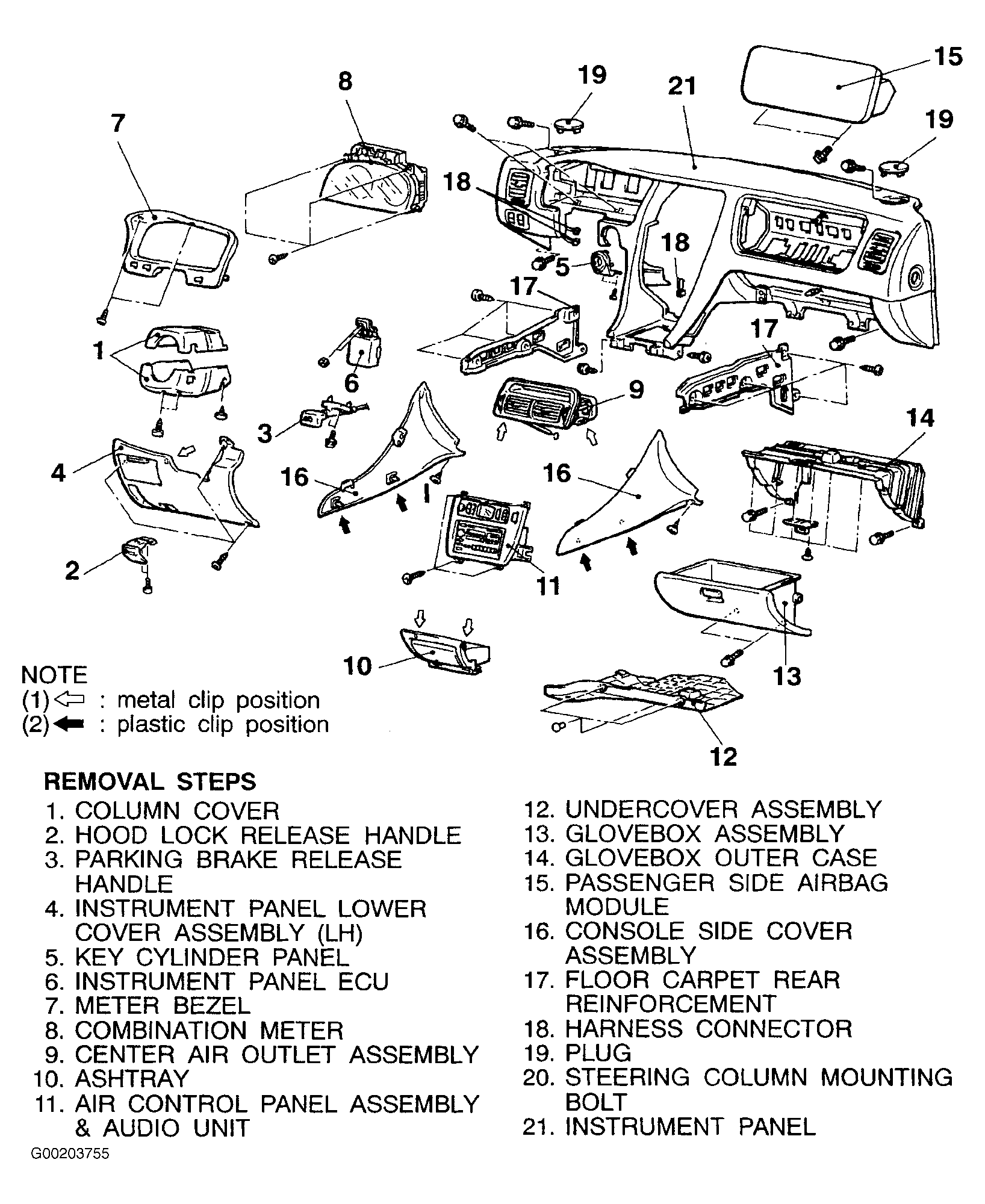

Fig 1: Exploded View Of Center Console & Instrument

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

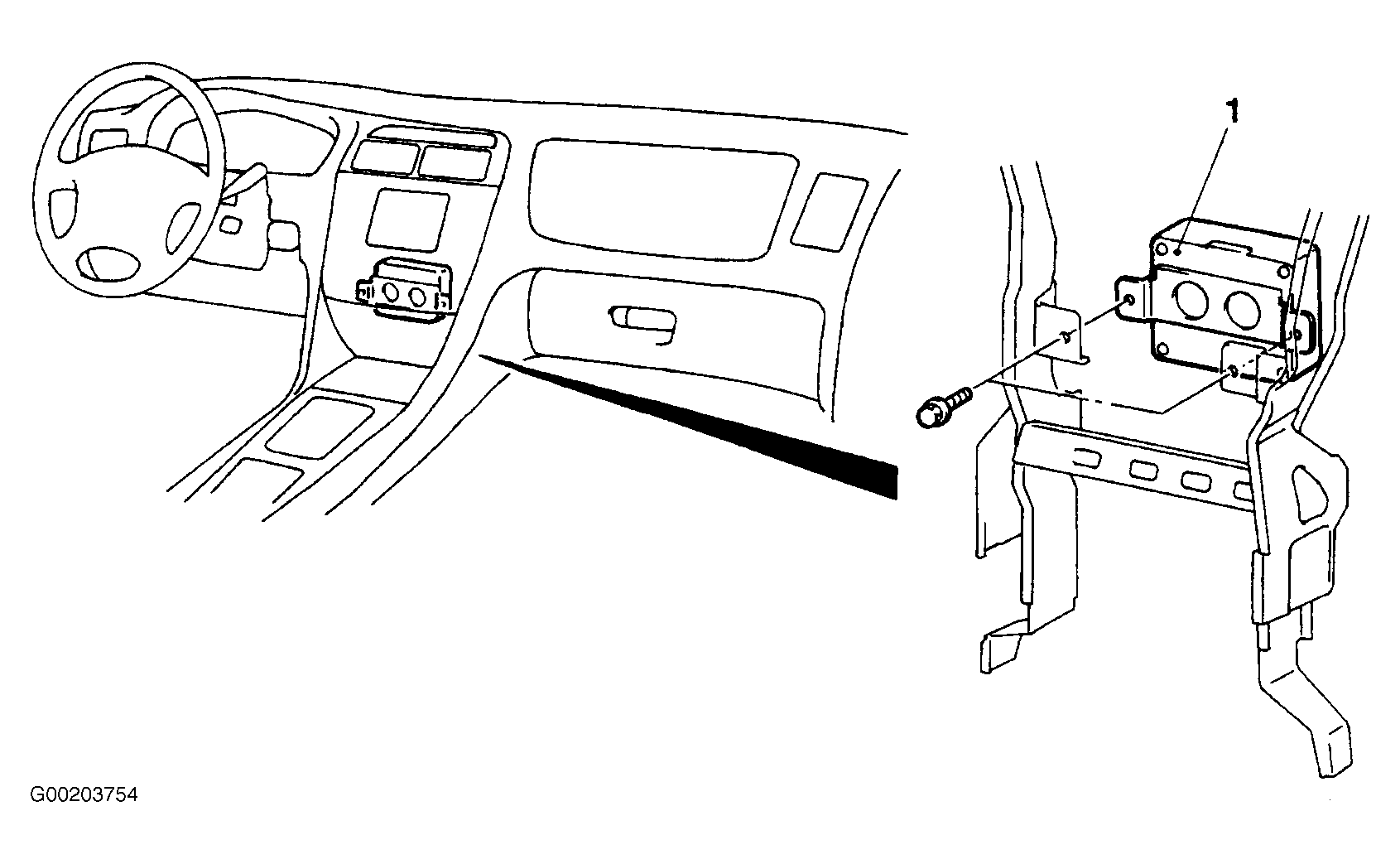

Fig 2: Removing & Replacing TCS ECU

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
