Valve Body Spring Identification

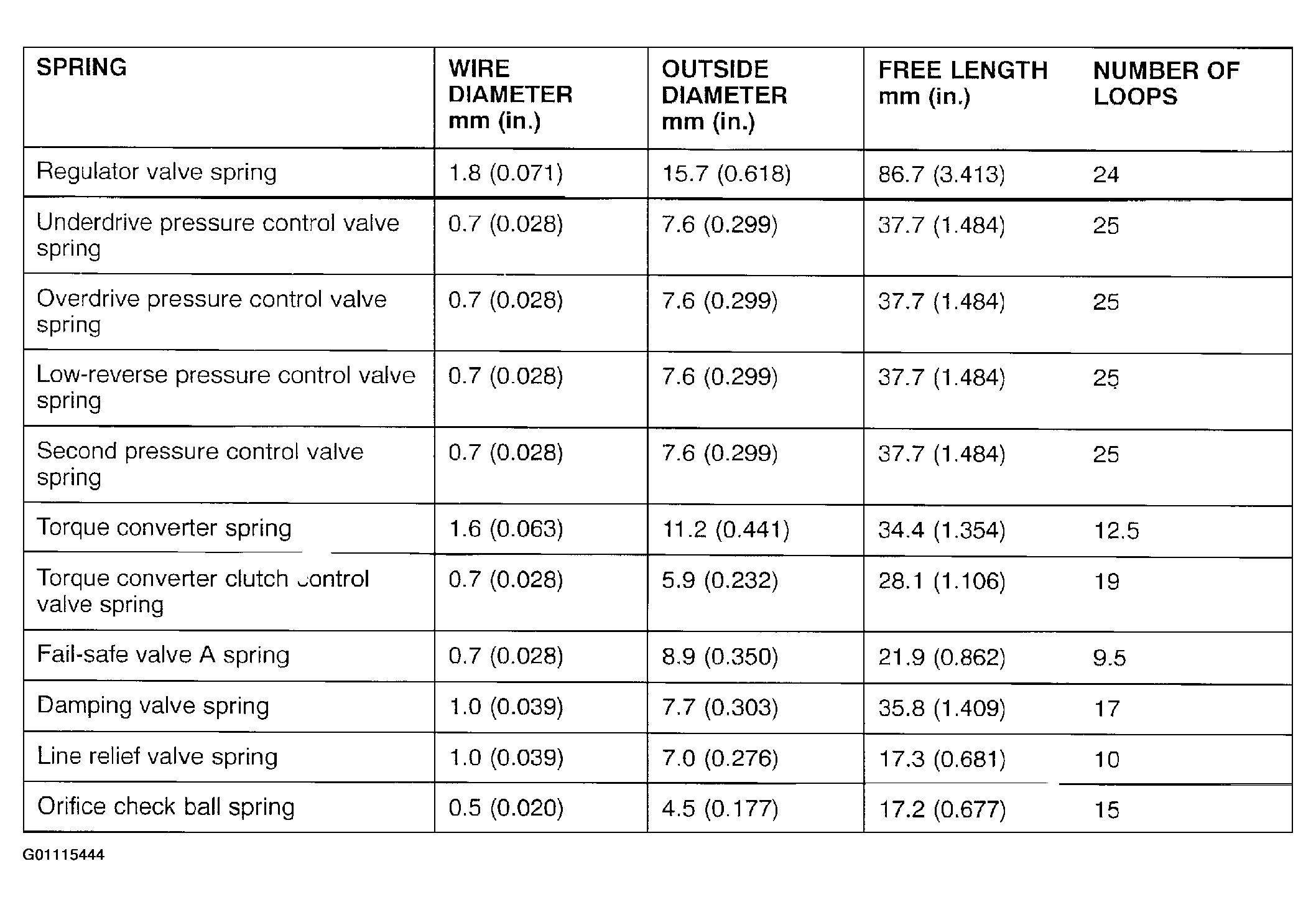

Fig 1: Identifying Valve Body Springs
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
