DTC 38: Stoplight Switch System
›
Notes
DTC 38: Stoplight Switch System: Notes

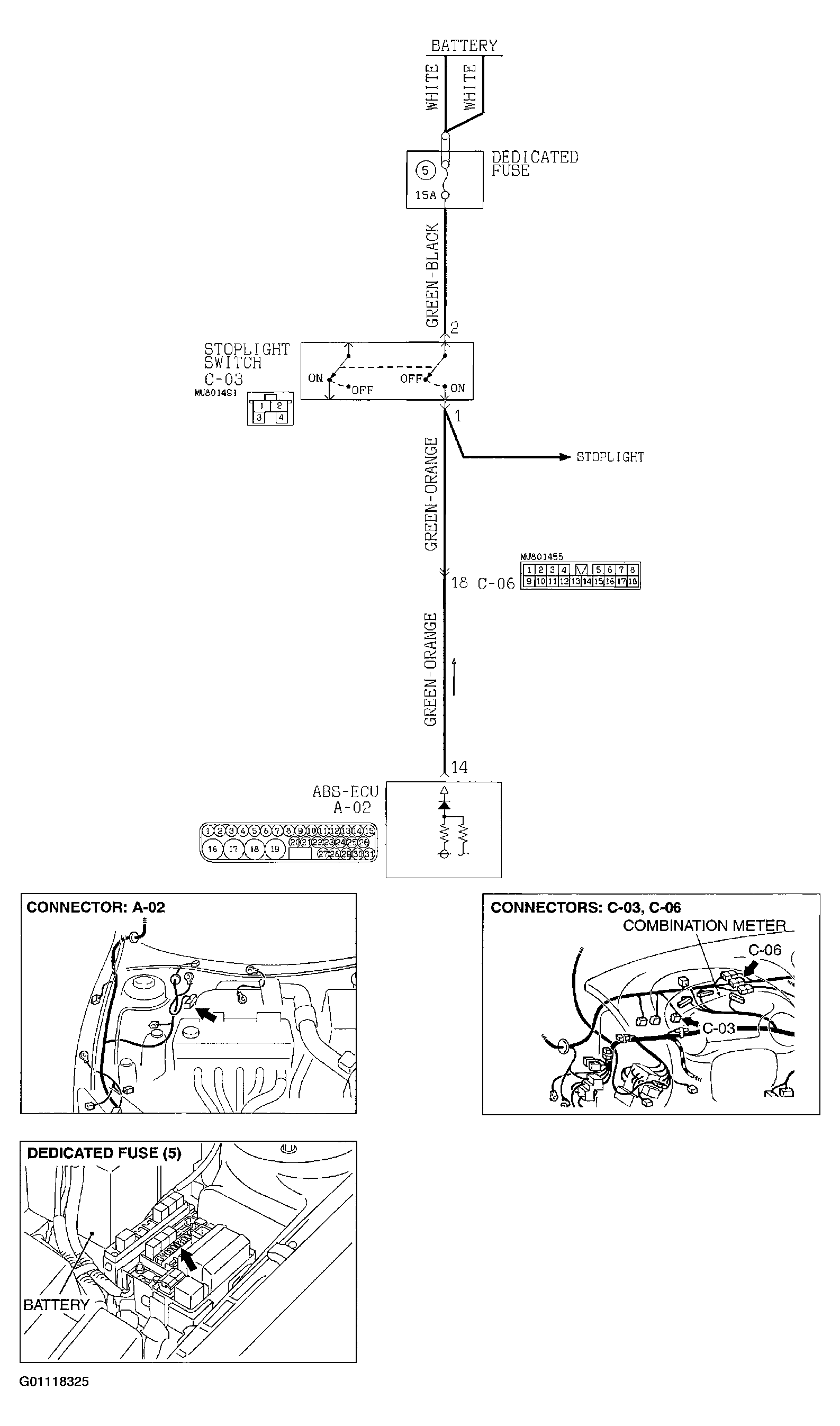

Fig 1: Stoplight Switch System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
